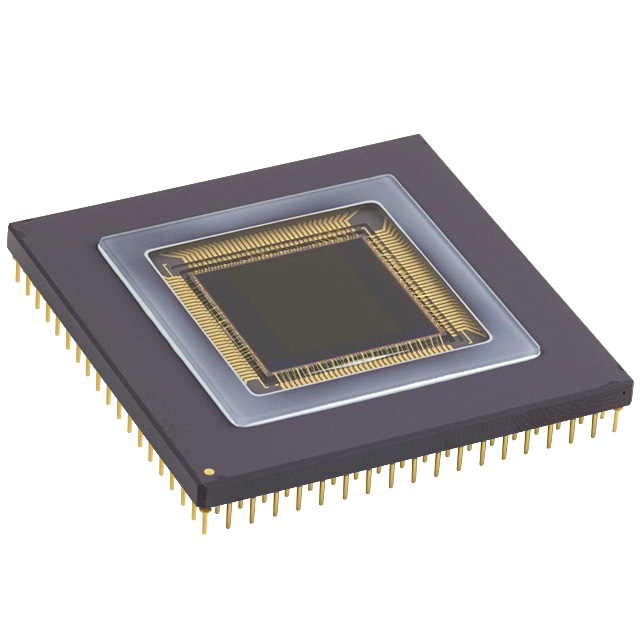

Description: IC SENSOR IMAGE MONO 280-PGA

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

MT9M413 General Description

The MI-MV13 is a 1,280H x 1,024V (1.3 megapixel) CMOS digital image sensor capable of 500 frames-persecond (fps) operation. Its TrueSNAP™ electronic shutter allows simultaneous exposure of the entire pixel array. Available in color or monochrome, the sensor has on-chip 10-bit analog-to-digital converters (ADCs), which are self-calibrating, and a fully digital interface. The chip's input clock rate is 66 MHz at approximately 500 fps, providing compatibility with many off-the shelf interface components.

The sensor has ten 10-bit-wide digital output ports. Its open architecture design provides access to internal operations. ADC timing and pixel-read control are integrated on-chip. At 60 fps, the sensor dissipates less than 150mW, and at 500 fps less than 500mW; it operates on a 3.3V supply. Pixel size is 12 microns square, and digital responsivity is 1,600 bits per lux-second.

MT9M413 Maximum Ratings

SYMBOL	PARAMETER	VALUE	UNIT
V_pwr	DC Supply Voltage	-0.5 to 3.6	V
V_in	DC Input Voltage	-0.5 to V_pwr + 0.5	V
V_out	DC Output Voltage	-0.5 to V_pwr + 0.5	V
I	DC Current Drain per Pin (Any I/O)	±50	mA
I	DC Current Drain, Vpwr and Vgnd	±100	mA

NOTE:
Vpwr = VDD = VAA = VDD_IO (VDD is supply to digital circuit, VAA to analog circuit). Vgnd = DGND = AGND (DGND is the
ground to the digital circuit, AGND to the analog circuit).

MT9M413 Features

• Array Format: 1,280H x 1,024 V (1,310,720 pixels)
• Pixel Size and Type: 12.0m x 12.0m TrueSNAP (shuttered-node active pixel)
• Sensor Imaging Area: H: 15.36mm, V: 12.29mm, Diagonal: 19.67mm
• Frame Rate: 0500+ fps @ (1,280 x 1,024), >10,000 fps with partial scan, [e.g. 04000 fps @ (1,280 x 128)]
• Output Data Rate: 660 Mbs (master clock 66 MHz, ~500 fps)
• Power Consumption: < 500 mW @ 500 fps; <150 mW @ 60 fps
• Digital Responsivity: Monochrome: 1,600 bits per lux-second @ 550nm; ADC reference @ 1V
• Internal Intra-Scene Dynamic Range: 59dB
• Supply Voltage: +3.3V
• Operating Temperature: -5°C to +60°C
• Output: 10-bit digital through 10 parallel ports
• Conversion Gain = 13V/e-
• Color: Monochrome or color RGB
• Shutter: TrueSNAP freeze-frame electronic shutter
• Shutter Efficiency: >99.9%
• Shutter Exposure Time: 2s to > 33msec
• ADC: On-chip, 10-bit column-parallel
• Package: 280-pin ceramic PGA
• Programmable Controls: Open architecture
On-chip:
    •ADC controls
    •Output multiplexing
    •ADC calibration
Off-chip:
    •Window size and location
    •Frame rate and data rate
    •Shutter exposure time (integration time)
    •ADC reference

MT9M413C36STC Parameters

Technical/Catalog Information	MT9M413C36STC
Vendor	Aptina Imaging
Category	Sensors, Transducers
Pixel Size	12m x 12m
Active Pixel Array	1280H x 1024V
Frames per Second	500
Voltage - Supply	3.3V
Package / Case	280-PGA
Packaging	Bulk
Type	CMOS Imaging
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MT9M413C36STC MT9M413C36STC 557 1152 ND 5571152ND 557-1152

MT9M413C36STM Parameters

Technical/Catalog Information	MT9M413C36STM
Vendor	Aptina Imaging
Category	Sensors, Transducers
Pixel Size	12m x 12m
Active Pixel Array	1280H x 1024V
Frames per Second	500
Voltage - Supply	3.3V
Package / Case	280-PGA
Packaging	Bulk
Type	CMOS Imaging
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	MT9M413C36STM MT9M413C36STM 557 1153 ND 5571153ND 557-1153
