MV8113, MV8141, MV8141.A4R0

MV8113, MV8141, MV8141.A4R0 Selling Leads, Datasheet

MFG:Fairchild Optoelectronics Group  Category:Optoelectronics  Package Cooled:NEW AND ORIGINAL T-1 3/4  D/C:08+/09+

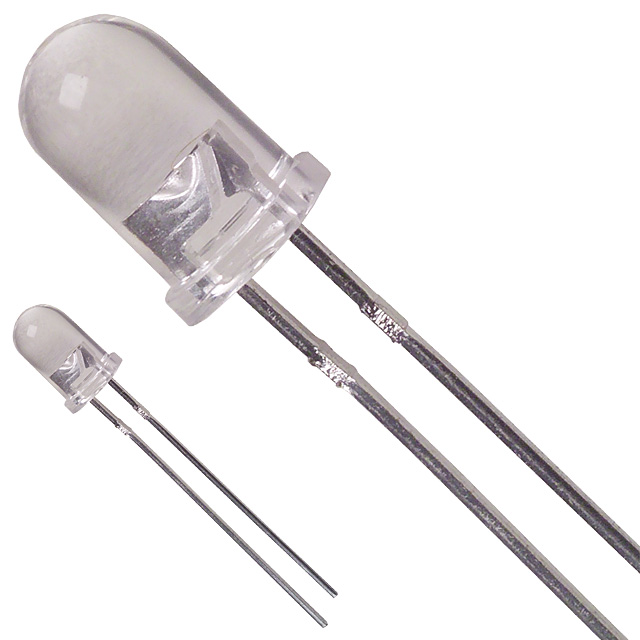

MV8141 Picture

MV8113, MV8141, MV8141.A4R0 Datasheet download

Five Points

Part Number: MV8141

Category: Optoelectronics

MFG: Fairchild Optoelectronics Group

Package Cooled: NEW AND ORIGINAL T-1 3/4

D/C: 08+/09+

Description: LED SS GAA1AS SUP RED CLEAR 5MM






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

MV8113 Suppliers

More MV8113 Suppliers

Select All

About MV8113

PDF/DataSheet Download

Datasheet: MV8113

File Size: 146310 KB

Manufacturer: FAIRCHILD [Fairchild Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

MV8141 Suppliers

More MV8141 Suppliers

Select All

About MV8141

PDF/DataSheet Download

Datasheet: MV8141

File Size: 249207 KB

Manufacturer: FAIRCHILD [Fairchild Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

MV8141.A4R0 Suppliers

More MV8141.A4R0 Suppliers

Select All

About MV8003

PDF/DataSheet Download

Datasheet: MV8003

File Size: 129218 KB

Manufacturer: FAIRCHILD [Fairchild Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

MV8113 Parameters

Technical/Catalog InformationMV8113
VendorFairchild Optoelectronics Group
CategoryOptoelectronics
ColorRed
Lens Style/SizeRound, 5mm, T-1 3/4
Millicandela Rating1500mcd
Voltage - Forward (Vf) Typ1.7V
Wavelength - Dominant660nm
Wavelength - Peak660nm
Current - Test20mA
Viewing Angle12°
Lens TypeClear
Luminous Flux52 mlm
Package / CaseRadial
Mounting TypeThrough Hole
PackagingBulk
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MV8113
MV8113

MV8113 General Description

This T-1 3/4 super bright LED has a narrow viewing angle of 12° for concentrated light output. The MV811X series is made with an AlGaAs LED that emits red light at 660 nm. It is encapsulated in a water clear epoxy lens package.

MV8113 Maximum Ratings

Parameter
Symbol
Rating
Unit
Operating Temperature
TOPR
-40 to +100
Storage Temperature
TSTG
-40 to +100
Lead Soldering Time
TSOL
260 for 5 sec
Continuous Forward Current
IF
30
mA
Peak Forward Current
(f = 1.0 KHz, Duty Factor = 1/10)
IF
200
mA
Reverse Voltage
VR
5
V
Power Dissipation
PD
85
mW

MV8113 Features

• Popular T-1 3/4 package
• Super high brightness suitable for outdoor applications
• Solid state reliability
• Water clear optics
• Standard 100 mil. lead spacing

MV8141 Parameters

Technical/Catalog InformationMV8141
VendorFairchild Optoelectronics Group
CategoryOptoelectronics
ColorRed
Lens Style/SizeRound, 5mm, T-1 3/4
Millicandela Rating370mcd
Voltage - Forward (Vf) Typ1.7V
Wavelength - Dominant660nm
Wavelength - Peak660nm
Current - Test20mA
Viewing Angle40°
Lens TypeClear
Luminous Flux140 mlm
Package / CaseRadial
Mounting TypeThrough Hole
PackagingBulk
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names MV8141
MV8141
