MFG:Murata Power Solutions Inc Category:Power Supplies Package Cooled:SIP4 D/C:06+
NKE0303S, NKE0305DC, NKE0305SC Datasheet download
Category: Power Supplies
MFG: Murata Power Solutions Inc
Package Cooled: SIP4
D/C: 06+
Description: CONV DC/DC 1W 3.3VIN 5V SIP SGL
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: NKE0303S
File Size: 177983 KB
Manufacturer: CANDD [C&D Technologies]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NKE0303
File Size: 177983 KB
Manufacturer: CANDD [C&D Technologies]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NKE0303
File Size: 177983 KB
Manufacturer: CANDD [C&D Technologies]
Download : Click here to Download
The NKE sub-miniature series of DC-DC Converters is particularly suited to isolating and/or converting DC power rails. A smaller package size, improved efficiency, lower output ripple and 3kVDC isolation capability through state of the art packaging and improved technology. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees startup from 40°C and full 1 watt output at 85°C.
Short circuit duration4 |
1 second |
| Internal power dissipation | 550mW |
| Lead temperature 1.5mm from case for 10 seconds | 300 |
| Input voltage VIN , NKA03 types |
5.5V |
| Input voltage VIN , NKA05 types | 7V |
| Input voltage VIN, NKA12 types | 15V |

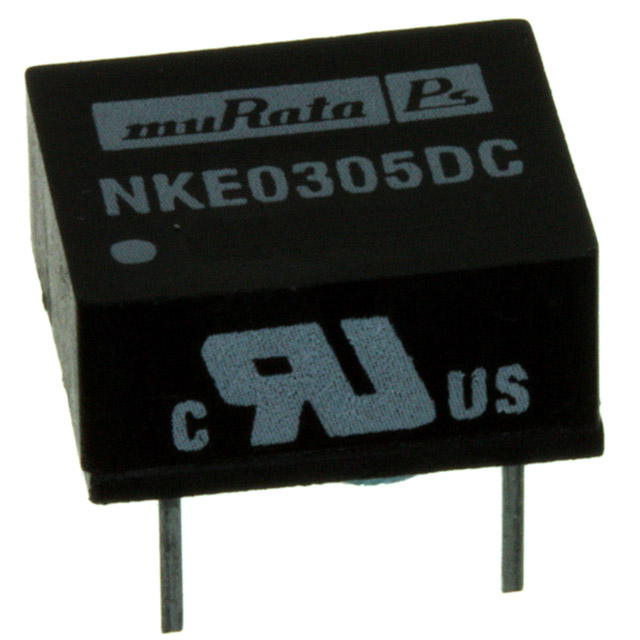

| Technical/Catalog Information | NKE0305DC |
| Vendor | Murata Power Solutions Inc |
| Category | Power Supplies |
| Voltage - Input | 3.3V |
| Output | 5V |
| Power (Watts) | 1W |
| Number of Outputs | 1 |
| 1st Output | 5 VDC @ 200mA |
| 2nd Output | - |
| 3rd Output | - |
| 4th Output | - |
| Type | Isolated |
| Mounting Type | Through Hole |
| Packaging | Tube |
| Package / Case | 8-DIP Module (4 Leads) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NKE0305DC NKE0305DC 811 1429 5 ND 81114295ND 811-1429-5 |
| Technical/Catalog Information | NKE0305SC |
| Vendor | Murata Power Solutions Inc |
| Category | Power Supplies |
| Voltage - Input | 3.3V |
| Output | 5V |
| Power (Watts) | 1W |
| Number of Outputs | 1 |
| 1st Output | 5 VDC @ 200mA |
| 2nd Output | - |
| 3rd Output | - |
| 4th Output | - |
| Type | Isolated |
| Mounting Type | Through Hole |
| Packaging | Tube |
| Package / Case | 4-SIP MODULE |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NKE0305SC NKE0305SC 811 1430 5 ND 81114305ND 811-1430-5 |
