NL7SZ58DFT2G, NL7SZ97DFT2G, NL7WB66 Datasheet download
Category: Integrated Circuits (ICs)
MFG: ON Semiconductor (VA)
Package Cooled: 2008+
D/C: 1900
Description: IC GATE MULTIFUNCT CONF SC-88
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: NL7SZ18
File Size: 91980 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NL7SZ18
File Size: 91980 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NL7WB66
File Size: 88568 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download

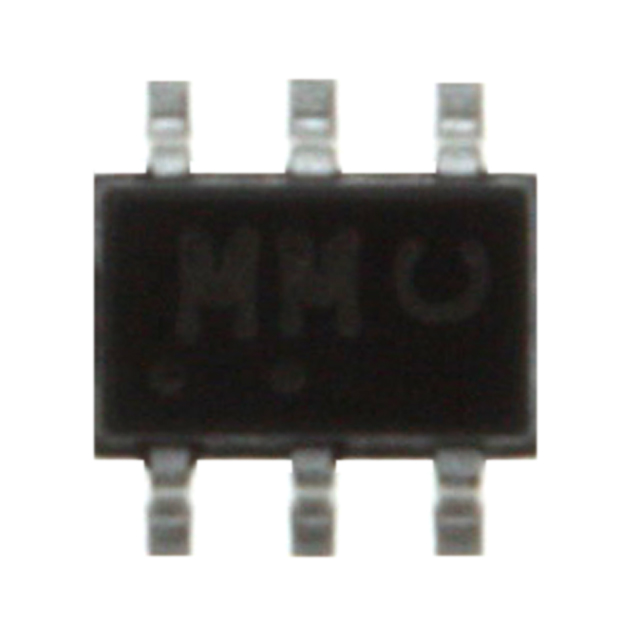

| Technical/Catalog Information | NL7SZ58DFT2G |
| Vendor | ON Semiconductor (VA) |
| Category | Integrated Circuits (ICs) |
| Number of Circuits | 1 - Single |
| Logic Type | Configurable Multiple Function |
| Current - Output High, Low | 32mA, 32mA |
| Output Type | Single-Ended |
| Schmitt Trigger Input | Yes |
| Voltage - Supply | 1.65 V ~ 5.5 V |
| Operating Temperature | -55°C ~ 125°C |
| Number of Inputs | 3 |
| Mounting Type | Surface Mount |
| Package / Case | SC-70-6, SC-88, SOT-323-6, SOT-363 |
| Packaging | Digi-Reel? |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NL7SZ58DFT2G NL7SZ58DFT2G NL7SZ58DFT2GOSDKR ND NL7SZ58DFT2GOSDKRND NL7SZ58DFT2GOSDKR |
| Technical/Catalog Information | NL7SZ97DFT2G |
| Vendor | ON Semiconductor (VA) |
| Category | Integrated Circuits (ICs) |
| Number of Circuits | 1 - Single |
| Logic Type | Configurable Multiple Function |
| Current - Output High, Low | 32mA, 32mA |
| Output Type | Single-Ended |
| Schmitt Trigger Input | Yes |
| Voltage - Supply | 1.65 V ~ 5.5 V |
| Operating Temperature | -55°C ~ 125°C |
| Number of Inputs | 3 |
| Mounting Type | Surface Mount |
| Package / Case | SC-70-6, SC-88, SOT-323-6, SOT-363 |
| Packaging | Digi-Reel? |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NL7SZ97DFT2G NL7SZ97DFT2G NL7SZ97DFT2GOSDKR ND NL7SZ97DFT2GOSDKRND NL7SZ97DFT2GOSDKR |
The NL7WB66 is a very low RON dual SPST analog switch. RON is a of 5 (Typ) at 5.0 V. The device is offered in the very popular low cost US8 package. It is designed as a general purpose dual switch and can be used to switch either analog signals such as audio and video or digital signal such as TTL, CMOS, LVDS, ECL, or complex digital signals such as QPSK.
| Symbol | Parameter | Value | Unit |
| VCC | DC Supply Voltage | -0.5 to +7.0 | V |
| VI | DC Input Voltage | -0.5 to +7.0 | V |
| VO | DC Output Voltage Output in Higher or Low State (Note 1) | -0.5 to +7.0 | V |
| IIK | DC Input Diode Current VI < GND | -50 | mA |
| IOK | DC Output Diode Current VO = GND VO = VCC |
-50 |
mA |
| IOU | DC Output Sink Current | ±50 | mA |
| ICC | DC Supply Current per Supply Pin | ±100 | mA |
| IGND | DC Ground Current per Ground Pin | ±100 | mA |
| TSTG | Storage Temperature Range | -65 to +150 | °C |
| TL | Lead Temperature, 1 mm from Case for 10 Seconds | 260 | °C |
| TJ | Junction Temperature Under Bias | +150 | °C |
| JA | Thermal Resistance SOT- 353 (Note 1) SOT- 553 |
250 | °C/W |
| PD | Power Dissipation in Still Air at 85°C | 250 | mW |
| MSL | Moisture Sensitivity | Level 1 | |
| FR | Flammability Rating Oxygen Index: 28 to 34 | UL 94 V0 @ 0.125 in |
