NLB0136, NLB-300, NLB-300T1

NLB0136, NLB-300, NLB-300T1 Selling Leads, Datasheet

MFG:RFMD  Category:RF and RFID  Package Cooled:QFP  D/C:20

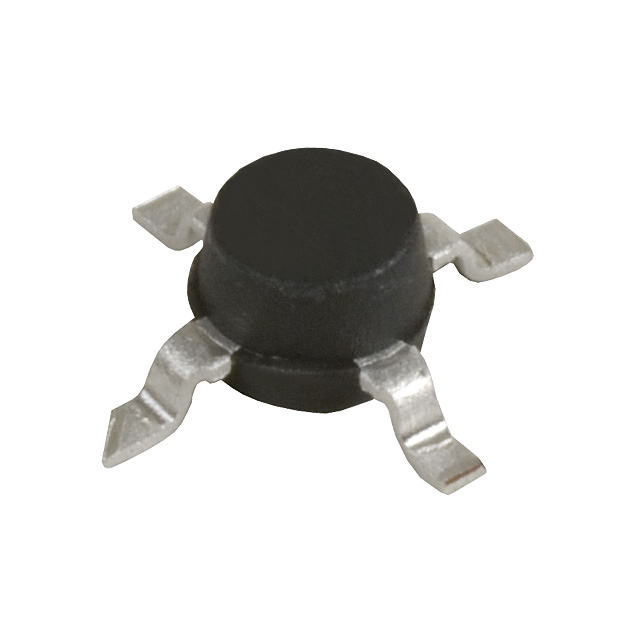

NLB-300T1 Picture

NLB0136, NLB-300, NLB-300T1 Datasheet download

Five Points

Part Number: NLB-300T1

Category: RF and RFID

MFG: RFMD

Package Cooled: QFP

D/C: 20

Description: IC AMP MMIC GAAS 10GHZ 4-MICROX






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

NLB0136 Suppliers

More NLB0136 Suppliers

Select All

  • NLB310

  • Vendor: RFMD D/C: 06+& Qty: 200 Note: Stock & New  Adddate: 2024-03-28
  • Inquire Now
  • Shenzhen Viga Electronics Co.,Ltd   China
    Contact: Ms.Suepan   MSN:tatiana0124@hotmail.com
    Tel: 86-755-33090962 33090963
    Fax: 86-755-33090960
    (0)

About NLB-300

PDF/DataSheet Download

Datasheet: NLB-300

File Size: 209828 KB

Manufacturer: RFMD [RF Micro Devices]

Download : Click here to Download

Related PDF Download

Related Part Number

NLB-300 Suppliers

More NLB-300 Suppliers

Select All

  • NLB310

  • Vendor: RFMD D/C: 06+& Qty: 200 Note: Stock & New  Adddate: 2024-03-28
  • Inquire Now
  • Shenzhen Viga Electronics Co.,Ltd   China
    Contact: Ms.Suepan   MSN:tatiana0124@hotmail.com
    Tel: 86-755-33090962 33090963
    Fax: 86-755-33090960
    (0)

About NLB-300

PDF/DataSheet Download

Datasheet: NLB-300

File Size: 209828 KB

Manufacturer: RFMD [RF Micro Devices]

Download : Click here to Download

Related PDF Download

Related Part Number

NLB-300T1 Suppliers

More NLB-300T1 Suppliers

Select All

  • NLB310

  • Vendor: RFMD D/C: 06+& Qty: 200 Note: Stock & New  Adddate: 2024-03-28
  • Inquire Now
  • Shenzhen Viga Electronics Co.,Ltd   China
    Contact: Ms.Suepan   MSN:tatiana0124@hotmail.com
    Tel: 86-755-33090962 33090963
    Fax: 86-755-33090960
    (0)

About NLB-300

PDF/DataSheet Download

Datasheet: NLB-300

File Size: 209828 KB

Manufacturer: RFMD [RF Micro Devices]

Download : Click here to Download

Related PDF Download

Related Part Number

NLB-300 General Description

The NLB-300 cascadable broadband InGaP/GaAs MMIC amplifier is a low-cost, high-performance solution for general purpose RF and microwave amplification needs. This 50Ω gain block is based on a reliable HBT proprietary MMIC design, providing unsurpassed performance for small-signal applications. Designed with an external bias resistor, the NLB-300 provides flexibility and stability. The NLB-300 is packaged in a low-cost, surface-mount plastic package, providing ease of assembly for high-volume tape-and-reel requirements.

NLB-300 Maximum Ratings

Parameter Rating Unit
RF Input Power
Power Dissipation
Device Current
Channel Temperature
Operating Temperature
Storage Temperature
+20
300
70
200
-45 to +85
-65 to +150
dBm
mW
mA
°C
°C
°C
Exceeding any one or a combination of these limits may cause permanent damage.

NLB-300 Features

• Reliable, Low-Cost HBT Design
• 13.0dB Gain, +11.1dBm P1dB@2GHz
• High P1dB of +14.1dBm@6.0GHz and +12.7dBm@10.0GHz
• Single Power Supply Operation
• 50Ω I/O Matched for High Freq. Use

NLB-300 Typical Application

• Narrow and Broadband Commercial and Military Radio Designs
• Linear and Saturated Amplifiers
• Gain Stage or Driver Amplifiers for MWRadio/Optical Designs (PTP/PMP/ LMDS/UNII/VSAT/WLAN/Cellular/DWDM)

NLB-300T1 Parameters

Technical/Catalog InformationNLB-300T1
VendorRFMD
CategoryRF and RFID
Package / Case4-Micro-X
Voltage - Supply3.6V ~ 4.2V
Current - Supply50mA
Gain8.5db ~ 8.9dB @ 6GHz ~ 10GHz
Frequency0Hz ~ 10GHz
RF TypeLMDS, VSAT, WLAN, UNII, DWDM, PTP PMP
PackagingTape & Reel (TR)
Noise Figure4.9dB @ 3GHz
P1db14.1dBm @ 6GHz
Test Frequency-
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names NLB 300T1
NLB300T1
689 1003 2 ND
68910032ND
689-1003-2
