MFG:ON Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:2008+ D/C:12750
NSBC123JPDXV6T5G, NSBC124EPDXV6T1G, NSBC143EDXV6T1 Datasheet download
Category: Discrete Semiconductor Products
MFG: ON Semiconductor (VA)
Package Cooled: 2008+
D/C: 12750
Description: TRANS BR NPN/PNP DUAL 50V SOT563
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: NSB1010XV5
File Size: 49152 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NSB1010XV5
File Size: 49152 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
PDF/DataSheet Download
Datasheet: NSB1010XV5
File Size: 49152 KB
Manufacturer: ON SEMICONDUCTOR
Download : Click here to Download
| Technical/Catalog Information | NSBC123JPDXV6T5G |
| Vendor | ON Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 500mW |
| Resistor - Base (R1) (Ohms) | 2.2K |
| Resistor - Emitter Base (R2) (Ohms) | 47K |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300A, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 10V |
| Frequency - Transition | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563 |
| Packaging | Cut Tape (CT) |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NSBC123JPDXV6T5G NSBC123JPDXV6T5G NSBC123JPDXV6T5GOSCT ND NSBC123JPDXV6T5GOSCTND NSBC123JPDXV6T5GOSCT |

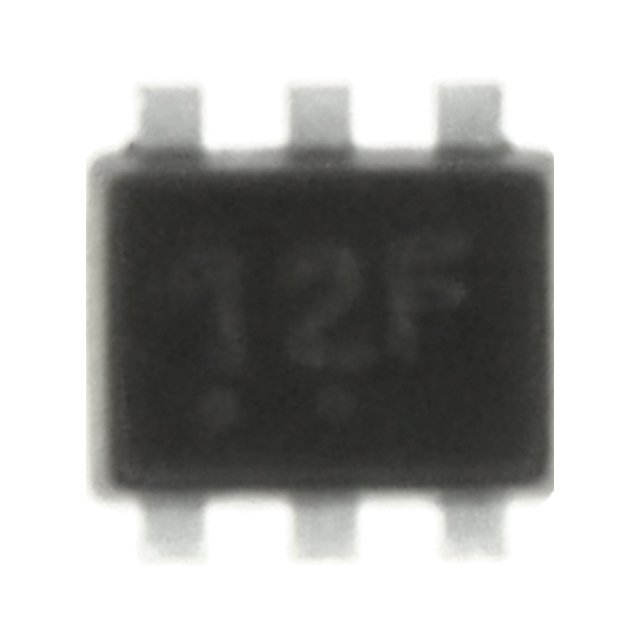

| Technical/Catalog Information | NSBC124EPDXV6T1G |
| Vendor | ON Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 500mW |
| Resistor - Base (R1) (Ohms) | 22K |
| Resistor - Emitter Base (R2) (Ohms) | 22K |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300A, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 10V |
| Frequency - Transition | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-563 |
| Packaging | Digi-Reel? |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NSBC124EPDXV6T1G NSBC124EPDXV6T1G NSBC124EPDXV6T1GOSDKR ND NSBC124EPDXV6T1GOSDKRND NSBC124EPDXV6T1GOSDKR |
