OP24GP, OP250, OP250G

Table of contents:
Info of OP24GP
Info of OP250
Info of OP250G

OP24GP, OP250, OP250G Selling Leads, Datasheet

MFG:TT Electronics/Optek Technology (VA) Category:Optoelectronics Package Cooled:PMI D/C:N/A

OP24GP, OP250, OP250G Datasheet download

Five Points

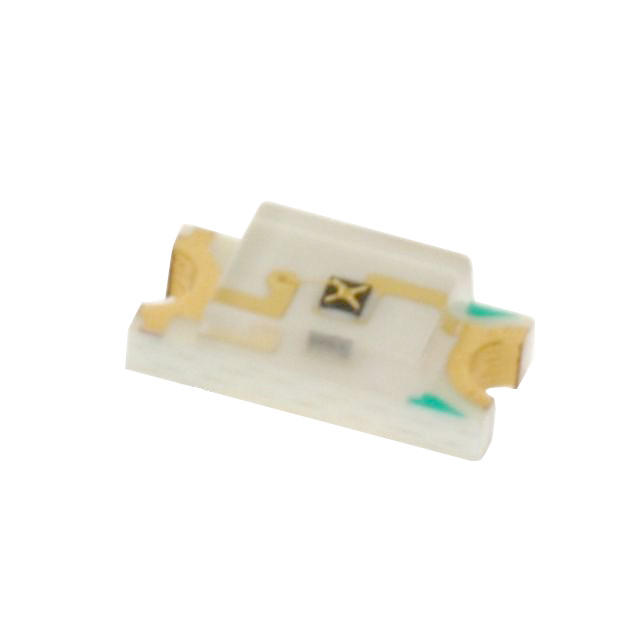

Part Number: OP250

Category: Optoelectronics

MFG: TT Electronics/Optek Technology (VA)

Package Cooled: PMI

D/C: N/A

Description: LED IR 880NM FLAT LENS 1206 SMD

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

OP250 Parameters

Technical/Catalog Information	OP250
Vendor	TT Electronics/Optek Technology (VA)
Category	Optoelectronics
Voltage - Forward (Vf) Typ	1.5V
Current - DC Forward (If)	50mA
Wavelength	890nm
Viewing Angle	100°
Radiant Intensity (Ie) Min @ If	-
Mounting Type	Surface Mount
Package / Case	1206 Dome Lens
Orientation	Top View
Packaging	Cut Tape (CT)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	OP250 OP250 365 1148 1 ND 36511481ND 365-1148-1

OP250 General Description

The OP250 and OP450 are dual and quad CMOS single-supply,amplifiers featuring rail-to-rail inputs and outputs. Both are guaranteed to operate from a +2.7 V to +5 V single supply.

These amplifiers have very low input bias currents. Outputs are capable of driving 100 mA loads and are stable with capacitive loads. Supply current is less than 1 mA per amplifier.

Applications for these amplifiers include portable medical equipment, safety and security, and interface to transducers
with high output impedance.

The ability to swing rail-to-rail at both the input and output enables designers to build multistage filters in single-supply systems and maintain high signal-to-noise ratios. The OP250 and OP450 are specified over the extended industrial (40°C to +125°C) temperature range.

The OP250, dual, is available in 8-lead TSSOP and SO surface mount packages. The OP450, quad, is available in 14-lead thin shrink small outline (TSSOP) and narrow 14-lead SO packages.

OP250 Maximum Ratings

ABSOLUTE MAXIMUM RATINGS1,
Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .+6 V
Input Voltage2 . . . . . . . . . . . . . . . . . . . . . . . . . . GND to VS
Common-Mode Input Voltage . . . . . . . . . . . . . . . . . . . ±6 V
Output Short-Circuit
Duration to GND . . . . . . . . . . . . . Observe Derating Curves
ESD Susceptibility . . . . . . . . . . . . . . . . . . . . . . . . . . 2000 V
Storage Temperature Range
S, RU Package . . . . . . . . . . . . . . . . . . . . . 265°C to +150°C
Operating Temperature Range
OP250G/OP450G . . . . . . . . . . . . . . . . . . 240°C to +125°C
Junction Temperature Range
S, RU Package . . . . . . . . . . . . . . . . . . . . .265°C to +150°C
Lead Temperature Range (Soldering, 60 sec) . . . . +300°C

OP250 Features

Single-Supply Operation: 2.7 V to 6 V
High Output Current: 6100 mA
Low Supply Current: 800 mA/Amp
Wide Bandwidth: 1 MHz
Slew Rate: 2.2 V/s
No Phase Reversal
Low Input Currents
Unity Gain Stable

OP250 Connection Diagram
