OPF370A, OPF372A, OPF482

OPF370A, OPF372A, OPF482 Selling Leads, Datasheet

MFG:TT Electronics/Optek Technology  Category:Optoelectronics  Package Cooled:DIP  D/C:08+

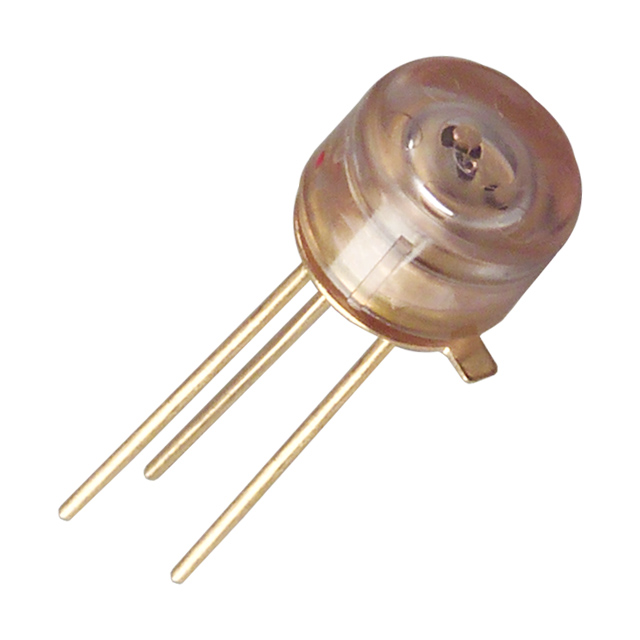

OPF370A Picture

OPF370A, OPF372A, OPF482 Datasheet download

Five Points

Part Number: OPF370A

Category: Optoelectronics

MFG: TT Electronics/Optek Technology

Package Cooled: DIP

D/C: 08+

Description: PHOTODIODE FBR-OPT HS PIN (AT&T)






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

OPF370A Suppliers

More OPF370A Suppliers

Select All

  • OPF372A

  • Qty: 2610 Note: original part  Adddate: 2024-03-29
  • Inquire Now
  • Forever Elec Co.Ltd   China
    Contact: Ms.Caroline   MSN:yjzy-2008@homtmail.com
    Tel: 86-10-82117278
    Fax: 86-10-82111860
    (13)

About OPF370A

PDF/DataSheet Download

Datasheet: OPF370A

File Size: 2852248 KB

Manufacturer: OPTEK [OPTEK Technologies]

Download : Click here to Download

Related PDF Download

Related Part Number

OPF372A Suppliers

More OPF372A Suppliers

Select All

  • OPF372A

  • Qty: 2610 Note: original part  Adddate: 2024-03-29
  • Inquire Now
  • Forever Elec Co.Ltd   China
    Contact: Ms.Caroline   MSN:yjzy-2008@homtmail.com
    Tel: 86-10-82117278
    Fax: 86-10-82111860
    (13)
  • OPF372A

  • Qty: 2610 Note: original part  Adddate: 2024-03-29
  • Inquire Now
  • Forever Elec Co.Ltd   China
    Contact: Ms.Caroline   MSN:yjzy-2008@homtmail.com
    Tel: 86-10-82117278
    Fax: 86-10-82111860
    (13)

About OPF372A

PDF/DataSheet Download

Datasheet: OPF372A

File Size: 4110839 KB

Manufacturer: OPTEK [OPTEK Technologies]

Download : Click here to Download

Related PDF Download

Related Part Number

OPF482 Suppliers

More OPF482 Suppliers

Select All

  • OPF372A

  • Qty: 2610 Note: original part  Adddate: 2024-03-29
  • Inquire Now
  • Forever Elec Co.Ltd   China
    Contact: Ms.Caroline   MSN:yjzy-2008@homtmail.com
    Tel: 86-10-82117278
    Fax: 86-10-82111860
    (13)

About OPF1402

PDF/DataSheet Download

Datasheet: OPF1402

File Size: 494354 KB

Manufacturer: OPTEK [OPTEK Technologies]

Download : Click here to Download

Related PDF Download

Related Part Number

OPF370A Parameters

Technical/Catalog InformationOPF370A
VendorTT Electronics/Optek Technology
CategoryOptoelectronics
Connector Type-
Current - DC Forward (If)100mA
Voltage - Forward (Vf) Typ2V
Voltage - DC Reverse (Vr) (Max)1V
Wavelength850nm
Spectral Bandwidth35nm
Capacitance-
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names OPF370A
OPF370A
365 1026 ND
3651026ND
365-1026

OPF370A General Description

The OPF370 series LED provides fiber optic users with high coupled power and wide bandwidth in a low cost package.

The LED!s are designed to interface with multimode optical fibers from 50/125 to 200/300 microns.

OPF370A Maximum Ratings

Reverse Voltage. 1.0 V
Continuous For ward Current. 100 mA(4)
Storage Tem perature Range -55 to +115
Operating Tem perature Range -40 to +100
Lead Sol dering Tem perature [1/16 inch (1.6 mm) from case for 5 sec. with sol deringiron] 240(1)


Notes:
(1) RMA flux is recommended.  Duration can be extended to 10 sec. max when flow soldering.
(2) Graded index fiber, 50 mm core, N.A. = 0.20.
(3) To convert radiant power output to dBm, use the following expression:  dBm = 10 log (mW/1000).
(4) Derate linearly @ 1.0 mA/ above 25.
(5) Prebias @ 5 mA current.
     LED Burn-in
All LED's are subject to 100% burn-in testing.  Test conditions are 96 hours at 100 mA continuous current in 25 ambient.

OPF370A Features

·Electrically isolated plastic cap package
·High radiant output for fiber optic applications
·High speed
·Designed to self align in the 0.228 inch diameter bore of standard fiber optic receptacles.  Press fit simplifies component installation.

OPF372A General Description

The OPF372 series LED consists of a low cost plastic cap LED, pre-mounted and aligned in an ST* receptacle. This configuration is designed for PC board or panel mounting. Includes lock washer and jam nut, two 2-56 screws, and a dust cap.

The LED's are designed to interface with multimode optical fibers from 50/125 to 200/300 microns.

OPF372A Maximum Ratings

Reverse Voltage. 1.0 V
Continuous For ward Current. 100 mA(4)
Storage Tem perature Range -55 to +100
Operating Tem perature Range -40 to +85
Lead Sol dering Tem perature [1/16 inch (1.6 mm) from case for 5 sec. with sol deringiron] 240(1)



Notes:
(1) RMA flux is recommended. Duration can be extended to 10 sec. max when flow soldering.
(2) Graded index fiber, 50 mm core, N.A. = 0.20.
(3) To convert radiant power output to dBm, use the following expression dBm = 10 log (mW/1000).
(4) Derate linearly @ 1.0 mA/ above 25.
(5) Prebias @ 5 mA current.
LED Burn-in
All LED's are subject to 100% burn-in testing. Test conditions are 96 hours at 100 mA continuous current in 25 ambient.

OPF372A Features

·Component pre-mounted and ready to use
·Pre-tested with fiber to assure performance
·Popular ST* style receptacle

OPF482 Parameters

Technical/Catalog InformationOPF482
VendorTT Electronics/Optek Technology
CategoryOptoelectronics
ApplicationsGeneral Purpose
Voltage - Supply-
Data Rate-
Power - Minimum Receivable-
Current - Supply5nA
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names OPF482
OPF482
365 1030 ND
3651030ND
365-1030
