MFG:TT Electronics/Optek Technology Category:Isolators Package Cooled:N/A D/C:07+

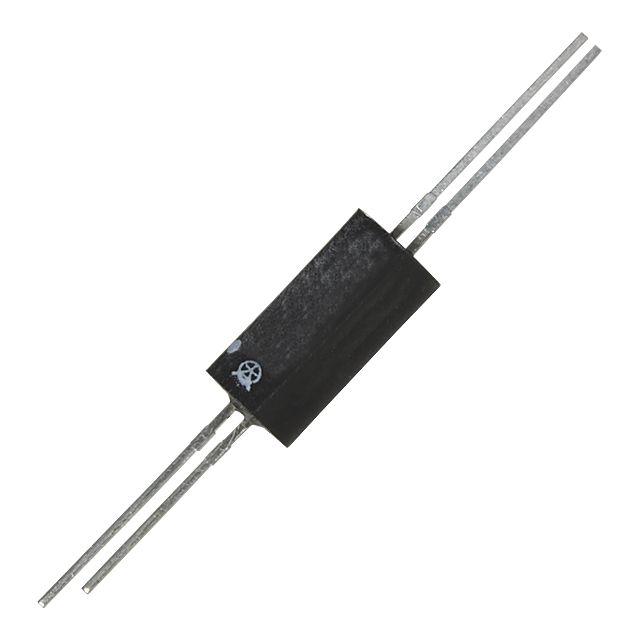

OPI1264B, OPI1264C, OPI1268 Datasheet download
Category: Isolators
MFG: TT Electronics/Optek Technology
Package Cooled: N/A
D/C: 07+
Description: ISOLATOR OPTICALLY COUPLED 125MA
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: OPI1264B
File Size: 254557 KB
Manufacturer: OPTEK [OPTEK Technologies]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: OPI1264C
File Size: 254557 KB
Manufacturer: OPTEK [OPTEK Technologies]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: OPI1268
File Size: 244790 KB
Manufacturer: OPTEK [OPTEK Technologies]
Download : Click here to Download
| Technical/Catalog Information | OPI1264B |
| Vendor | TT Electronics/Optek Technology |
| Category | Isolators |
| Voltage - Isolation | 10000Vrms |
| Input Type | DC |
| Output Type | Transistor |
| Current - Output / Channel | - |
| Voltage - Output | 30V |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Min) | 50% @ 10mA |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Packaging | Bulk |
| Number of Circuits | 1 - Single |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | OPI1264B OPI1264B 365 1032 ND 3651032ND 365-1032 |
| Technical/Catalog Information | OPI1264C |
| Vendor | TT Electronics/Optek Technology |
| Category | Isolators |
| Voltage - Isolation | 10000Vrms |
| Input Type | DC |
| Output Type | Transistor |
| Current - Output / Channel | - |
| Voltage - Output | 30V |
| Vce Saturation (Max) | 400mV |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Mounting Type | Through Hole |
| Package / Case | Axial |
| Packaging | Bulk |
| Number of Circuits | 1 - Single |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | OPI1264C OPI1264C 365 1033 ND 3651033ND 365-1033 |
| Storage Temperature | -40 to +100 |
| Operating Temperature | -40 to +100 |
| Input-to-Output Isolation Voltage | 16KVDC(2) |
| Lead Soldering Temperature (1/16" (1.6mm) from case for 5 seconds with soldering iron) | 260 (1) |
| LED | |
| Forward Current | 50 mA |
| Peadk Forward currnet (2 s pulse width, 0.1% Duty Cycle) | 3.0 A |
| Reverse DC Voltage | 3.0 V |
| Power Dissipation | 100 mW |
| Output IC Photologic® | |
| Supply Voltage Range | -0.5V to 7.0V |
| Output Voltage Range | -0.5V to 18.0V |
| Output Current | 25 mA |
| Power Dissipation | 40 mW |
