MFG:ON Semiconductor (VA) Category:Circuit Protection Package Cooled:DO-214A D/C:06+
P6SMB200CA, P6SMB20A, P6SMB20AT3 Datasheet download
Category: Circuit Protection
MFG: ON Semiconductor (VA)
Package Cooled: DO-214A
D/C: 06+
Description: TVS ZENER UNIDIR 600W 20V SMB
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: P6SMB200CA
File Size: 68598 KB
Manufacturer: CENTRAL [Central Semiconductor Corp]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: P6SMB20A
File Size: 73034 KB
Manufacturer: MOTOROLA [Motorola, Inc]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: P6SMB20AT3
File Size: 70026 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download

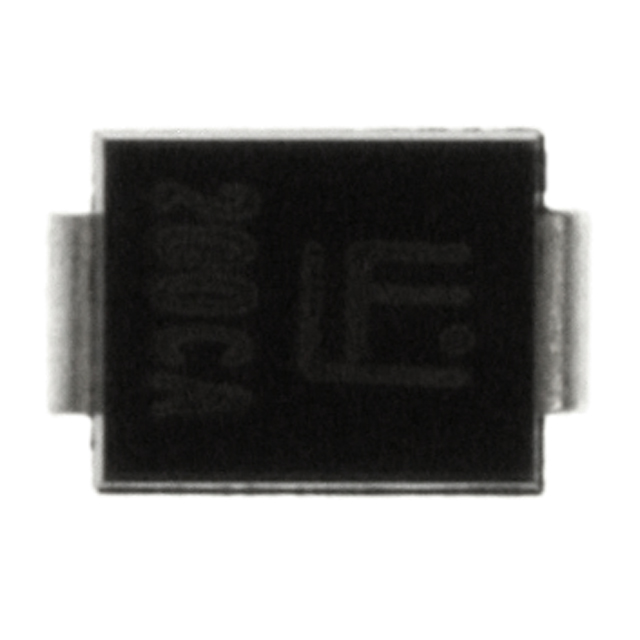

| Technical/Catalog Information | P6SMB200CA |
| Vendor | Littelfuse Inc |
| Category | Circuit Protection |
| Package / Case | DO-214AA, SMB |
| Packaging | Tape & Reel (TR) |
| Polarization | Bidirectional |
| Power (Watts) | 600W |
| Voltage - Reverse Standoff (Typ) | 171V |
| Voltage - Breakdown | 190V |
| Lead Free Status | Lead Free Compliant by Exemption |
| RoHS Status | RoHS Compliant |
| Other Names | P6SMB200CA P6SMB200CA P6SMB200CALFTR ND P6SMB200CALFTRND P6SMB200CALFTR |
The CENTRAL SEMICONDUCTOR P6SMB6.8CA Series types are Surface Mount Bi-Directional Glass Passivated Junction Transient Voltage Suppressors designed to protect voltage sensitive components from high voltage transients. THIS DEVICE IS MANUFACTURED WITH A GLASS PASSIVATED CHIP FOR OPTIMUM RELIABILITY.
| RATING | SYMBOL | VALUE | UNITS |
| Peak Power Dissipation | PPM | 600 | W |
| Forward Surge Current (JEDEC Method) Operating and Storage |
IFSM | 100 | A |
| Junction Temperature | TJ, TSTG | -65 to +150 | °C |
| Technical/Catalog Information | P6SMB20A |
| Vendor | Littelfuse Inc |
| Category | Circuit Protection |
| Package / Case | DO-214AA, SMB |
| Packaging | Tape & Reel (TR) |
| Polarization | Unidirectional |
| Power (Watts) | 600W |
| Voltage - Reverse Standoff (Typ) | 17.1V |
| Voltage - Breakdown | 19V |
| Drawing Number | * |
| Lead Free Status | Lead Free Compliant by Exemption |
| RoHS Status | RoHS Compliant |
| Other Names | P6SMB20A P6SMB20A P6SMB20ALFTR ND P6SMB20ALFTRND P6SMB20ALFTR |
| Technical/Catalog Information | P6SMB20AT3 |
| Vendor | ON Semiconductor (VA) |
| Category | Circuit Protection |
| Package / Case | DO-214AA, SMB |
| Packaging | Digi-Reel? |
| Polarization | Unidirectional |
| Power (Watts) | 600W |
| Voltage - Reverse Standoff (Typ) | 17.1V |
| Voltage - Breakdown | 19V |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | P6SMB20AT3 P6SMB20AT3 P6SMB20AT3OSDKR ND P6SMB20AT3OSDKRND P6SMB20AT3OSDKR |
