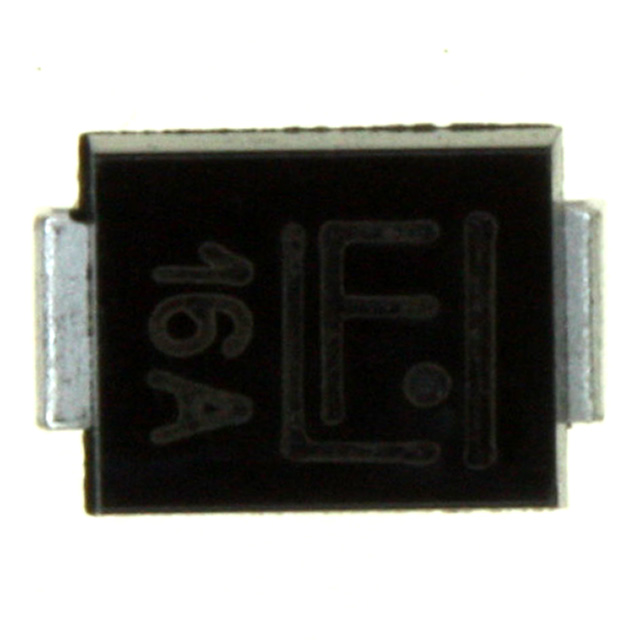

P6SMB16AT3 Product Image

P6S Series Datasheet download

Five Points

Part Number: P6SMB16AT3



MFG: ON



D/C: 06+

Description: The SMB series is designed to protect voltage sensitive components from high voltage, high energy tran...


Urgent Purchase

P6SMB16AT3 General Description


The SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMB series is supplied in ON Semiconductor's exclusive, cost-effective, highly reliable SurmeticE package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.

P6SMB16AT3 Maximum Ratings

RATING SYMBOL VALUE UNITS
Peak Power Dissipation (Note 1.) @ TL = 25°C, Pulse Width = 1 ms PPK 600 W
DC Power Dissipation @ TL = 75°C
Measured Zero Lead Length (Note 2.)
Derate Above 75°C
Thermal Resistance from Junction to Lead		 PD

RJL		 3.0
40
25		 W
mW/°C
°C/W
DC Power Dissipation (Note 3.) @ TA = 25°C
Derate Above 25°C
Thermal Resistance from Junction to Ambient		 PD

RJA		 0.55
4.4
226		 W
mW/°C
°C/W
Forward Surge Current (Note 4.) @ TA = 25°C IFSM 100 A
Operating and Storage Temperature Range TJ, TSTG -65 to +150 °C
1. 10 X 1000 s, nonrepetitive
2. 1, square copper pad, FR4 board
3. FR4 board, using ON Semiconductor minimum recommended footprint, as shown in 403A case outline dimensions spec.
4. 1/2 sine wave (or equivalent square wave), PW = 8.3 ms, duty cycle = 4 pulses per minute maximum.

P6SMB16AT3 Features

• Working Peak Reverse Voltage Range 5.8 to 171 V
• Standard Zener Breakdown Voltage Range 6.8 to 200 V
• Peak Power 600 Watts @ 1 ms
• ESD Rating of Class 3 (>16 KV) per Human Body Model
• Maximum Clamp Voltage @ Peak Pulse Current
• Low Leakage < 5 mA Above 10 V
• UL 497B for Isolated Loop Circuit Protection
• Response Time is Typically < 1 ns

P6SMB16AT3 Connection Diagram

P6SMB16AT3 Connection Diagram

P6SMB16AT3 datasheet

P6SMB16AT3
PDF/DataSheet Download
