PA02A, PA02A-00, PA02A-9 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Cirrus Logic Inc
Package Cooled: CAN
D/C: 68

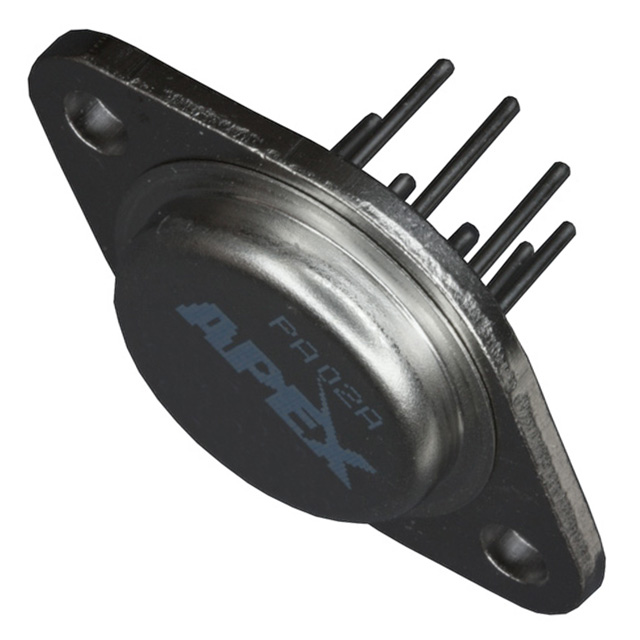

Description: OP AMP 38V 5A 8P TO-3-8 CE
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: PA02A
File Size: 57413 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PA01
File Size: 62439 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PA01
File Size: 62439 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | PA02A |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | TO-3-8 |
| Slew Rate | 20 V/s |
| Gain Bandwidth Product | 4.5MHz |
| Current - Supply | 27mA |
| Current - Output/Channel | 5A |
| Voltage - Supply, Single/Dual (±) | 14 V ~ 38 V, ±7 V ~ 19 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 25pA |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Input Offset | 1000V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | PA02A PA02A 598 1287 ND 5981287ND 598-1287 |
The PA02 and PA02A are wideband, high output current operational amplifiers designed to drive resistive, inductive and capacitive loads. Their complementary "collector output"stage can swing close to the supply rails and is protected against inductive kickback. For optimum linearity, the output stage is biased for class A/B operation. The safe operating area (SOA) can be observed for all operating conditions by selection of user programmable, current limiting resistors(down to 10mA). Both amplifiers are internally compensated but are not recommended for use as unity gain followers. For continuous operation under load, mounting on a heatsink of proper rating is recommended.
These hybrid integrated circuits utilize thick film (cermet)resistors, ceramic capacitors and semiconductor chips to maximize reliability, minimize size and give top performance.Ultrasonically bonded aluminum wires provide reliable inter-connections at all operating temperatures. The 8-pin TO-3package is hermetically sealed and electrically isolated.Isolation washers are not recommended. The use of com-pressible thermal washers and/or improper mounting torque will void the product warranty. Please see "General Operating Considerations".
