MFG:Cirrus Logic Inc Category:Integrated Circuits (ICs) Package Cooled:TO D/C:APEZX()
PA61, PA7024J, PA7024JN Datasheet download
Category: Integrated Circuits (ICs)
MFG: Cirrus Logic Inc
Package Cooled: TO
D/C: APEZX()
Description: OP AMP 90V 10A TO-3-8 CE
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: PA61
File Size: 66145 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PA7024J-15
File Size: 437297 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PA7024JN-15
File Size: 437297 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
| Technical/Catalog Information | PA61 |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | TO-3-8 |
| Slew Rate | 2.8 V/s |
| Gain Bandwidth Product | 1MHz |
| Current - Supply | 3mA |
| Current - Output / Channel | 10A |
| Voltage - Supply, Single/Dual (±) | 20 V ~ 90 V, ±10 V ~ 45 V |
| Output Type | - |
| -3db Bandwidth | - |
| Current - Input Bias | 12nA |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Input Offset | 2000V |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | PA61 PA61 598 1317 ND 5981317ND 598-1317 |

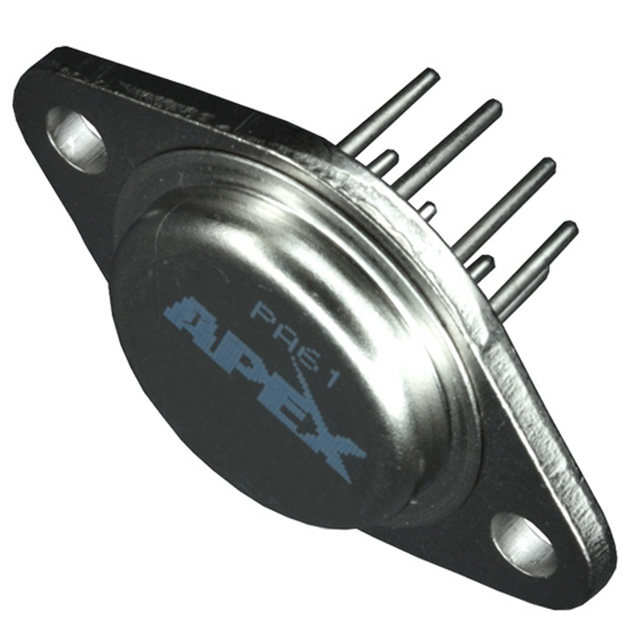

The PA61 and PA61A are high output current operational amplifiers designed to drive resistive, inductive and capacitive loads. Their complementary emitter follower output stage is the simple class C type and optimized for low frequency applications where crossover distortion is not critical. These amplifiers are not recommended for audio, transducer or deflection coil drive circuits above 1kHz or when distortion is critical. The safe operating area (SOA) is fully specified and can be observed for all operating conditions by selection of user programmable current limiting resistors. Both amplifiers are internally compensated for all gain settings. For continuous operation under load, mounting on a heatsink of proper rating is recommended.
This hybrid circuit utilizes thick film conductors, ceramic capacitors, and semiconductor chips to maximize reliability, minimize size, and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package is electrically isolated and hermetically sealed. The use of compressible thermal washers and/or improper mounting torque voids the product warranty. Please see Application Note 1 "General Operating Considerations,"
The PA61A is the A grade version, the PA61M/883 is the certified military grade version.
Applications:
| Output Current MAX (A) | Supply Voltage MAX (V) | Slew Rate TYP (V/s) | Standby Current MAX (mA) | Power Dissipation MAX (W) |
|---|---|---|---|---|
| 10 | 90 | 2.8 | 10 | 97 |
Price: 4-6 USD
