PB5540, PB58, PB58A Datasheet download
Category: Integrated Circuits (ICs)
MFG: Cirrus Logic Inc
Package Cooled: SOT-223
D/C: 03+
Description: AMP PWR BSTR 300V 2A TO-3-8 SG
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: PB5
File Size: 186465 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PB58
File Size: 71330 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: PB58A
File Size: 71330 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
| Technical/Catalog Information | PB58 |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | TO-3-8 |
| Slew Rate | 100 V/s |
| Gain Bandwidth Product | - |
| Current - Supply | 14mA |
| Current - Output/Channel | 1.5A |
| Voltage - Supply, Single/Dual (±) | 30 V ~ 300 V, ±15 V ~ 150 V |
| Output Type | - |
| -3db Bandwidth | 1MHz |
| Current - Input Bias | - |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Input Offset | 750mV |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | PB58 PB58 598 1451 ND 5981451ND 598-1451 |

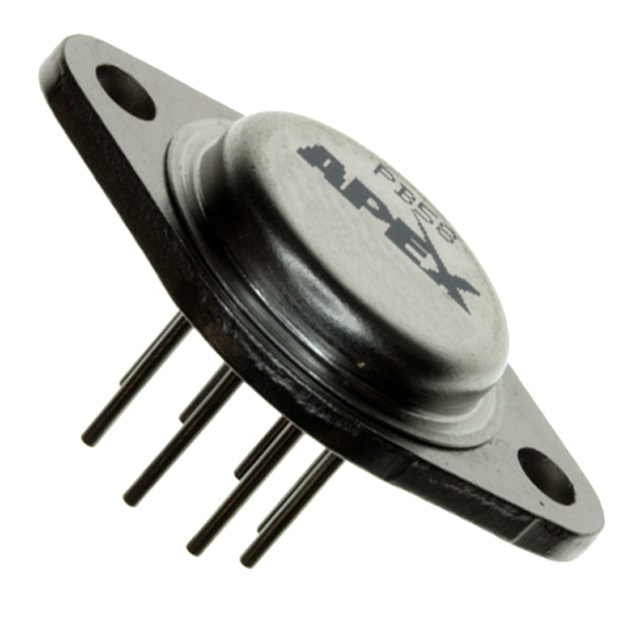

The PB58 is a high voltage, high current amplifier designed to provide voltage and current gain for a small signal, general purpose op amp. Including the power booster within the feedback loop of the driver amplifier results in a composite amplifier with the accuracy of the driver and the extended output voltage range and current capability of the booster. The PB58 can also be used without a driver in some applications, requiring only an external current limit resistor to function properly.
The output stage utilizes complementary MOSFETs, providing symmetrical output impedance and eliminating second breakdown limitations imposed by Bipolar Transistors. Internal feedback and gainset resistors are provided for a pin-strapable gain of 3. Additional gain can be achieved with a single external resistor. Compensation is not required for most driver/gain configurations, but can be accomplished with a single external capacitor. Enormous flexibility is provided through the choice of driver amplifier, current limit, supply voltage, voltage gain, and compensation.
This hybrid circuit utilizes a beryllia (BeO) substrate, thick film resistors, ceramic capacitors and semiconductor chips to maximize reliability, minimize size and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package is electrically isolated and hermetically sealed using one-shot resistance welding. The use of compressible isolation washers voids the warranty.
The PB58A is the A grade version.
Applications:
| Output Current MAX (A) | Supply Voltage MAX (V) | Slew Rate TYP (V/s) | Standby Current MAX (mA) | Power Dissipation MAX (W) |
|---|---|---|---|---|
| 1.5 | 300 | 250 | 35 | 70 |
| Technical/Catalog Information | PB58A |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Amplifier Type | Power |
| Number of Circuits | 1 - Single |
| Package / Case | TO-3-8 |
| Slew Rate | 100 V/s |
| Gain Bandwidth Product | - |
| Current - Supply | 14mA |
| Current - Output / Channel | 2A |
| Voltage - Supply, Single/Dual (±) | 30 V ~ 300 V, ±15 V ~ 150 V |
| Output Type | - |
| -3db Bandwidth | 1MHz |
| Current - Input Bias | - |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Input Offset | 750mV |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | PB58A PB58A 598 1341 ND 5981341ND 598-1341 |
The PB58 is a high voltage, high current amplifier designed to provide voltage and current gain for a small signal, general purpose op amp. Including the power booster within the feedback loop of the driver amplifier results in a composite amplifier with the accuracy of the driver and the extended output voltage range and current capability of the booster. The PB58 can also be used without a driver in some applications, requiring only an external current limit resistor to function properly.
The output stage utilizes complementary MOSFETs, providing symmetrical output impedance and eliminating second breakdown limitations imposed by Bipolar Transistors. Interna feedback and gainset resistors are provided for a pin-strapable gain of 3. Additional gain can be achieved with a single external resistor. Compensation is not required for most driver/gain configurations, but can be accomplished with a single external cpacitor. Enormous flexibility is provided through the choice of driver amplifier, current limit, supply voltage, voltage gain, and compensation.
This hybrid circuit utilizes a beryllia (BeO) substrate, thick film resistors, ceramic capacitors and semiconductor chips to maximize reliability, minimize size and give top performance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The 8-pin TO-3 package is electrically isolated and hermetically sealed using one-shot resistance welding. The use of compressible isolation washers voids the warranty.
| SUPPLY VOLTAGE, +VS to-VS | 300V |
| OUTPUT CURRENT, within SOA | 2.0A |
| POWER DISSIPATION, internal at Tc = 251 | 83W |
| INPUT VOLTAGE, referred to common | ±15V |
| TEMPERATURE, pin solder-10 sec ma | 300 |
| TEMPERATURE, junction1 | 175 |
| TEMPERATURE, storage | -65 to +150 |
| OPERATING TEMPERATURE RANGE, case | -55 to +125 |
