PQ090RDA1SSH, PQ090RDA1SZH, PQ09DN11

Table of contents:
Info of PQ090RDA1SSH
Info of PQ090RDA1SZH
Info of PQ09DN11

PQ090RDA1SSH, PQ090RDA1SZH, PQ09DN11 Selling Leads, Datasheet

MFG:Sharp Microelectronics Category:Integrated Circuits (ICs) Package Cooled:TO-220 D/C:0707+

PQ090RDA1SSH, PQ090RDA1SZH, PQ09DN11 Datasheet download

Five Points

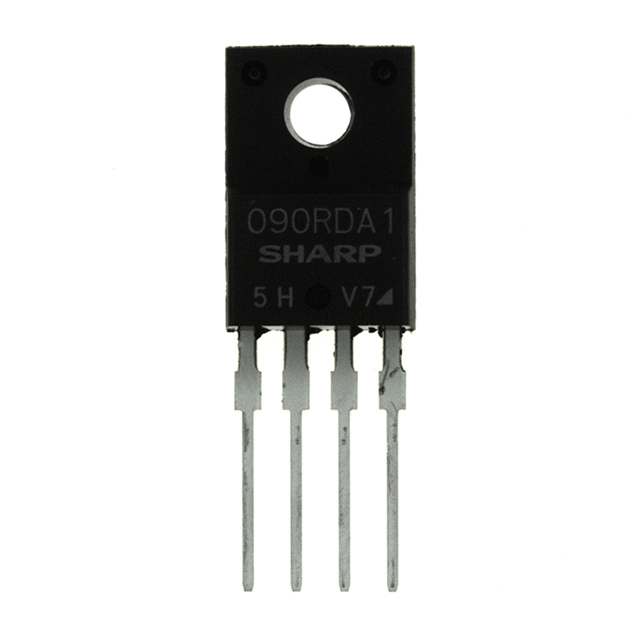

Part Number: PQ090RDA1SZH

Category: Integrated Circuits (ICs)

MFG: Sharp Microelectronics

Package Cooled: TO-220

D/C: 0707+

Description: IC VOLT REG LDO 1A 9V TO-220

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PQ090RDA1SZH Parameters

Technical/Catalog Information	PQ090RDA1SZH
Vendor	Sharp Microelectronics
Category	Integrated Circuits (ICs)
Regulator Type	Single Output
Package / Case	TO-220
Packaging	Tube
Regulator Topology	Positive Fixed
Current - Output	1A
Voltage - Output	9V
Operating Temperature	-30°C ~ 85°C
Voltage - Input	6 ~ 12 V
Number of Regulators	1
Current - Limit (Min)	1A
Current Short Circuit (Isc)	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PQ090RDA1SZH PQ090RDA1SZH 425 2690 5 ND 42526905ND 425-2690-5

PQ090RDA1SZH Maximum Ratings

Parameter	Symbol	Rating	Unit
^*1Input voltage	V_IN	24	V
^*1ON/OFF control terminal voltage	V_C	124	V
Output current	I_O	1.0	A
^*2Power dissipation	P_D1	1.4	W
^*2Power dissipation	P_D2	15	W
^*3Junction temperature	T_j	150
Operating temperature	T_opr	-30 to +85
Storage temperature	T_stg	-40 to +150
Soldering temperature	T_sol	260(10s)

*1 All are open except GND and applicable terminals.
*2 PD1: No heat sink,PD2: With infinite heat sink.
*3 Overheat protection may operate at Tj=125°C to 150°C

PQ090RDA1SZH Features

1.Low power-loss Dropout voltage: MAX.0.5V
2.Output current: 1A
3.Low dissipation current (Dissipation current at no load: MAX. 8mA Output OFF-state dissipation current: MAX.5A)
4.Built-in ON/OFF function
5.Built-in overcurrent and overheat protection functions
6.Built-in ASO protect function
7.RoHS directive compliant

PQ090RDA1SZH Typical Application

1.Power supplies for various electronic equipment such as AV,OA
