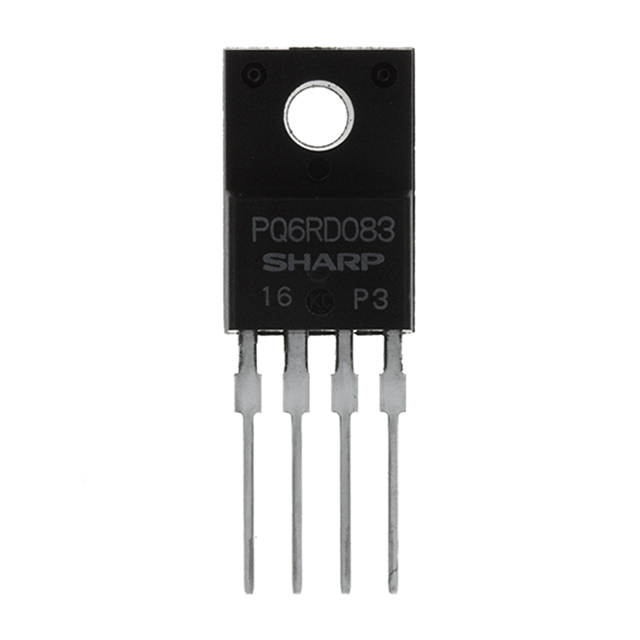

Part Number: PQ6RD083

Category: Integrated Circuits (ICs)

MFG: Sharp Microelectronics

Package Cooled: 1000

D/C: TO220F

Description: IC REG LDO ADJ 5A ON/OFF TO-3P

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PQ7DV5 Suppliers

More PQ7DV5 Suppliers

Select All

PQ7DC10
Vendor: Sharp Pack: TO D/C: 02+& Qty: 1072 Adddate: 2025-12-19
YOUWEI ELECTRONICS CO., Ltd
Contact: Mr.JACKHU
Tel: 86-0755-33062827
Fax: 86-0755-33062897
(1)

PQ7DV10
Pack: TO D/C: 02+& Qty: 954 Adddate: 2025-12-19
YOUWEI ELECTRONICS CO., Ltd
Contact: Mr.JACKHU
Tel: 86-0755-33062827
Fax: 86-0755-33062897
(1)

PQ7DV10
Vendor: Sharp Qty: 98 Note: stock Adddate: 2025-12-19
PRO-IC Inc.
Contact: Mr.Bruce Lee
Tel: 82-31-5741420
Fax: 82-31-5741419
(97)

PQ7RV4
Vendor: Sharp Qty: 10000 Adddate: 2025-12-19
HK Senmeike Int'l Trade Limited
Contact: Mr.RocZhang
Tel: 86-755-33061899
Fax: 86-755-33061858
(2)

PQ7RV4
Vendor: Sharp Pack: TO Qty: 300 Adddate: 2025-12-19
SOLAR SYSTEMS(HONGKONG) ELECTRONICS COMPANY
Contact: Mr.solarlin
Tel: 0086-0755-61685878
Fax: 0086-0755-82539977
(0)

PQ7RV4
Vendor: Sharp Qty: 2284 Adddate: 2025-12-19
Prestige industrial company
Contact: Ms.jennychen
Tel: 86-755-83677188
Fax: 86-755-83796511
(32)

PQ7VZ5
Vendor: Sharp Pack: TO Qty: 300 Adddate: 2025-12-19
SOLAR SYSTEMS(HONGKONG) ELECTRONICS COMPANY
Contact: Mr.solarlin
Tel: 0086-0755-61685878
Fax: 0086-0755-82539977
(0)

About PQ7DV5

PDF/DataSheet Download

Datasheet: PQ7DV5

File Size: 35575 KB

Manufacturer: SHARP [Sharp Electrionic Components]

Download : Click here to Download

Related PDF Download

PQ7DV10
File Size: 39433 KB
PQ7DV10_01
File Size: 57653 KB
PQ7RV1
File Size: 147759 KB
PQ7RV4
File Size: 40954 KB
PQ7RV4_01
File Size: 61627 KB

Related Part Number

PQ7RV4 Sharp Microelectronics (VA) - -
PQ7VZ1 SHARP - 252 - .
B82473A1223K000 86200 - EPCOS - 09+
CY2300SXIT CYPRESS - N/A - 09+
2526-6003 3M - QFN - 05+
EMVY630GTR331MMH0S UCC - SMD - 09+
22TIAEL 23 - 超微-10 - NO
MC68HC908GR8ACFA Motorola - -
MNM1316 PANASONIC - QFP64 - 02+
3030-100M68 IC - PLCC - N/A
1.5SMCJ188A-TR DO-214AB - PANJIT - 07+
T7270535B4DN WESTCODE - TO-200AB - 2009
PQ7DV10SHARP - TO3P-5 - 02+
PQ7RV4SHARP - TO220 -
PQ7VZ5SHARP - TO-252 - 08+
HMBT2222A
SEMiX352GB128Ds
KTD525
KTD718
KDS193
SEMiX352GB128D
SEMiX101GD126HDs
SEMiX302GB128D
SEMiX101GD128Ds
KTD1047

PQ6RD083 Parameters

Technical/Catalog Information	PQ6RD083
Vendor	Sharp Microelectronics
Category	Integrated Circuits (ICs)
Regulator Type	Single Output
Package / Case	TO-220
Packaging	Tube
Regulator Topology	Positive Fixed
Current - Output	800mA
Voltage - Output	6.3V
Operating Temperature	-20°C ~ 80°C
Voltage - Input	7 ~ 13 V
Number of Regulators	1
Current - Limit (Min)	800mA
Current Short Circuit (Isc)	-
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PQ6RD083 PQ6RD083 425 1752 5 ND 42517525ND 425-1752-5

PQ6RD083 Maximum Ratings

Parameter	Symbol	Rating	Unit
^*1 Input voltage	V_IN	20	V
^*1ON/OFF control terminal voltage	V_C	20	V
Output current	I_O	0.8	A
^*2 Power dissipation	P_D1	1.25	W
^*2 Power dissipation	P_D2	10	W
^*3 Junction temperature	T_j	150	°C
Operating temperature	T_opr	-20 to + 80	°C
Storage temperature	T_stg	-40 to +150	°C
Soldering temperature	T_sol	260 (For 10s)	°C

PQ6RD083 Features

·Low power-loss (Dropout voltage: MAX. 0.5V at I_o=0.5A)
·0.8A output type
·Compact resin package (equivalent to TO-220)
·Available 3.3V/5V/6.3V/9V/12V output type
·Output voltage precision: ±3.0%
·Built-in ON/OFF control function
·Built-in Overcurrent, overheat protection functions, ASO protection circuit
·Lead forming type is also available.

PQ6RD083 Typical Application

Power supplies for various electronic equipment such as AV, OA equipment

PQ7DV10 Parameters

Technical/Catalog Information	PQ7DV10
Vendor	Sharp Microelectronics
Category	Integrated Circuits (ICs)
Regulator Type	Single Output
Package / Case	TO-3P
Packaging	Tube
Regulator Topology	Positive Adjustable
Current - Output	10A
Voltage - Output	1.5 ~ 7 V
Operating Temperature	-20°C ~ 80°C
Voltage - Input	3 ~ 10 V
Number of Regulators	1
Current - Limit (Min)	10A
Current Short Circuit (Isc)	-
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PQ7DV10 PQ7DV10 425 1754 5 ND 42517545ND 425-1754-5

PQ7DV10 Maximum Ratings

^Parameter	^Symbol	^Rating	^Unit
^*1 Input voltage	V_IN	10	V
^*1 ON/OFF control terminal voltage	V_C	10	V
^*1 Output adjustment terminal voltage	V_ADJ	5	V
Output current	I_O	10	A
Power dissipation (No heat sink)	P_D1	2.2	W
Power dissipation (With infinite heat sink)	P_D2	60	W
^*2 Junction temperature	T_j	150
Operating temperature	T_opr	-20 to +80
Storage temperature	T_stg	-40 to +150
Soldering temperature	T_sol	260 (For 10s)

*1 All are open except GND and applicable terminals.
*2 Overheat protection may operate at 125=<Tj=<150°C.

PQ7DV10 Features

· 10A output type
· Low power-loss (Dropout voltage : MAX.0.5V at Io= 10A)
· Variable output type (1.5 to 7V)
· Low operating voltage (Minimum input voltage : 3.0V)
· High-precision reference voltage type (Reference voltage precision : ±2.0%)
· TO-3P package
· Built-in ON/OFF control function
· Built-in overcurrent protection, overheat protection function

PQ7DV10 Typical Application

· Power supplies for various electronic equipment such as personal computers

PQ7DV5 Parameters

Technical/Catalog Information	PQ7DV5
Vendor	Sharp Microelectronics
Category	Integrated Circuits (ICs)
Regulator Type	Single Output
Package / Case	TO-3P
Packaging	Tube
Regulator Topology	Positive Adjustable
Current - Output	5A
Voltage - Output	1.5 ~ 7 V
Operating Temperature	-20°C ~ 80°C
Voltage - Input	3 ~ 10 V
Number of Regulators	1
Current - Limit (Min)	5A
Current Short Circuit (Isc)	-
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PQ7DV5 PQ7DV5 425 1756 5 ND 42517565ND 425-1756-5

PQ7DV5 Maximum Ratings

^Parameter	^Symbol	^Rating	^Unit
^*1 Input voltage	V_IN	10	V
^*1 ON/OFF control terminal voltage	V_C	10	V
^*1 Output adjustment terminal voltage	V_ADJ	5	V
Output current	I_O	5.0	A
Power dissipation (No heat sink)	P_D1	2.2	W
Power dissipation (With infinite heat sink)	P_D2	60	W
^*2 Junction temperature	T_j	150
Operating temperature	T_opr	-20 to +80
Storage temperature	T_stg	-40 to +150
Soldering temperature	T_sol	260 (For 10s)

*1 All are open except GND and applicable terminals.
*2 Overheat protection may operate at 125=<Tj=<150°C.

PQ7DV5 Features

· TO-3P package
· Low power-loss (Dropout voltage:MAX. 0.5V at Io=5A)
· Variable output type (1.5V to 7V)
· Minimum input voltage : 3.0V
· High output current type (5A)
· Reference voltage precision : ±2.0%
· Built-in ON/OFF control function
· Built-in overcurrent protection, overheat protection function

PQ7DV5 Typical Application

·Power supplies for various electronic equipment such as personal computers
