PT5022A, PT5022C, PT5026N

Table of contents:
Info of PT5022A
Info of PT5022C
Info of PT5026N

PT5022A, PT5022C, PT5026N Selling Leads, Datasheet

MFG:Texas Instruments Category:Power Supplies Package Cooled:N/S D/C:08.09+

PT5022A, PT5022C, PT5026N Datasheet download

Five Points

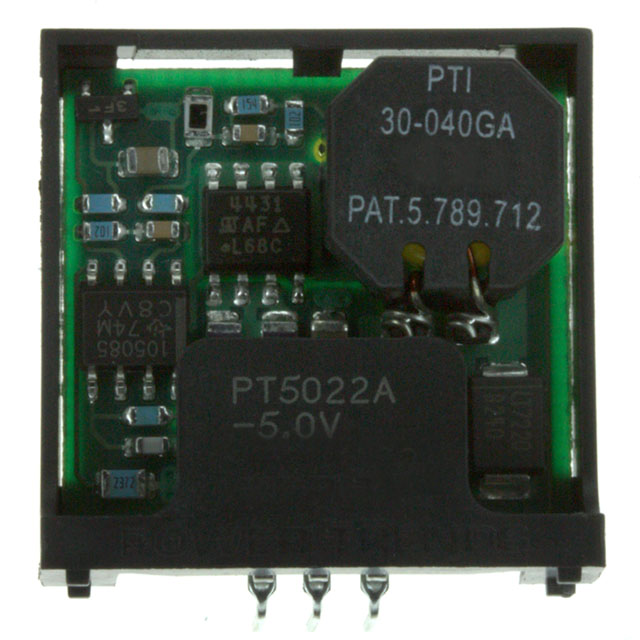

Part Number: PT5022A

Category: Power Supplies

MFG: Texas Instruments

Package Cooled: N/S

D/C: 08.09+

Description: REG SW -5.2V 1A VERT

Price Break

1
25
100
500

Unit Price

18.17000
16.95400
15.74300
15.13750

Extended Price

18.17
423.85
1574.30
7568.75

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PT5022A Parameters

Technical/Catalog Information	PT5022A
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	4.75 ~ 7VDC
Output	-5.0VDC
Power (Watts)	5W
Number of Outputs	1
1st Output	-5 VDC @ 1A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Through Hole
Packaging	Tray
Package / Case	3-SIP Module
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PT5022A PT5022A

PT5022C Parameters

Technical/Catalog Information	PT5022C
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	4.75 ~ 7VDC
Output	-5.0VDC
Power (Watts)	5W
Number of Outputs	1
1st Output	-5 VDC @ 1A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Surface Mount
Packaging	Tray
Package / Case	3 Pin SIP
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PT5022C PT5022C

PT5026N Parameters

Technical/Catalog Information	PT5026N
Vendor	Texas Instruments
Category	Power Supplies
Voltage - Input	4.75 ~ 7VDC
Output	-5.2VDC
Power (Watts)	5.2W
Number of Outputs	1
1st Output	-5.2 VDC @ 1A
2nd Output	-
3rd Output	-
4th Output	-
Type	Non-Isolated
Mounting Type	Through Hole
Packaging	Tray
Package / Case	3-SIP MODULE
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PT5026N PT5026N 296 20088 ND 29620088ND 296-20088
