PVU414PBF, PVU414S, PVU414S-T

Table of contents:
Info of PVU414PBF
Info of PVU414S
Info of PVU414S-T

PVU414PBF, PVU414S, PVU414S-T Selling Leads, Datasheet

MFG:International Rectifier Category:Relays Package Cooled:SOP D/C:02+

PVU414PBF, PVU414S, PVU414S-T Datasheet download

Five Points

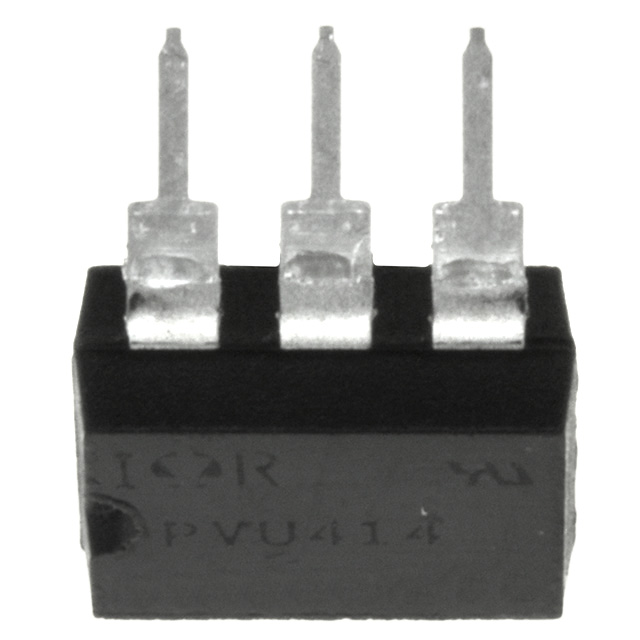

Part Number: PVU414PBF

Category: Relays

MFG: International Rectifier

Package Cooled: SOP

D/C: 02+

Description: IC RELAY PHOTOVO 400V 140MA 6SMD

Price Break

1
10
100
250
500
1000
2500
5000
10000

Unit Price

6.54000
4.47600
3.55990
3.33540
3.19152
3.06726
2.92120
2.81874
2.72500

Extended Price

6.54
44.76
355.99
833.85
1595.76
3067.26
7303.00
14093.70
27250.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

PVU414PBF Parameters

Technical/Catalog Information	PVU414PBF
Vendor	International Rectifier
Category	Relays
Mounting Type	Through Hole
Termination Style	PC Pin
Package / Case	6-DIP (300 mil)
Circuit	SPST-NO (1 Form A)
Load Current	140mA
Voltage - Input	1.2VDC
Voltage - Load	0 ~ 400 V
Output Type	AC, DC
On-State Resistance	27 Ohm
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PVU414PBF PVU414PBF

PVU414S Parameters

Technical/Catalog Information	PVU414S
Vendor	International Rectifier
Category	Relays
Mounting Type	Surface Mount
Termination Style	Gull Wing
Package / Case	6-SMD (300 mil)
Circuit	SPST-NO (1 Form A)
Load Current	140mA
Voltage - Input	1.2VDC
Voltage - Load	0 ~ 400V
Output Type	AC, DC
On-State Resistance	27 Ohm
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PVU414S PVU414S

PVU414S General Description

The PVU414 Series Photovoltaic Relay is a single-pole, normally open solid-state relay that can replace electromechanical relays in many applications. It utilizes International Rectifier's proprietary HEXFET power MOSFET as the output switch, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode (LED) which is optically isolated from the photovoltaic generator.

The PVU414 is ideally suited for instrumentation, multiplexing, scanning and data acquisition applications. It offers high operating speed, low thermal offset (EMF) voltage, low and stable on-state resistance and high off-state resistance.

The PVU414 relay is packaged in a 6-pin, molded DIP package with either thru-hole or "gull-wing" surface mount terminals. It is available in standard plastic shipping tubes or on tape-and-reel. Refer to Part Identification information.

PVU414S Features

`HEXFET output
`Bounce-free operation
`High operating speed
`High off-state resistance
`0.2 V thermal offset voltage
`Linear AC/DC operation
`Solid-state reliability
`UL and CSA certifications pending

PVU414S Typical Application

·Multiplexing
·Scanning
·Multichannel Sampling
·Data Acquisition
·Signal Level Switching
·Instrumentation and Measurement

PVU414S-T Parameters

Technical/Catalog Information	PVU414S-T
Vendor	International Rectifier
Category	Relays
Mounting Type	Surface Mount
Termination Style	Gull Wing
Package / Case	6-SMD (300 mil)
Circuit	SPST-NO (1 Form A)
Load Current	140mA
Voltage - Input	1.2VDC
Voltage - Load	0 ~ 400V
Output Type	AC, DC
On-State Resistance	27 Ohm
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PVU414S T PVU414ST

PVU414S-T General Description

PVU414S-T Features

PVU414S-T Typical Application

·Multiplexing
·Scanning
·Multichannel Sampling
·Data Acquisition
·Signal Level Switching
·Instrumentation and Measurement
