Part Number: QED423

Category: Optoelectronics

MFG: Fairchild Optoelectronics Group

Package Cooled: N/A

D/C: 09+

Description: LED IR EMIT ALGAAS 880NM TO-46

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

QED423 Parameters

Technical/Catalog Information	QED423
Vendor	Fairchild Optoelectronics Group
Category	Optoelectronics
Voltage - Forward (Vf) Typ	1.8V
Current - DC Forward (If)	100mA
Wavelength	880nm
Viewing Angle	30°
Radiant Intensity (Ie) Min @ If	20mW @ 100mA
Mounting Type	Through Hole
Package / Case	TO-46
Orientation	Top View
Packaging	-
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	QED423 QED423

QED423 General Description

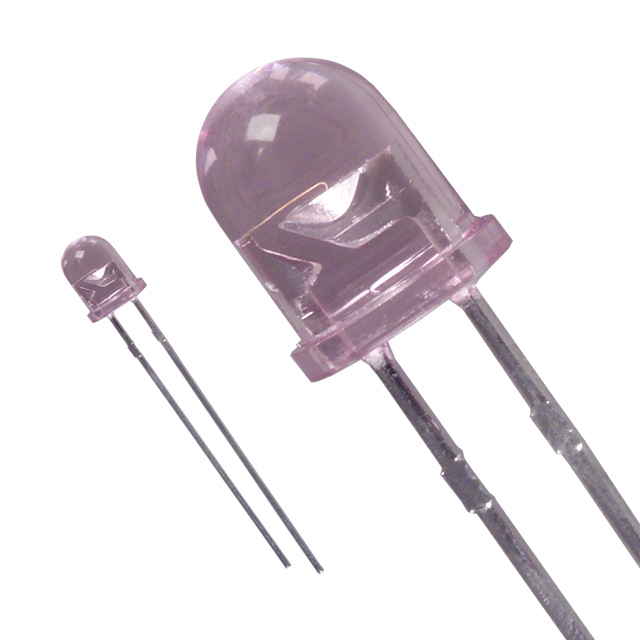

The QED422/423 is an 880 nm AlGaAs LED encapsulated in a clear, purple tinted, plastic TO-46 package.

QED423 Maximum Ratings

Parameter	Symbol	Rating	Unit
Operating Temperature	T_OPR	-40to +100
Storage Temperature	T_STG	-40 to +100
Soldering Temperature (Flow) (2,3,4)	T_SOL-1	240 for 5 sec
Soldering Temperature (Flow)(2,3)	T_SOL-F	260 for 10 sec
Continuous Forward Current	I_F	100	mA
Reverse Voltage	V_R	5	V
Power Dissipation(1)	PD	200	mW

NOTES:
1. Derate power dissipation linearly 2.67 mW/°C above 25°C.
2. RMA flux is recommended.
3. Methanol or isopropyl alcohols are recommended as cleaning agents.
4. Soldering iron 1/16" (1.6 mm) minimum from housing

QED423 Features

•= 880 nm
• Chip material = AlGaAs
• Package type: Plastic TO-46
• Matched Photosensor: QSD722/723/724
• Medium Wide Emission Angle, 30°
• High Output Power
• Package material and color: clear, purple tinted, plastic
