RF2304TR7, RF2306, RF2307 Datasheet download
Category: RF and RFID
MFG: RFMD
Package Cooled: SOP8
D/C: 2008+

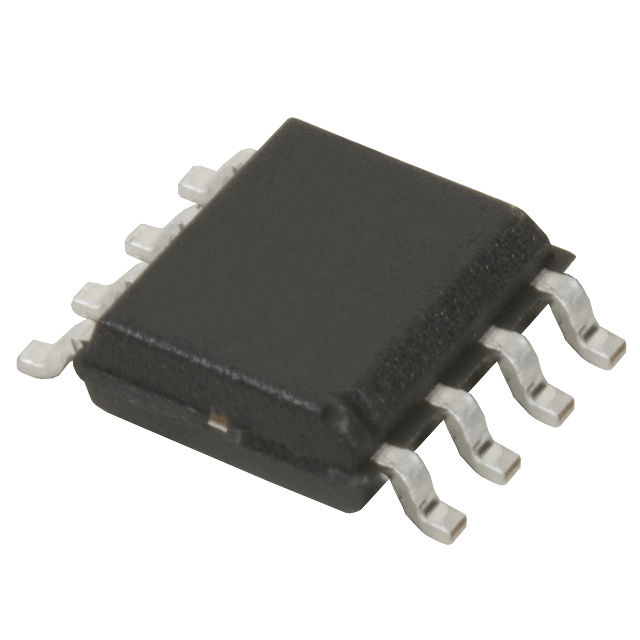

Description: IC AMP GEN-PURP LOW-NOISE 8-SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: RF2
File Size: 756593 KB
Manufacturer: Willow Technologies Ltd
Download : Click here to Download
PDF/DataSheet Download
Datasheet: RF2306
File Size: 60995 KB
Manufacturer: RFMD [RF Micro Devices]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: RF2307
File Size: 60969 KB
Manufacturer: RFMD [RF Micro Devices]
Download : Click here to Download
| Technical/Catalog Information | RF2304TR7 |
| Vendor | RFMD |
| Category | RF and RFID |
| Package / Case | 8-SOIC |
| Voltage - Supply | 2.7V ~ 6V |
| Current - Supply | 7mA ~ 26mA |
| Gain | 8.5dB |
| Frequency | 300MHz ~ 2.5GHz |
| RF Type | ISM, WLAN, FDD, TDD |
| Packaging | Tape & Reel (TR) |
| Noise Figure | 1.9dB |
| P1db | 7.5dBm |
| Test Frequency | 900MHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | RF2304TR7 RF2304TR7 |
The RF2306 is a general purpose, low cost RF amplifier IC. The device is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as an easily-cascadable 50Ω gain block. Applications include IF and RF amplification in wireless voice and data communication products operating in frequency bands up to 2000MHz. The device is self-contained with 50Ω input and output impedances and requires only two external DC biasing elements to operate as specified.
| Parameter |
Rating |
Unit |
| Supply Current Input RF Power Operating Ambient Temperature Storage Temperature |
65 +10 -40 to +85 -40 to +150 |
mA dBm °C °C |
The RF2307 is a general purpose, low cost RF amplifier IC. The device is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as an easily-cascadable 50Ω gain block. Applications include IF and RF amplification in wireless voice and data communication products operating in frequency bands up to 3000MHz. The device is self-contained with 50Ω input and output impedances and requires only two external DC biasing elements to operate as specified.
| Parameter |
Rating |
Unit |
| Supply Current Input RF Power Operating Ambient Temperature Storage Temperature |
65 +10 -40 to +85 -40 to +150 |
mA dBm °C °C |
