RK3055E, RK3055ETL, RK34

Table of contents:
Info of RK3055E
Info of RK3055ETL
Info of RK34

RK3055E, RK3055ETL, RK34 Selling Leads, Datasheet

MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:SOT-252 D/C:TO.252-2.5

RK3055E, RK3055ETL, RK34 Datasheet download

Five Points

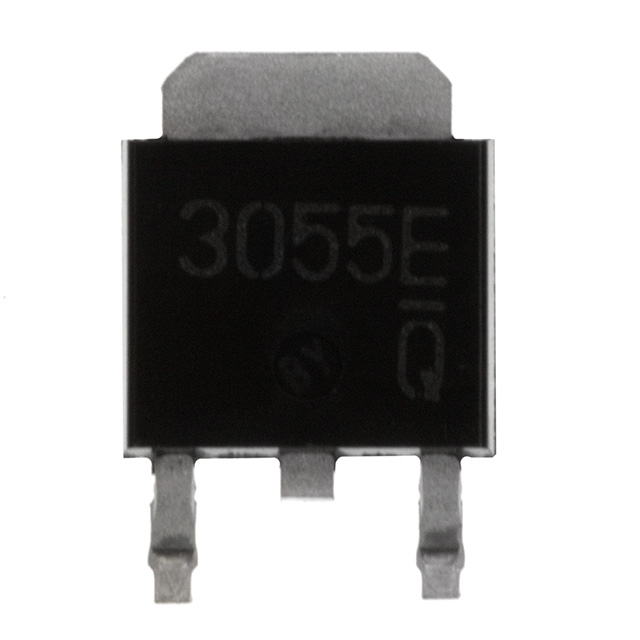

Part Number: RK3055ETL

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor(VA)

Package Cooled: SOT-252

D/C: TO.252-2.5

Description: MOSFET N-CH 60V 8A DPAK

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

RK3055E Maximum Ratings

Parameter		Symbol	Limits	Unit
Drain-source voltage		V_DSS	60	V
gate-source voltage		V_GSS	±20	V
Drain current	Continuous	I_D	8	A
Drain current	Pulsed	I_DP*	20	A
Reverse drain current	Continuous	I_DR	8	A
Reverse drain current	Pulsed	I_DRP*	20	A
Total power dissipation(T_C=25)		P_D	20	W
Channel temperature		Tch	150
Storage temperarure		Tstg	-55to+150

*Pw10 s,Duty cycle1%

RK3055E Features

1) Low on-resistance.
2) Fast switching speed.
3) Wide SOA (safe operating area).
4) Low-voltage drive.
5) Easily designed drive circuits.
6) Easy to use in parallel.

RK3055ETL Parameters

Technical/Catalog Information	RK3055ETL
Vendor	Rohm Semiconductor(VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	8A
Rds On (Max) @ Id, Vgs	150 mOhm @ 4A, 10V
Input Capacitance (Ciss) @ Vds	520pF @ 10V
Power - Max	20W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	-
Package / Case	DPak, SC-63, TO-252 (2 leads+tab)
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	RK3055ETL RK3055ETL RK3055ETLCT ND RK3055ETLCTND RK3055ETLCT
