Description: DIODE SCHOTTKY 30V 1A PMDU
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: RSX1001T3
File Size: 186280 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: RSX051VA-30
File Size: 64413 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: RSX051VA-30
File Size: 64413 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download

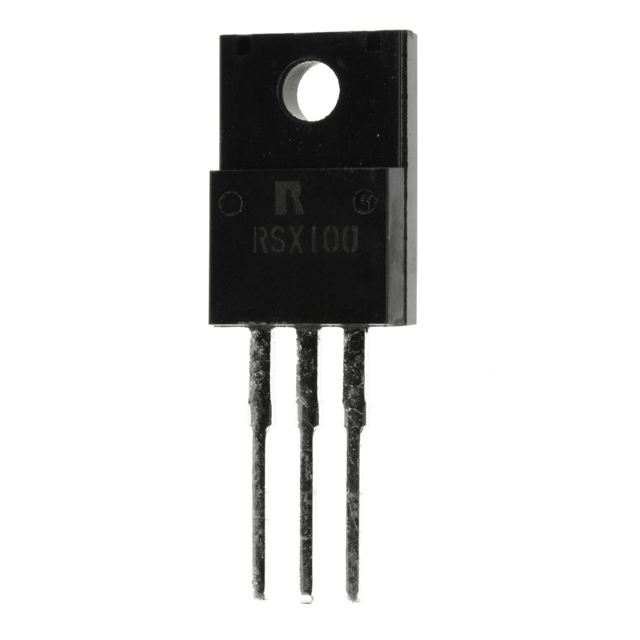

| Technical/Catalog Information | RSX1001T3 |
| Vendor | Rohm Semiconductor |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 450mV @ 5A |
| Current - Reverse Leakage @ Vr | 500A @ 30V |
| Reverse Recovery Time (trr) | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | TO-220FN-3 (Straight Leads) |
| Packaging | Bulk |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | RSX1001T3 RSX1001T3 |
| Symbol |
Unit | Parameter | Limits |
| Reverse voltage (repetitive peak) | VRM |
30 | V |
| Re verse voltage (DC) | VR | 30 | V |
| Average rectified forward current (*1) | Io | 10 | A |
| Forward current surge peak (60Hz・1cyc) | IFSM | 150 | A |
| Junction temperature | Tj | 150 | |
| Storage temperature | Tstg | -40 to +150 |
1) Cathode common type. (TO-220)
2) Low IR
3) High reliability
Switching power supply
| Technical/Catalog Information | RSX101M-30TR |
| Vendor | Rohm Semiconductor(VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 390mV @ 1A |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 200A @ 30V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 Flat Leads |
| Packaging | Digi-Reel? |
| Capacitance @ Vr, F | 60pF @ 10V, 1MHz |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | RSX101M 30TR RSX101M30TR RSX101M 30DKR ND RSX101M30DKRND RSX101M-30DKR |
