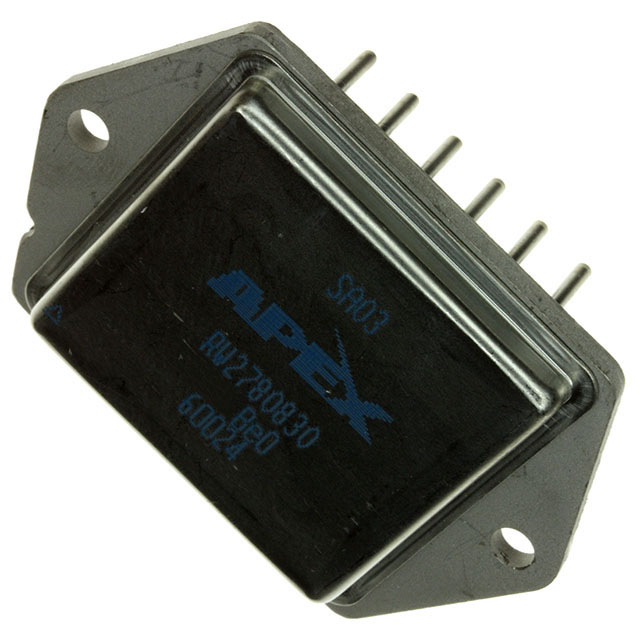

SA03, SA03-11YWA/BR-119424 SA03-11YWA, SA03A Datasheet download
Category: Integrated Circuits (ICs)
MFG: Cirrus Logic Inc
Package Cooled: ZIP5
D/C: 09+
Description: IC PWM AMP 100V 30A 12-PWRDIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SA03
File Size: 138709 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SA01
File Size: 66418 KB
Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SA01
File Size: 66418 KB
Manufacturer: MITSUBISHI [Mitsubishi Electric Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | SA03 |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Applications | DC Motor Driver |
| Number of Outputs | 1 |
| Voltage - Supply | 14 V ~ 16 V |
| Voltage - Load | 16 V ~ 100 V |
| Current - Output | 30A |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 12-DIP Module |
| Packaging | Tube |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | SA03 SA03 598 1452 ND 5981452ND 598-1452 |
The SA03 is a pulse width amplifier that can supply 3000W to the load. An internal 45kHz oscillator requires no external components. The clock input stage divides the oscillator frequency by two, which provides the basic switching of 22.5 kHz. External oscillators may also be used to lower the switching frequency or to synchronize multiple amplifiers. Current sensing is provided for each half of the bridge giving amplitude and direction data. A shutdown input turns off all four drivers of the H bridge output. A high side current limit and the programmable low side current limit protect the amplifier from shorts to supply or ground in addition to load shorts. The H bridge output MOSFETs are protected from thermal overloads by directly sensing the temperature of the die. The 12- pin hermetic MO-127 power package occupies only 3 square inches of board space.
