Part Number: SA5.0A

Category: Circuit Protection

MFG: Littelfuse Inc (VA)

Package Cooled: ON

D/C: 48

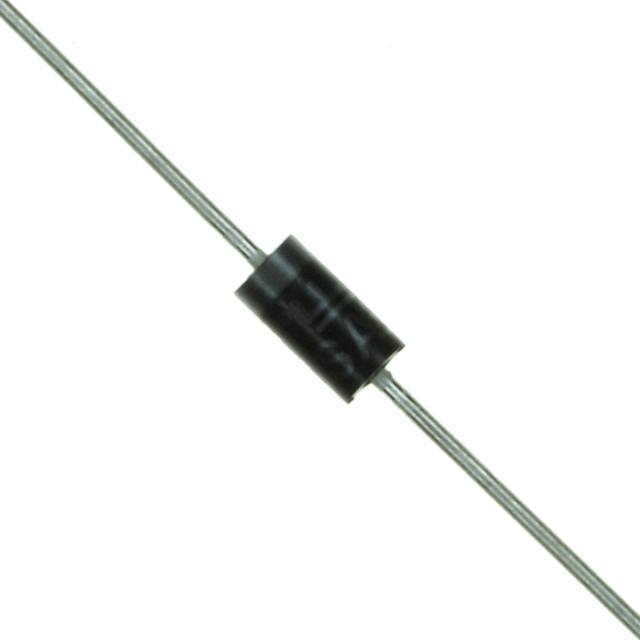

Description: DIODE TVS 5.0V 500W UNI-DIR

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SA5.0A Parameters

Technical/Catalog Information	SA5.0A
Vendor	Littelfuse Inc (VA)
Category	Circuit Protection
Package / Case	Axial
Packaging	Cut Tape (CT)
Polarization	Unidirectional
Power (Watts)	500W
Voltage - Reverse Standoff (Typ)	5V
Voltage - Breakdown	6.4V
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant
Other Names	SA5 0A SA50A SA5 0ALFCT ND SA50ALFCTND SA5.0ALFCT

SA5.0A General Description

The SA5.0A series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SA5.0A series is supplied in ON Semiconductor's exclusive, cost-effective, highly reliable Surmetic^TM axial leaded package and is ideally-suited for use in communication systems, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.

SA5.0A Maximum Ratings

Rating	Symbol	Value	Unit
Peak Power Dissipation (Note 1) @ TL 3 25°C	P_PK	500	Watts
Steady State Power Dissipation @ TL 3 75°C, Lead Length = 3/8, Derated above TL = 75°C	P_D	3.0 30	Watts mW/°C
Thermal Resistance, JunctiontoLead	R_JL	33.3	°C/W
Forward Surge Current (Note 2) @ TA = 25°C	I_FSM	70	Amps
Operating and Storage Temperature Range	T_J, T_stg	55 to +175	°C

SA5.0A Features

• Working Peak Reverse Voltage Range 5 to 170 V
• Peak Power 500 Watts @ 1 ms
• ESD Rating of Class 3 (>16 KV) per Human Body Model
• Maximum Clamp Voltage @ Peak Pulse Current
• Low Leakage < 1 A above 8.5 V
• UL 497B for Isolated Loop Circuit Protection
• Maximum Temperature Coefficient Specified
• Response Time is typically < 1 ns
