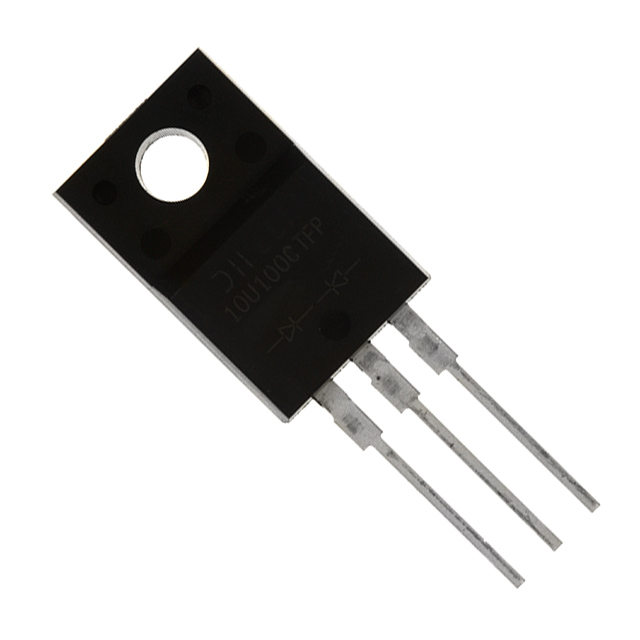

SBR10U100CTFP, SBR10U150CT, SBR10U150CTB Datasheet download
Category: Discrete Semiconductor Products
MFG: Diodes Inc
Package Cooled: ITO-220AB
D/C: 08+/09+
Description: DIODE SBR 10A 150V TO220-3
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SBR10U100CTFP
File Size: 181853 KB
Manufacturer: Diodes Incorporated
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SBR10U150CT
File Size: 156765 KB
Manufacturer: Diodes Incorporated
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SBR0120S3
File Size: 62284 KB
Manufacturer: ETC
Download : Click here to Download
| Technical/Catalog Information | SBR10U100CTFP |
| Vendor | Diodes Inc |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Voltage - DC Reverse (Vr) (Max) | 100V |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 820mV @ 10A |
| Current - Reverse Leakage @ Vr | 200A @ 100V |
| Reverse Recovery Time (trr) | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | TO-220-3 (Straight Leads, Isolated), ITO-220AB |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SBR10U100CTFP SBR10U100CTFP SBR10U100CTFPDI ND SBR10U100CTFPDIND SBR10U100CTFPDI |
| Product Type | SBR |
| Part Number | SBR10U100CTFP |
| Max Average Rectified Current IO (A) | 10 |
| @ Terminal Temperature TT (oC) | 135 |
| Peak Repetitive Reverse Voltage VRRM (V) | 100 |
| Peak Forward Surge Current IFSM (A) | 150 |
| Forward Voltage Drop VF (V) | 0.67 |
| @ IF (A) | 10 |
| Max Reverse Current IR (mA) | 0.2 |
| @ VR (V) | 100 |
| Total Capacitance CT (pF) | - |
• Low Forward Voltage Drop
• Excellent High Temperature Stability
• Super Barrier Design
• Soft, Fast Switching Capability
• Molded Plastic TO-220AB, D2Pak, and ITO-220AB packages
• Lead Free Finish, RoHS Compliant (Note 2)
| Technical/Catalog Information | SBR10U150CT |
| Vendor | Diodes Inc |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Voltage - DC Reverse (Vr) (Max) | 150V |
| Current - Average Rectified (Io) (per Diode) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 880mV @ 10A |
| Current - Reverse Leakage @ Vr | 200A @ 150V |
| Reverse Recovery Time (trr) | - |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | TO-220-3 (Straight Leads) |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SBR10U150CT SBR10U150CT SBR10U150CTDI ND SBR10U150CTDIND SBR10U150CTDI |
| Characteristic | SYMBOL | Value | Unit |
| Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage |
VRRM VRWM VRM |
150 | V |
| RMS Reverse Voltage | VR(RMS) | 106 | V |
| Average Rectified Output Current @ TC = 140ºC | IO | 10 | A |
| Non-Repetitive Peak Forward Surge Current 8.3ms Single Half Sine-Wave Superimposed on Rated Load |
IFSM | 150 | A |
| Peak Repetitive Reverse Surge Current (2uS-1Khz) | IRRM | 3 | A |
| Maximum Thermal Resistance (per leg) Package = TO-220AB Package = ITO-220AB |
RӨJC | 2 4 |
°C/W |
| Operating and Storage Temperature Range | TJ, TSTG | -65 to +175 | °C |
