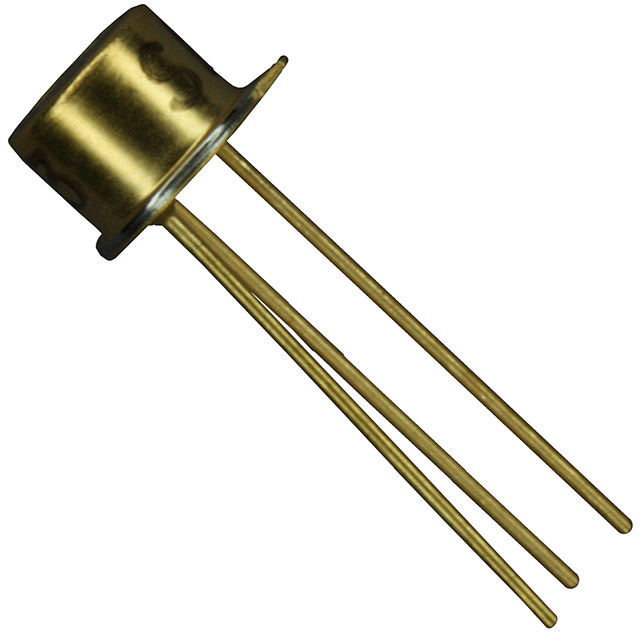

Part Number: SD3443-003

Category: Sensors, Transducers

MFG: Honeywell Sensing and Control

Package Cooled: SO-252

D/C: SO-252

Description: SENSOR PHOTOTRANSISTOR NPN TO-46

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SD340S Maximum Ratings

	SD320S	SD330S	SD340S	SD350S	SD360S	SD380S	SD3100S	UNITS
Maximum Recurrent Peak Reverse Voltage	20	30	40	50	60	80	100	V
Maximum RMS Voltage	14	21	28	35	42	56	70	V
Maximum DC Blocking Voltage	20	30	40	50	60	80	100	V
Maximum Average Forward Rectified Current at Tc=75^°C	3							A
Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method)	75							A
Maximum Instantaneous Forward Voltage at 3.0A (Note 1)	0.50			0.64		0.85		V
Maximum DC Reverse Current at T_c=25^°C DC Blocking Voltage per element T_c=100^°C	0.2 20							mA
Maximum Thermal Resistance (Note 2)	80							^°C/W
Operating and Storage Temperature Range	-55 to +125							^°C
Storage Temperature Range	-65 to +150							^°C

SD340S Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-O
For surface mounted applications
Low profile package
Built-in strain relief
Low power loss, High efficiency
High surge capacity
For use in low voltage high frequency inverters, free wheeling, and polarity protection applications
High temperature soldering guaranteed:260¢XC/10 seconds at terminals

SD340S Connection Diagram

/uploadfile/ic-mfg/360/Fig.4.jpg

SD3443-003 Parameters

Technical/Catalog Information	SD3443-003
Vendor	Honeywell Sensing and Control
Category	Sensors, Transducers
Voltage - Collector Emitter Breakdown (Max)	30V
Current - Collector (Ic) (Max)	2mA
Current - Dark (Id) (Max)	100nA
Power - Max	150mW
Orientation	Top View
Mounting Type	Through Hole
Package / Case	TO-46
Wavelength	-
Viewing Angle	90°
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SD3443 003 SD3443003 480 2975 ND 4802975ND 480-2975
