SKY13270-92LF, SKY13272-340LF, SKY13286-359LF

Table of contents:
Info of SKY13270-92LF
Info of SKY13272-340LF
Info of SKY13286-359LF

SKY13270-92LF, SKY13272-340LF, SKY13286-359LF Selling Leads, Datasheet

MFG:SKYWORKS SOLUTIONS INC (VA) Category:RF and RFID Package Cooled:SOT363 D/C:09+

SKY13270-92LF, SKY13272-340LF, SKY13286-359LF Datasheet download

Five Points

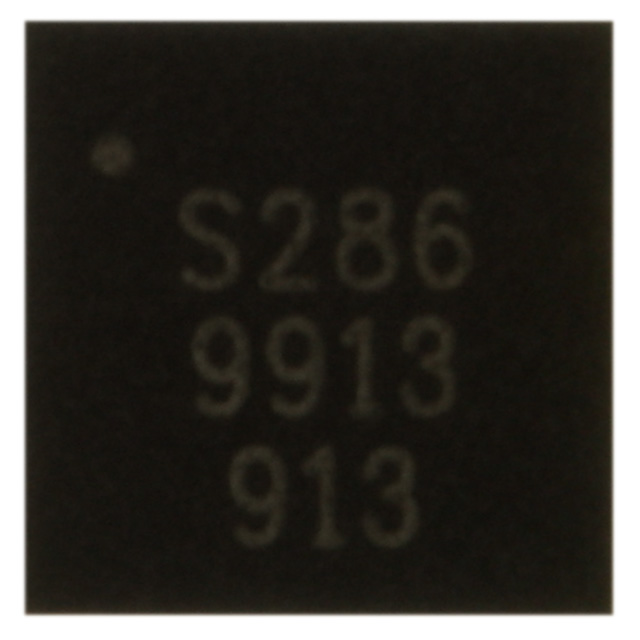

Part Number: SKY13286-359LF

Category: RF and RFID

MFG: SKYWORKS SOLUTIONS INC (VA)

Package Cooled: SOT363

D/C: 09+

Description: IC SWITCH SPDT 100M-6GHZ 16-QFN

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

SKY13270-92LF Parameters

Technical/Catalog Information	SKY13270-92LF
Vendor	SKYWORKS SOLUTIONS INC (VA)
Category	RF and RFID
RF Type	Cellular, GSM
Package / Case	SC-70-6, SC-88, SOT-323-6, SOT-363
Frequency	100MHz ~ 2.5GHz
Features	SPDT
Packaging	Cut Tape (CT)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SKY13270 92LF SKY1327092LF 863 1048 1 ND 86310481ND 863-1048-1

SKY13270-92LF General Description

GaAs SPDT Switch 100 MHz2.5 GHz

The SKY13270-92LF is a PHEMT GaAs FET IC high linearity SPDT switch. This wideband switch has been designed for use from 100 MHz to 2.5 GHz, where extremely high linearity, low control voltage, high isolation, low insertion loss and ultra-miniature package size are required. It can be controlled with positive, negative or a combination of both voltages. The RF signal paths within the SKY13270-92 are fully bilateral. Some standard implementations include T/R switching and diversity switching over 3 W. The SKY13270-92LF switch can be used in many analog and digital wireless communication systems including cellular, GSM and UMTS applications.

SKY13270-92LF Maximum Ratings

Broadband: 100 MHz2.5 GHz
Very low insertion loss: 0.35 dB typical @ 900 MHz
High isolation: 24 dB typical @ 900 MHz
P0.1 dB: +37 dBm typical @ 3 V
Low current consumption: <100 A @ 3 V

SKY13272-340LF General Description

4 x 2 Switch Matrix 250 MHz2.15 GHz

The SKY13272-340LF is a 4-input to 2-output switch in a low cost QFN-20 4 x 4 mm package. The SKY13272-340LF enables 16 states, directing any of the four inputs to either of the two outputs. States are selected by 4 positive voltage control inputs. The switch can operate over the temperature range of -40 °C to 85 °C.

SKY13272-340LF Maximum Ratings

Four inputs, two outputs
Any input can be directed to either output
Only 4 control lines required
High interport isolation: 40 dB typ. up to 0.95 GHz
Miniature QFN-20 4 x 4 mm package

SKY13286-359LF Parameters

Technical/Catalog Information	SKY13286-359LF
Vendor	SKYWORKS SOLUTIONS INC (VA)
Category	RF and RFID
RF Type	GSM, ISM, PCS, WCDMA
Package / Case	16-QFN
Frequency	100MHz ~ 6GHz
Features	SPDT
Packaging	Digi-Reel?
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SKY13286 359LF SKY13286359LF 863 1049 6 ND 86310496ND 863-1049-6

SKY13286-359LF General Description

GaAs High Isolation SPDT Non-Reflective Switch 100 MHz-6 GHz

The SKY13286-359LF is a pHEMT GaAs FET IC high isolation non-reflective switch packaged in a 16-lead exposed pad plastic package for low-cost commercial applications. It is an ideal building block for base station applications where synthesizer isolation is critical. Typical applications include GSM, PCS, WCDMA, 2.4 and 5.8 GHz ISM and wireless local loop.

SKY13286-359LF Maximum Ratings

Single positive voltage control (0/3 to 0/5 V)
High isolation 64 dB at 1 GHz and 2 GHz
Integrated silicon CMOS driver
Non-reflective
Available lead (Pb)-free and RoHS-compliant
