MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:Sod-6 D/C:07+

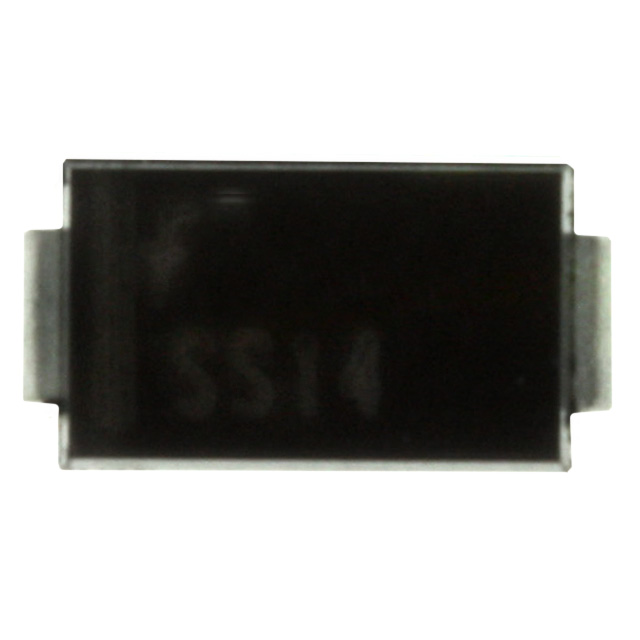

SS14, SS14/11T, SS14/SS14 Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor (VA)
Package Cooled: Sod-6
D/C: 07+
Description: DIODE SCHOTTKY 1A 40V SMA
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SS14
File Size: 69969 KB
Manufacturer: MCC [Micro Commercial Components]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SS1.5-12
File Size: 109256 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SS1.5-12
File Size: 109256 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | SS14 |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 500mV @ 1A |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 200A @ 40V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Packaging | Cut Tape (CT) |
| Capacitance @ Vr, F | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SS14 SS14 SS14CT ND SS14CTND SS14CT |
The SS14 is designed as surface mount schottky barrier rectifier with current of 1.0A.
It has ten features. (1) Plastic package has underwriters laboratory flammability classification 94V-O. (2) For surface mounted applications. (3) Low profile package. (4) Built-in strain relief. (5) Metal to silicon rectifier majority carrier conduction. (6) Low power loss, high efficiency. (7) High current capability, low VF. (8) High surge capacity. (9) For use in low voltage high frequency inverters, free wheeling, and polarity protection applications. (10) High temperature soldering: 260°C 10 seconds at terminals. That are all the main features.
Some absolute maximum ratings and electrical characteristics (Rating 25°C ambient temperature uniess otherwies specified. Resistive or inductive load) have been concluded into several points as follow. (1) Its maximum recurrent peak reverse voltage would be 50V. (2) Its maximum RMS voltage would be max 35V. (3) Its maximum DC blocking voltage would be max 50V. (4) Its maximum average forward rectified current would be 1.0A. (5) Its peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC method) would be 30A. (6) Its maximum instantaneous forward voltage at 3.0A would be 0.70V. (7) Its maximum DC reverse current at rated DC blocking voltage would be 0.5mA at 25°C and would be 20mA at 100°C. (8) Its maximum thermal resistance would be 28°C/W for JL and would be 88°C/W for JA. (9) Its operating junction temperature range would be from -50°C to +125°C. (10) Its storage temperature range would be from -50°C to +150°C.
Also some mechanical data about it. (1) Its case would be JEDEC DO-214AC molded plastic. (2) Its terminals is solder plated, solderable per MIL-STD-750, method 2026. (3) Its polarity is color bank denotes cathode. (4) Its standard packaging is 12mm tape (EIA-481). (5) Its weight: 0.002 ounce, 0.064 gram. And so on. If you have any question or suggestion or want to know more information please contact us for details. Thank you!
