MFG:Analog Devices Inc Category:Integrated Circuits (ICs) Package Cooled:DIP-16 D/C:N/A

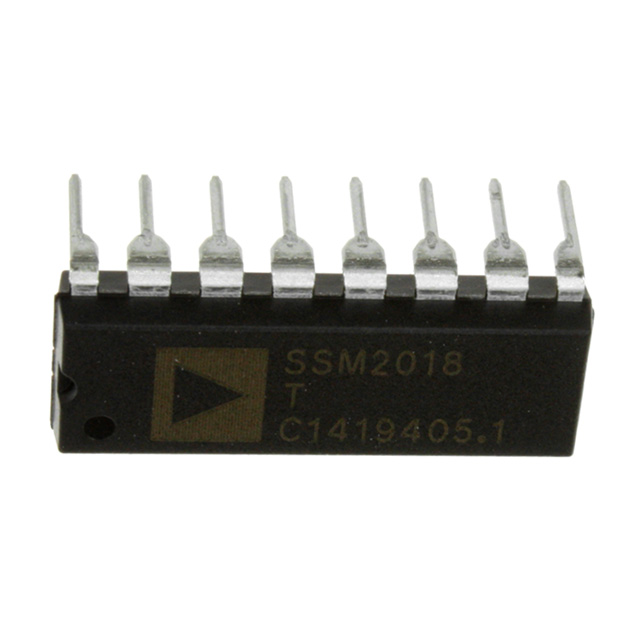

SSM2018T, SSM2018TP, SSM2018TPZ Datasheet download
Category: Integrated Circuits (ICs)
MFG: Analog Devices Inc
Package Cooled: DIP-16
D/C: N/A
Description: IC AMP AUDIO MONO CLASS AB 16DIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: SSM2018T
File Size: 619083 KB
Manufacturer: AD [Analog Devices]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SSM2018TP
File Size: 619083 KB
Manufacturer: AD [Analog Devices]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: SSM01N60
File Size: 109472 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
The SSM2018T and SSM2118T represent continuing evolution of the Frey Operational Voltage Controlled Element (OVCE) topology that permits flexibility in the design of high performance volume control systems. Voltage (SSM2018T) and differential current (SSM2118T) output versions are offered, both laser-trimmed for gain core symmetry and offset. As a result, the SSM2018T is the first professional audio quality VCA to offer trimless operation. The SSM2118T is ideal for low noise summing in large VCA based systems.
Due to careful gain core layout, the SSM2018T/SSM2118T combine the low noise of Class AB topologies with the low distortion of Class A circuits to offer an unprecedented level of sonic transparency. Additional features include differential inputs, a 140 dB gain range, and a high impedance control port. The SSM2018T provides an internal current-to-voltage converter; thus no external active components are required. The SSM2118T has fully differential current outputs that permit high noise-immunity summing of multiple channels.
Both devices are offered in 16-pin plastic DIP and SOIC packages and guaranteed for operation over the extended industrial
| Technical/Catalog Information | SSM2018TP |
| Vendor | Analog Devices Inc |
| Category | Integrated Circuits (ICs) |
| Package / Case | 16-DIP (300 mil) |
| Type | Class AB |
| Output Type | 1-Channel (Mono) |
| Voltage - Supply | 10 V ~ 36 V, ±5 V ~ 18 V |
| Packaging | Tube |
| Features | Differential Inputs, Volume Control |
| Max Output Power x Channels @ Load | - |
| RoHS Status | RoHS Non-Compliant |
| Other Names | SSM2018TP SSM2018TP |
| Technical/Catalog Information | SSM2018TPZ |
| Vendor | Analog Devices Inc |
| Category | Integrated Circuits (ICs) |
| Package / Case | 16-DIP (300 mil) |
| Type | Class AB |
| Output Type | 1-Channel (Mono) |
| Voltage - Supply | 10 V ~ 36 V, ±5 V ~ 18 V |
| Packaging | Tube |
| Features | Differential Inputs, Volume Control |
| Max Output Power x Channels @ Load | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | SSM2018TPZ SSM2018TPZ |
