ST1-DC12V, ST1-DC24V, ST1-DC48V

Table of contents:
Info of ST1-DC12V
Info of ST1-DC24V
Info of ST1-DC48V

ST1-DC12V, ST1-DC24V, ST1-DC48V Selling Leads, Datasheet

MFG:Panasonic Electric Works Category:Relays Package Cooled:RELAY D/C:2006

ST1-DC12V, ST1-DC24V, ST1-DC48V Datasheet download

Five Points

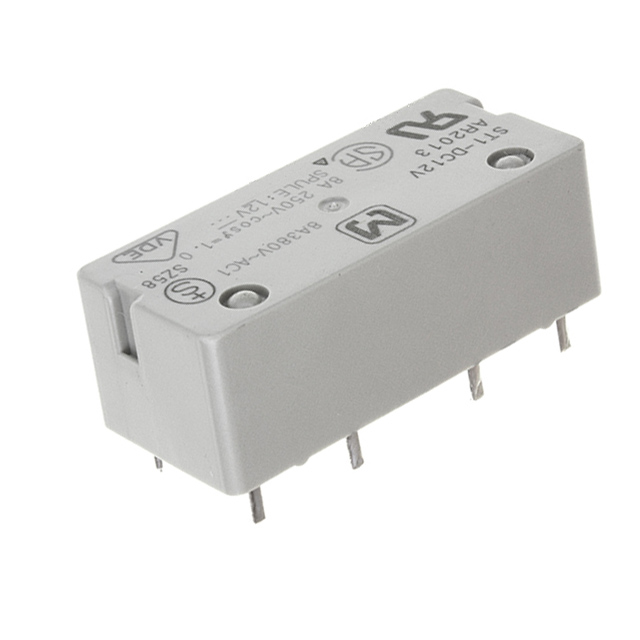

Part Number: ST1-DC12V

Category: Relays

MFG: Panasonic Electric Works

Package Cooled: RELAY

D/C: 2006

Description: RELAY POWER 8A 48VDC PCB

Price Break

1
25
50
100
500
1000
5000
10000
25000

Unit Price

13.03000
11.97000
10.64000
9.04400
7.98000
7.71400
7.44800
7.07560
6.91600

Extended Price

13.03
299.25
532.00
904.40
3990.00
7714.00
37240.00
70756.00
172900.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ST1-DC12V Parameters

Technical/Catalog Information	ST1-DC12V
Vendor	Panasonic Electric Works
Category	Relays
Relay Type	General Purpose
Mounting Type	Through Hole
Termination Style	PC Pin
Circuit	DPST-NO/NC (1 Form A and B)
Contact Rating @ Voltage	8A @ 380VAC
Coil Voltage	12VDC
Control Off Voltage (Min)	1.2 VDC
Control On Voltage (Max)	9.6 VDC
Coil Current	20mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ST1 DC12V ST1DC12V 255 1289 ND 2551289ND 255-1289

ST1-DC24V Parameters

Technical/Catalog Information	ST1-DC24V
Vendor	Panasonic Electric Works
Category	Relays
Relay Type	General Purpose
Mounting Type	Through Hole
Termination Style	PC Pin
Circuit	DPST-NO/NC (1 Form A and B)
Contact Rating @ Voltage	8A @ 380VAC
Coil Voltage	24VDC
Control Off Voltage (Min)	2.4 VDC
Control On Voltage (Max)	19.2 VDC
Coil Current	10mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ST1 DC24V ST1DC24V 255 1290 ND 2551290ND 255-1290

ST1-DC48V Parameters

Technical/Catalog Information	ST1-DC48V
Vendor	Panasonic Electric Works
Category	Relays
Relay Type	General Purpose
Mounting Type	Through Hole
Termination Style	PC Pin
Circuit	DPST-NO/NC (1 Form A and B)
Contact Rating @ Voltage	8A @ 380VAC
Coil Voltage	48VDC
Control Off Voltage (Min)	4.8 VDC
Control On Voltage (Max)	38.4 VDC
Coil Current	5.3mA
Coil Type	Standard
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ST1 DC48V ST1DC48V
