STTH30L06W, STTH30R03, STTH30R03CG Datasheet download
Category: Discrete Semiconductor Products
MFG: STMicroelectronics
Package Cooled: DO 247
D/C: TO
Description: DIODE SECONDARY 300V 15A D2PAK
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: STT+5V
File Size: 129276 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: STTH30R03
File Size: 80493 KB
Manufacturer: STMicroelectronics
Download : Click here to Download
PDF/DataSheet Download
Datasheet: STTH30R03CG
File Size: 65528 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download

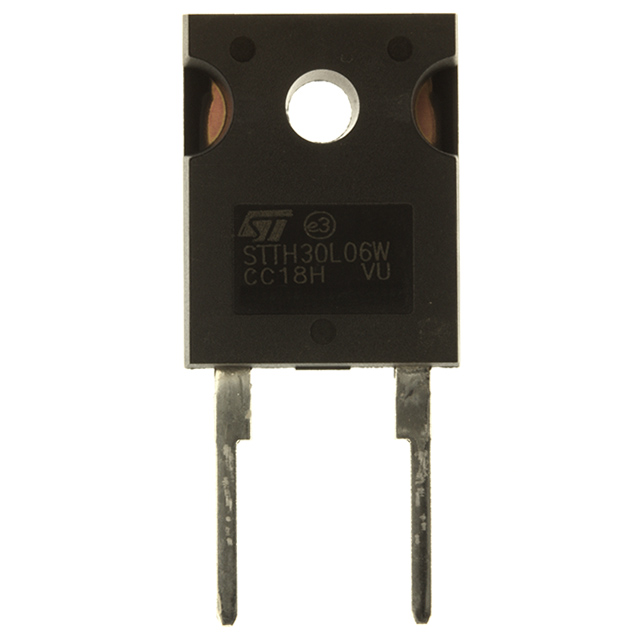

| Technical/Catalog Information | STTH30L06W |
| Vendor | STMicroelectronics |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600V |
| Current - Average Rectified (Io) | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.55V @ 30A |
| Reverse Recovery Time (trr) | 90ns |
| Current - Reverse Leakage @ Vr | 25A @ 600V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | DO-247-2 (Straight Leads) |
| Packaging | Tube |
| Capacitance @ Vr, F | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | STTH30L06W STTH30L06W 497 4411 5 ND 49744115ND 497-4411-5 |
| Technical/Catalog Information | STTH30R03CG |
| Vendor | STMicroelectronics |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Diode Configuration | 1 Pair Common Cathode |
| Voltage - DC Reverse (Vr) (Max) | 300V |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 1.9V @ 15A |
| Current - Reverse Leakage @ Vr | 20A @ 300V |
| Reverse Recovery Time (trr) | 35ns |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | D²Pak, SMD-220, TO-263 (2 leads + tab) |
| Packaging | Tube |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | STTH30R03CG STTH30R03CG |
| Symbol | Parameter | Value | Unit | ||
| VRRM | Repetitive peak reverse voltage | 300 | V | ||
| IF(RMS) | RMS forward current | 30 | A | ||
| IF(AV) | Average forward current | Tc = 120 § = 0.5 |
Per diode Per device |
15 30 |
A |
| IFSM | Surge non repetitive forward current | tp = 10 ms sinusoidal | 20 | A | |
| Tstg | Storage temperature range | - 65 + 175 | |||
| Tj | Maximum operating junction temperature | + 175 | |||
