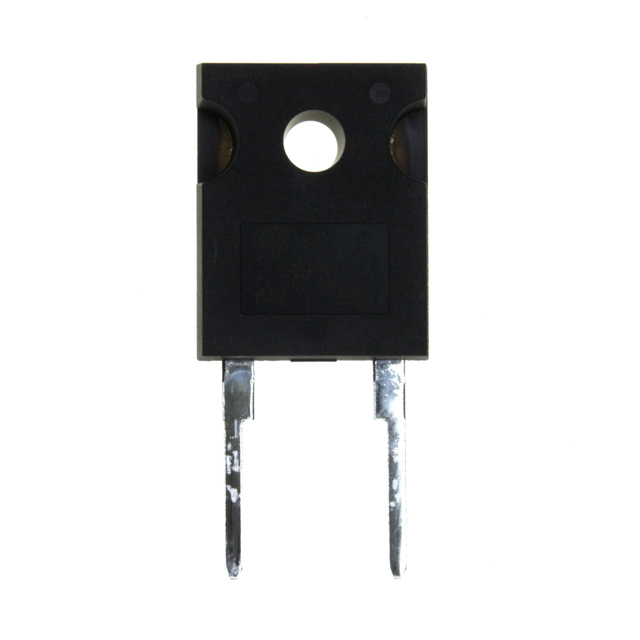

MFG:STMicroelectronics Category:Discrete Semiconductor Products Package Cooled:DO 247 D/C:06+07+pb-free
STTH6010W, STTH6012, STTH6012W Datasheet download
Category: Discrete Semiconductor Products
MFG: STMicroelectronics
Package Cooled: DO 247
D/C: 06+07+pb-free
Description: DIODE ULT FAST 1200V 60A DO-247
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: STT+5V
File Size: 129276 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: STT+5V
File Size: 129276 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: STT+5V
File Size: 129276 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | STTH6010W |
| Vendor | STMicroelectronics |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000V (1kV) |
| Current - Average Rectified (Io) | 60A |
| Voltage - Forward (Vf) (Max) @ If | 2V @ 60A |
| Reverse Recovery Time (trr) | 115ns |
| Current - Reverse Leakage @ Vr | 20A @ 1000V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | DO-247-2 (Straight Leads) |
| Packaging | Tube |
| Capacitance @ Vr, F | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | STTH6010W STTH6010W 497 5160 5 ND 49751605ND 497-5160-5 |
| Technical/Catalog Information | STTH6012W |
| Vendor | STMicroelectronics |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200V (1.2kV) |
| Current - Average Rectified (Io) | 60A |
| Voltage - Forward (Vf) (Max) @ If | 2.25V @ 60A |
| Reverse Recovery Time (trr) | 125ns |
| Current - Reverse Leakage @ Vr | 30A @ 1200V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | DO-247-2 (Straight Leads) |
| Packaging | Tube |
| Capacitance @ Vr, F | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | STTH6012W STTH6012W 497 5161 5 ND 49751615ND 497-5161-5 |
