STTH60L06CW, STTH60L06W, STTH60P03S

Table of contents:
Info of STTH60L06CW
Info of STTH60L06W
Info of STTH60P03S

STTH60L06CW, STTH60L06W, STTH60P03S Selling Leads, Datasheet

MFG:STMicroelectronics Category:Discrete Semiconductor Products Package Cooled:TO 247 D/C:08+/09+

STTH60L06CW, STTH60L06W, STTH60P03S Datasheet download

Five Points

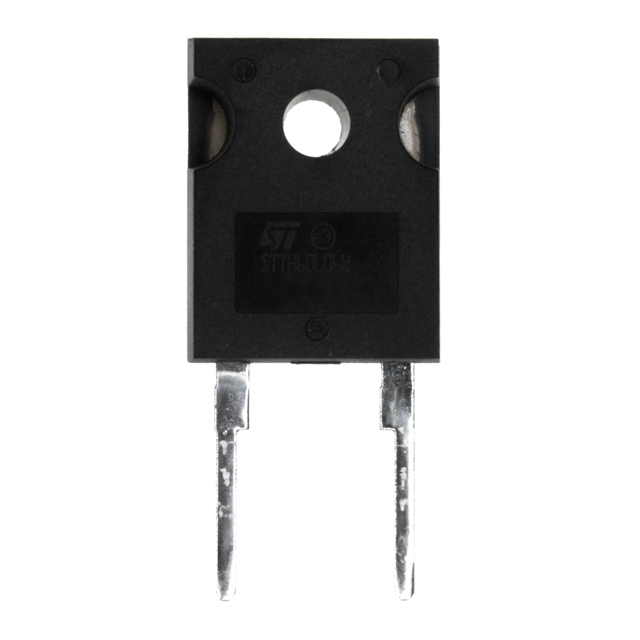

Part Number: STTH60L06W

Category: Discrete Semiconductor Products

MFG: STMicroelectronics

Package Cooled: TO 247

D/C: 08+/09+

Description: DIODE FAST 600V 60A DO247

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

STTH60L06CW General Description

STTH60L06CW Maximum Ratings

Symbol	Parameter				Value	Unit
V_RRM	Repetitive peak reverse voltage				600	V
I_F(RMS)	RMS forward voltage				60	A
I_F(AV)	Average forward current =0.5	Tc = 125°C Tc = 110°C		Per diode Per device	30 60	A
		Tc = 100°C Tc = 80°C		Per diode Per device	40 80
I_FSM	Surge non repetitive forward current		tp = 10 ms Sinusoidal		210	A
T_stg	Storage temperature range				- 65 + 175	°C
T_j	Maximum operating junction temperature				175	°C

STTH60L06CW Features

Ultrafast switching
Low reverse current
Low thermal resistance
Reduces switching & conduction losses

STTH60L06W Parameters

Technical/Catalog Information	STTH60L06W
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	60A
Voltage - Forward (Vf) (Max) @ If	1.55V @ 60A
Reverse Recovery Time (trr)	105ns
Current - Reverse Leakage @ Vr	50A @ 600V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Through Hole, Radial
Package / Case	DO-247-2 (Straight Leads)
Packaging	Tube
Capacitance @ Vr, F	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	STTH60L06W STTH60L06W 497 3799 5 ND 49737995ND 497-3799-5

STTH60L06W General Description

The STTH60L06, which is using ST Turbo 2 600V technology, is specially suited for use in switching power supplies, and industrial applications, as rectification and discontinuous mode PFC boost diode. Thanks to its low V_F characteristics, this device exhibits high performances in freewheeling applications.

STTH60L06W Maximum Ratings

Symbol	Parameter		Value	Unit
V_RRM	Repetitive peak reverse voltage		600	V
I_F(RMS)	RMS forward current		90	A
I_FRM	Repetitive peak forward current	Tc = 110°C = 0.5	60	A
I_FSM	Surge non repetitive forward current	tp = 10ms sinusoidal	400	A
T_stg	Storage temperature range		- 65 to + 175	°C
T_j	Maximum operating junction temperature		175	°C

STTH60L06W Features

Ultrafast switching
Low reverse current
Low thermal resistance
Reduces switching & conduction losses

STTH60P03S General Description

The STTH60P03SW is an Ultrafast Recovery Power Rectifier dedicated to energy recovery in PDP application.The key parameters of the DERC diode for the energy recovery cicuit have been optimized in order to decrease power losses.

STTH60P03S Maximum Ratings

Symbol	Parameter		Value	Unit
V_RRM	Repetitive peak reverse voltage		300	V
I_F(RMS)	RMS forward voltage		80	A
I_F(AV)	Average forward current		60	A
I_FSM	Surge non repetitive forward current	tp =10ms sinusoidal	250	A
I_FRM	Forward repetitive peak surge current	F=200 kHz,tp=500 ns Sinusoidal waveform, Tc = 155	150	A
T_stg	Storage temperature range		-65 to + 175
T_j	Maximum operating junction temperature		175

STTH60P03S Features

·Ultrafast recovery allowing High Sustain Frequency
·Decrease charge evacuation time in the inductance (see figure 1)
·Minimize switching-on and total power losses
·Increase luminuous efficiency and brightness
·Soft and noise-free recovery
·High surge capability
·High junction temperature
