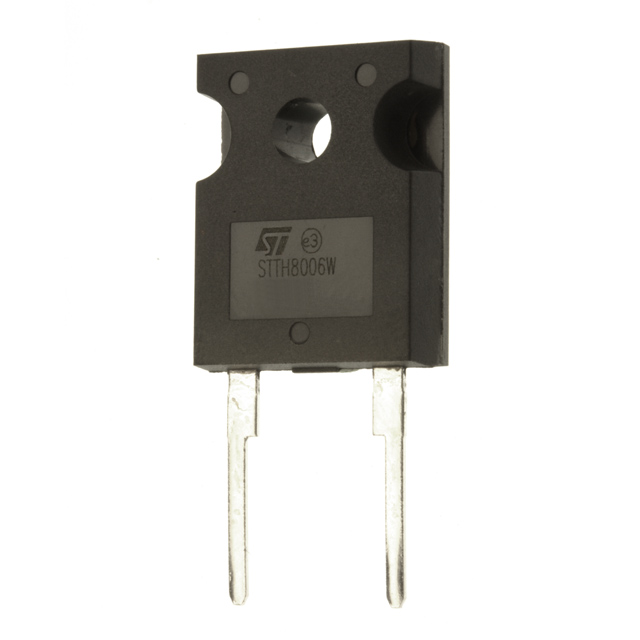

STTH8006W, STTH806DI, STTH806F Datasheet download
Category: Discrete Semiconductor Products
MFG: STMicroelectronics
Package Cooled: DO 247
D/C: 08+/09+
Description: DIODE ULT FAST 600V 80A DO-247
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: STT+5V
File Size: 129276 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: STT+5V
File Size: 129276 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: STTH806F
File Size: 92369 KB
Manufacturer: STMicro
Download : Click here to Download
| Technical/Catalog Information | STTH8006W |
| Vendor | STMicroelectronics |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600V |
| Current - Average Rectified (Io) | 80A |
| Voltage - Forward (Vf) (Max) @ If | 1.6V @ 80A |
| Reverse Recovery Time (trr) | 105ns |
| Current - Reverse Leakage @ Vr | 50A @ 600V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Through Hole, Radial |
| Package / Case | DO-247-2 (Straight Leads) |
| Packaging | Tube |
| Capacitance @ Vr, F | - |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | STTH8006W STTH8006W 497 7605 5 ND 49776055ND 497-7605-5 |
|
Symbol |
Parameter |
Value
|
Unit | ||
|
VRRM |
Repetitive peak reverse voltage |
600 |
V | ||
|
IF(RMS) |
RMS forward current |
20
|
A | ||
|
IF(AV) |
Average forward current = 0.5 |
TO-220AC ISOWATT220AC |
Tc = 110°C Tc = 60°C |
8 |
A |
|
IFSM |
Surge non repetitive forward current |
tp = 10 ms sinusoidal |
50 |
A | |
|
Tstg |
storage temperature range |
-65 +175 |
°C
| ||
|
Tj |
Maximum operating junction temperature |
+175 |
°C | ||
·COMBINES HIGHEST RECOVERY AND VOLTAGE PERFORMANCE.
·ULTRA-FAST, SOFT AND NOISE-FREE RECOVERY FOR LOW SIDE EFFECTS.
·LOW INDUCTANCE, LOW CAPACITANCE (ISOWATT220AC = 12 pF), ALLOWS SIMPLIFIED LAYOUT.
