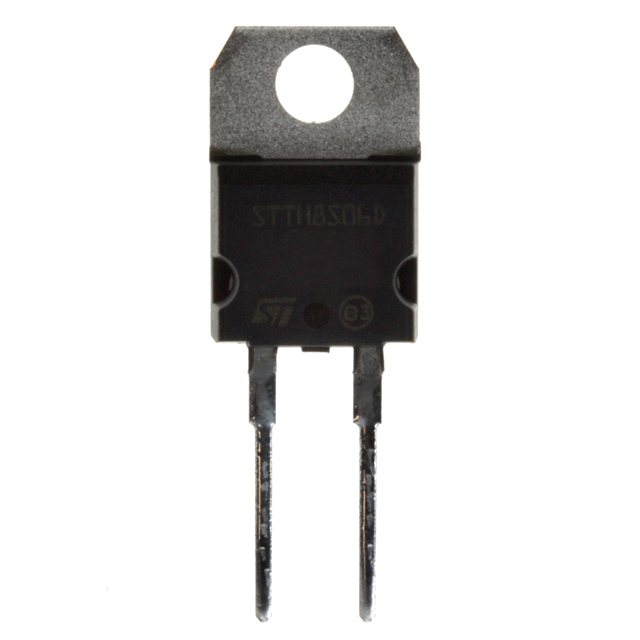

Part Number: STTH8S06D

Category: Discrete Semiconductor Products

MFG: STMicroelectronics

Package Cooled: 9800

D/C: TO

Description: DIODE ULT FAST 600V 8A TO-220AC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

STTH8R06R General Description

The STTH8R06D/FP/G/R, which is using ST 600V technology, is specially suited as boost diode in continuous mode power factor corrections and hard switching conditions.

The device is also intended for use as a free wheeling diode in power supplies and other power switching applications.

STTH8R06R Maximum Ratings

Symbol	Parameter		Value	Unit
V_RRM	Repetitive peak reverse voltage		600	V
I_F(RMS)	RMS forward current		30	A
I_F(AV)	Average forward current d = 0.5	TO-220AC Tc = 130°C D2PAK / I2PAK Tc = 130°C TO-220FPAC Tc = 85°C	8	A
I_FSM	Surge non repetitive forward current	tp = 10 ms Sinusoidal	80	A
T_stg	Storage temperature range		- 65 + 175	°C
T_j	Maximum operating junction temperature		+ 175	°C
R_th _(j-c)	Junction to case	TO-220AC/D2PAK/I2PAK TO-220FPAC	2.2 4.6	°C/W

STTH8R06R Features

Ultrafast switching
Low reverse recovery current
Reduces switching losses
Low thermal resistance

STTH8S06D Parameters

Technical/Catalog Information	STTH8S06D
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	8A
Voltage - Forward (Vf) (Max) @ If	3.4V @ 8A
Reverse Recovery Time (trr)	18ns
Current - Reverse Leakage @ Vr	20A @ 600V
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Mounting Type	Through Hole, Radial
Package / Case	TO-220-2 (Straight Leads)
Packaging	Tube
Capacitance @ Vr, F	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	STTH8S06D STTH8S06D 497 9065 5 ND 49790655ND 497-9065-5
