SY89200U, SY89200UMG, SY89200UMI

SY89200U, SY89200UMG, SY89200UMI Selling Leads, Datasheet

MFG:Micrel Inc  Category:Integrated Circuits (ICs)  Package Cooled:QFN  D/C:05+

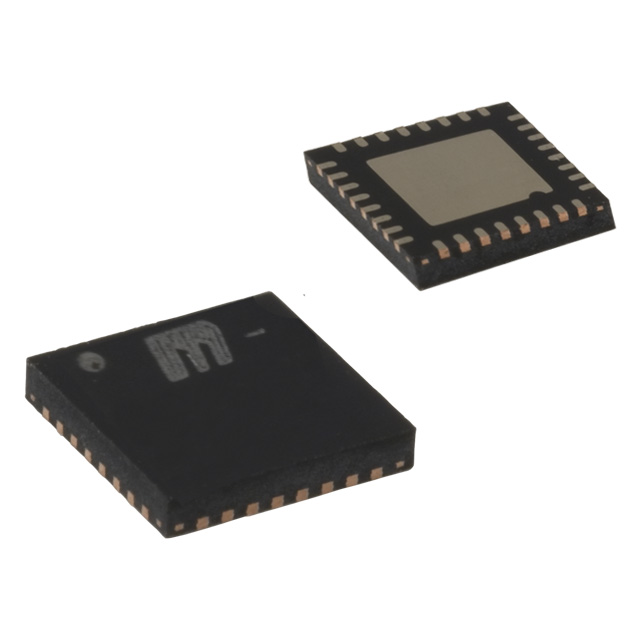

SY89200UMG Picture

SY89200U, SY89200UMG, SY89200UMI Datasheet download

Five Points

Part Number: SY89200UMG

Category: Integrated Circuits (ICs)

MFG: Micrel Inc

Package Cooled: QFN

D/C: 05+

Description: IC CLK DIVIDER LVDS FANOUT 32MLF






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

SY89200U Suppliers

More SY89200U Suppliers

Select All

  • SY89200UMG

  • D/C: 10+& Qty: 10000 Note: our new and original stock in China  Adddate: 2024-03-29
  • Inquire Now
  • shanghhai xinshen   China
    Contact: Mr.Mrliu   MSN:ldstar8@msn.com
    Tel: 0086-0755-18955684138
    Fax: 0086-0755-22142437
    (22)
  • SY87700LHG

  • D/C: 10+& Qty: 10000 Note: our new and original stock in China  Adddate: 2024-03-29
  • Inquire Now
  • shanghhai xinshen   China
    Contact: Mr.Mrliu   MSN:ldstar8@msn.com
    Tel: 0086-0755-18955684138
    Fax: 0086-0755-22142437
    (22)

About SY8.2

PDF/DataSheet Download

Datasheet: SY8.2

File Size: 80720 KB

Manufacturer: SEMTECH [Semtech Corporation]

Download : Click here to Download

Related PDF Download

Related Part Number

SY89200UMG Suppliers

More SY89200UMG Suppliers

Select All

  • SY89200UMG

  • D/C: 10+& Qty: 10000 Note: our new and original stock in China  Adddate: 2024-03-29
  • Inquire Now
  • shanghhai xinshen   China
    Contact: Mr.Mrliu   MSN:ldstar8@msn.com
    Tel: 0086-0755-18955684138
    Fax: 0086-0755-22142437
    (22)
  • SY87700LHG

  • D/C: 10+& Qty: 10000 Note: our new and original stock in China  Adddate: 2024-03-29
  • Inquire Now
  • shanghhai xinshen   China
    Contact: Mr.Mrliu   MSN:ldstar8@msn.com
    Tel: 0086-0755-18955684138
    Fax: 0086-0755-22142437
    (22)

About SY8.2

PDF/DataSheet Download

Datasheet: SY8.2

File Size: 80720 KB

Manufacturer: SEMTECH [Semtech Corporation]

Download : Click here to Download

Related PDF Download

Related Part Number

SY89200UMI Suppliers

More SY89200UMI Suppliers

Select All

  • SY87700LHG

  • D/C: 10+& Qty: 10000 Note: our new and original stock in China  Adddate: 2024-03-29
  • Inquire Now
  • shanghhai xinshen   China
    Contact: Mr.Mrliu   MSN:ldstar8@msn.com
    Tel: 0086-0755-18955684138
    Fax: 0086-0755-22142437
    (22)

About SY8.2

PDF/DataSheet Download

Datasheet: SY8.2

File Size: 80720 KB

Manufacturer: SEMTECH [Semtech Corporation]

Download : Click here to Download

Related PDF Download

Related Part Number

SY89200U General Description

The SY89200U is a 2.5V precision, high-speed, integrated clock divider and LVDS fanout buffer capable of handling clocks up to 1.5GHz. Optimized for communications applications, the three independently controlled output banks are phase matched and can be configured for pass through (÷1), ÷2 or ÷4 divider ratios.

The differential input includes Micrel's unique, 3-pin input termination architecture that allows the user to interface to any differential signal (AC or DC-coupled) as small as 200mVpp without any level shifting or termination resistor networks in the signal path. The low-skew, low-jitter outputs are LVDS compatible with extremely fast rise/fall times guaranteed to be less than 150ps.

The EN (enable) input guarantees that the ÷1, ÷2 and ÷4 outputs will start from the same state without any runt pulse after an asynchronous master reset (MR) is asserted. This is accomplished by enabling the outputs after a four-clock delay to allow the counters to synchronize.

The SY89200U is part of a Micrel's Precision Edge product family. All support documentation can be found at Micrel's web site at www.micrel.com.

SY89200UMG Parameters

Technical/Catalog InformationSY89200UMG
VendorMicrel Inc
CategoryIntegrated Circuits (ICs)
TypeFanout Buffer
Voltage - Supply2.375 V ~ 2.625 V
Number of Outputs8
InputDifferential
OutputLVDS
Frequency-Max1.5GHz
Package / Case32-MLF?
PackagingTube
Operating Temperature-40°C ~ 85°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names SY89200UMG
SY89200UMG
576 1417 ND
5761417ND
576-1417

SY89200UMI Parameters

Technical/Catalog InformationSY89200UMI
VendorMicrel Inc
CategoryIntegrated Circuits (ICs)
TypeFanout Buffer
Voltage - Supply2.375 V ~ 2.625 V
Number of Outputs8
InputDifferential
OutputLVDS
Frequency-Max1.5GHz
Package / Case32-MLF?
PackagingTray
Operating Temperature-40°C ~ 85°C
Drawing Number*
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names SY89200UMI
SY89200UMI
