SY87724L

Features: Protocol transparent mux/demux operation up to 2.7GHz Programmable to 4, 5, 8, or 10 bit parallel interfaces Differential clock and serial inputs/outputs Easily controlled by framer logic Synchronous frame boundary indication HSPC (High Speed PECL Compatible) inputs and outputs 3.3V powe...

product image

SY87724L Picture
See larger image
SeekIC No. : 004510236 Detail

SY87724L: Features: Protocol transparent mux/demux operation up to 2.7GHz Programmable to 4, 5, 8, or 10 bit parallel interfaces Differential clock and serial inputs/outputs Easily controlled by framer logic ...

SY87724L Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SY87724L
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Protocol transparent mux/demux operation up to 2.7GHz
Programmable to 4, 5, 8, or 10 bit parallel interfaces
Differential clock and serial inputs/outputs
Easily controlled by framer logic
Synchronous frame boundary indication
HSPC (High Speed PECL Compatible) inputs and outputs
3.3V power supply
Available in 80-pin LQFP-PQ2 package




Application

OC-3, OC-12, OC-48, ATM, InfiniBand
Gigabit Ethernet
Fibre Channel, 2X Fibre Channel
SMPTE-259 and 292
Proprietary optical transport
ITU G. 975 Solutions




Pinout

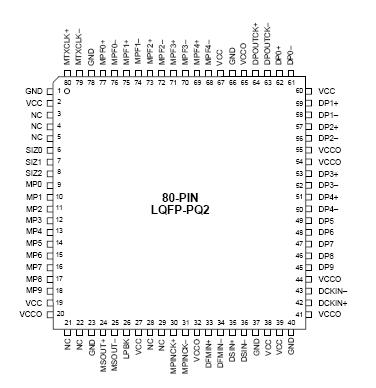

Connection Diagram




Specifications

Symbol Parameter Value Unit
VCC Power Supply Voltage 0.5 to +3.8 V
VI Input Voltage 0.5 to VCC(2) V
IOUT ECL Output Current
- Continuous
- Surge		 50
100		 mA
Tstore Storage Temperature Range 65 to +150 °C
TA Operating Temperature Range 40 to +85 °C
2. The maximum value is specified at VCC up to VCC = +6V.




Description

The SY87724L is a complete serial data multiplexer and demultiplexer, capable of operating at up to 2.7GHz. The device provides for muxing and demuxing to 4, 5, 8, or 10 bit wide buses.

The SY87724L can accept a synchronous code group or octet boundary input, and uses this input for parallel data alignment.

The SY87724L is manufactured in Micrel's high performance ASSET2™ silicon bipolar process. Micrel provides a complete protocol transparent solution with the AnyRate™ SY87721L CDR/CMU SY87729L, and the SY87724L integrated mux/demux
