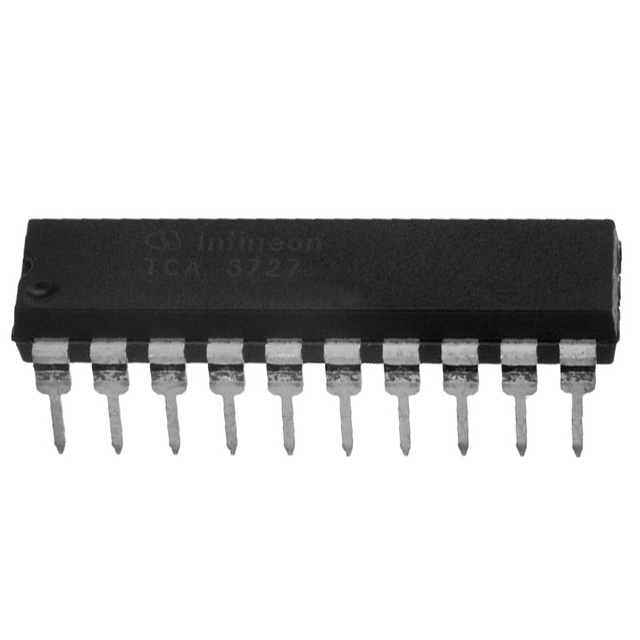

MFG:Infineon Technologies Category:Integrated Circuits (ICs) Package Cooled:DIP20 D/C:DIP
TCA3727, TCA3727G, TCA388 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Infineon Technologies
Package Cooled: DIP20
D/C: DIP
Description: IC DRIVER STEPPER MOTOR DSO-24
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: TCA3727
File Size: 374572 KB
Manufacturer: SIEMENS [Siemens Semiconductor Group]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TCA3727G
File Size: 374572 KB
Manufacturer: SIEMENS [Siemens Semiconductor Group]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TCA0372
File Size: 162228 KB
Manufacturer: MOTOROLA [Motorola, Inc]
Download : Click here to Download
| Technical/Catalog Information | TCA3727 |
| Vendor | Infineon Technologies |
| Category | Integrated Circuits (ICs) |
| Applications | Stepper Motor Driver, 2 Phase |
| Number of Outputs | 2 |
| Voltage - Supply | 5 V ~ 50 V |
| Voltage - Load | - |
| Current - Output | 750mA |
| Operating Temperature | -40°C ~ 110°C |
| Package / Case | 20-DIP |
| Packaging | Tube |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | TCA3727 TCA3727 TCA3727IN ND TCA3727INND TCA3727IN |
The TCA3727 is a kind of 2-phase stepper-motor driver.It is a bipolar, monolithic IC for driving bipolar stepper motors, DC motors and other inductive loads that operate on constant current.The control logic and power output stages for two bipolar windings are integrated on a single chip which permits switched current control of motors with 0.75 A per phase at operating votlages up to 50 V.
Features of the TCA3727 are:(1)2 x 0.75 amp./50 V outputs; (2)integrated driver, control logic and current control(chopper); (3)fast free-wheeling diodes; (4)max.supply voltage 52 V; (5)outputs free of crossover current; (6)offset-phase turn-ON of output stages; (7)Z-diode for logic supply; (8)low standby-current gain; (9)full, half, quarter,mini step.
The absolute maximum ratings of the TCA3727 can be summarized as:(1): supply voltage(Vs) is 0 V min and 52 V max; (2): logic supply voltage(VL) is 0 V min and 6.5 V max; (3): Z-current of VL (IL) is 50 mA max; (4): output current(IQ) is -1 A min and 1 A max; (5): ground current(IGND) is -2 A min and 2 A max; (6): logic inputs(VIXX) is -6 V min and VL+0.3 V max(IXX;phase 1,2;inhibit).
| Technical/Catalog Information | TCA3727G |
| Vendor | Infineon Technologies |
| Category | Integrated Circuits (ICs) |
| Applications | Stepper Motor Driver, 2 Phase |
| Number of Outputs | 2 |
| Voltage - Supply | 5 V ~ 50 V |
| Voltage - Load | - |
| Current - Output | 750mA |
| Operating Temperature | -40°C ~ 110°C |
| Package / Case | DSO-24 |
| Packaging | Tape & Reel (TR) |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | TCA3727G TCA3727G |
