Features:

· Lower open-loop current consumption; IS < 1 mA
· Lower output saturation voltage
· The temperature dependence of the switching distance is lower and compensation of the resonant circuit TC (temperature coefficient) is easier
· The sensitivity is higher, so that larger switching distances are possible and coils of a lower quality can be used
· The switching hysteresis remains constant as regards temperature, supply voltage and switching distance
· The TCA 305 even functions without external integrating capacitor. With an external capacitor (or with RC combination) good noise immunity can be achieved
· The outputs are temporarily short-circuit proof (approx.
10 s to 1 min depending on package)
· The outputs are disabled when VS < approx. 4.5 V and are enabled when the oscillator stabilizes (from VS min = 5 V)
· Higher switching frequencies can be obtained
· Miniature package


Pinout

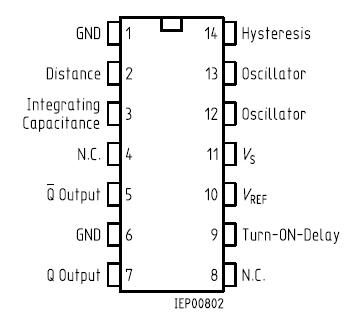

Connection Diagram


Specifications

Parameter
Symbol
 LimitValues
Unit
Supply voltage
VS
35
V
Output voltage
VQ
35
V
Output current
IQ
50
mA
Distance, hysteresis resistance
RDi, RHy
0
W
Capacitances
CI, CD
5
mF
Junction temperature
Tj
150
°C
Storage temperature range
Tstg
55 to 125
°C
Thermal resistance
system - air TCA 305 A
Rth SA
85 (135)2)
K/W
TCA 305 G
Rth SA
140 (200)2)
K/W
Supply voltage
VS
5 to 303)
V
Oscillator frequency
fOSC
0.015 to 1.5
MHz
Ambient temperature
TA
25 to 85
°C
