TMS320F2808GGMA, TMS320F2808GGMS, TMS320F2808PZA

Table of contents:
Info of TMS320F2808GGMA
Info of TMS320F2808GGMS
Info of TMS320F2808PZA

TMS320F2808GGMA, TMS320F2808GGMS, TMS320F2808PZA Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:TI D/C:2006+

TMS320F2808GGMA, TMS320F2808GGMS, TMS320F2808PZA Datasheet download

Five Points

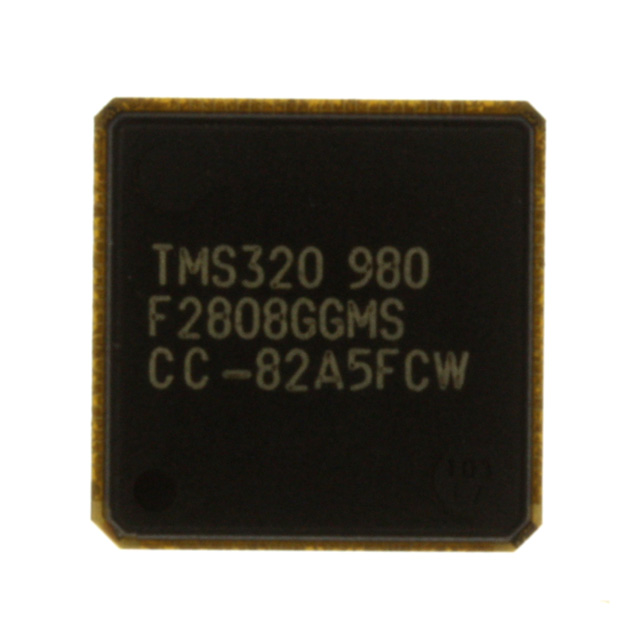

Part Number: TMS320F2808GGMS

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: TI

D/C: 2006+

Description: IC DSP W/FLASH 64KX16 100-LQFP

Price Break

1
25
100
250
500
1000

Unit Price

17.40000
16.24000
15.08000
14.79000
14.50000
14.32600

Extended Price

17.40
406.00
1508.00
3697.50
7250.00
14326.00

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

TMS320F2808GGMA Parameters

Technical/Catalog Information	TMS320F2808GGMA
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Package / Case	100-BGA MICROSTAR
Packaging	Tray
Type	Fixed Point
Non-Volatile Memory	FLASH (128 kB), OTP (2 kB), ROM (8 kB)
On-Chip RAM	36kB
Interface	CAN, I²C, SCI, SPI
Voltage - I/O	3.30V
Voltage - Core	1.80V
Clock Rate	100MHz
Operating Temperature	-40°C ~ 85°C
Drawing Number	296; 4145257?3; GGM; 100
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TMS320F2808GGMA TMS320F2808GGMA 296 18332 ND 29618332ND 296-18332

TMS320F2808GGMS Parameters

Technical/Catalog Information	TMS320F2808GGMS
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Package / Case	100-BGA MICROSTAR
Packaging	Tray
Type	Fixed Point
Non-Volatile Memory	FLASH (128 kB), OTP (2 kB), ROM (8 kB)
On-Chip RAM	36kB
Interface	CAN, I²C, SCI, SPI
Voltage - I/O	3.30V
Voltage - Core	1.80V
Clock Rate	100MHz
Operating Temperature	-40°C ~ 125°C
Drawing Number	296; 4145257?3; GGM; 100
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TMS320F2808GGMS TMS320F2808GGMS 296 18333 ND 29618333ND 296-18333

TMS320F2808PZA Parameters

Technical/Catalog Information	TMS320F2808PZA
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Package / Case	100-LQFP
Packaging	Tray
Type	Fixed Point
Non-Volatile Memory	FLASH (128 kB), OTP (2 kB), ROM (8 kB)
On-Chip RAM	36kB
Interface	CAN, I²C, SCI, SPI
Voltage - I/O	3.30V
Voltage - Core	1.80V
Clock Rate	100MHz
Operating Temperature	-40°C ~ 85°C
Drawing Number	296; 4040149; PZ; 100
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TMS320F2808PZA TMS320F2808PZA 296 18334 ND 29618334ND 296-18334

TMS320F2808PZA General Description

Features of the TMS320F2808PZA are:(1)high-performance static CMOS technology:100 MHz (10-ns cycle time) and low-power (1.8-V core, 3.3-V I/O) design and 3.3-V flash voltage;(2)JTAG boundary scan support;(3)high-performance 32-bit CPU:16 x 16 and 32 x 32 MAC operations and atomic operations, fast interrupt response and processing, unified memory programming model;(4)any GPIO A pin can be connected to one of the three external core interrupts;(5)peripheral interrupt expansion (PIE) block that supports all 43 peripheral interrupts;(6)128-bit security key/lock;(7)-40°C to 85°C (PZ, GGM, ZGM);(8)low-power modes and power savings;(9)broad third-party digital motor control support;(10)analysis and breakpoint functions;(11)up to 4 serial peripheral interface (SPI) modules;(12)three 32-bit CPU timers.

The absolute maximum ratings of the TMS320F2808PZA can be summarized as:(1)supply voltage range, VDDIO, VDD3VFL:-0.3 V to 4.6 V;(2)supply voltage range, VDDA2, VDDAIO:-0.3 V to 4.6 V;(3)supply voltage range, VDD:-0.3 V to 2.5 V;(4)supply voltage range, VDD1A18, VDD2A18:-0.3 V to 2.5 V;(5)input voltage range:-0.3 V to 4.6 V;(6)output voltage range:-0.3 V to 4.6 V;(7)input clamp current, IIK:±20 mA;(8)output clamp current, IOK:±20 mA;(9)junction temperature range:-40°C to 150°C;(10)storage temperature range:-65°C to 150°C. If you want to know more information such as the electrical characteristics about the TMS320F2808PZA, please download the datasheet in www.seekic.com or www.chinaicmart.com.
