MFG:C&K Components Category:Switches Package Cooled:NEW AND ORIGINAL D/C:01+
TS01ABE, TS01CBE, TS01D Datasheet download
Category: Switches
MFG: C&K Components
Package Cooled: NEW AND ORIGINAL
D/C: 01+
Description: SWITCH SLIDE SPDT PC MOUNT
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: TS01ABE
File Size: 264634 KB
Manufacturer: ITT Industries
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TS01CBE
File Size: 264634 KB
Manufacturer: ITT Industries
Download : Click here to Download
PDF/DataSheet Download
Datasheet: TS01ABE
File Size: 264634 KB
Manufacturer: ITT Industries
Download : Click here to Download

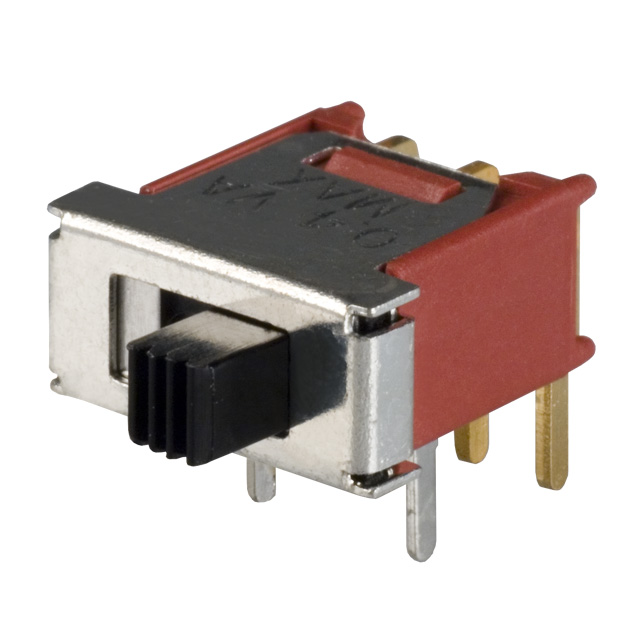

| Technical/Catalog Information | TS01ABE |
| Vendor | C&K Components |
| Category | Switches |
| Mounting Type | Through Hole |
| Circuit | SPDT |
| Switch Function | On-On |
| Contact Rating @ Voltage | 0.4VA @ 20VAC/DC |
| Termination Style | PC Pin |
| Orientation | Right Angle |
| Actuator Type | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TS01ABE TS01ABE CKC5120 ND CKC5120ND CKC5120 |
| Technical/Catalog Information | TS01CBE |
| Vendor | C&K Components |
| Category | Switches |
| Mounting Type | Through Hole |
| Circuit | SPDT |
| Switch Function | On-On |
| Contact Rating @ Voltage | 0.4VA @ 20VAC/DC |
| Termination Style | PC Pin |
| Orientation | Vertical |
| Actuator Type | Standard |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | TS01CBE TS01CBE CKC5122 ND CKC5122ND CKC5122 |
The TS01CBE can be used in test and measurement equipment;computers and peripherals or telecommunications networking equipment.It has some features such as:(1)reliable contact design ensures long electrical life;(2)ratings up to 3 AMPS;(3)epoxy terminal-seal compatible with bottom wash cleaning and (4)RoHS compliant.
Let me show you the important specifications of the TS01CBE:(1)CONTACT RATING: B contact material: 0.4 VA max. @ 20 V AC or DC max. Q contact material (TS01 Model): 3 AMPS @ 120 V AC or 28 V DC; (TS02, TS03 Models): 1 AMP @ 120 V AC or 28 V DC. See page I-10 for additional ratings;(2)ELECTRICAL LIFE:TS01 MODELS: 60,000 make-and-break cycles at full load.TS02, TS03 MODELS: 30,000 cycles;(3)CONTACT RESISTANCE: Below 20 m ½ typ. initial @
2-4 V DC, 100 mA, for both silver and gold plated contacts;(4)OPERATING TEMPERATURE:30ºC to 85ºC;(5)SOLDERABILITY: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging);(6)DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.
Materials of the TS01CBE are:(1)CASE: Glass filled nylon 6/6, flame retardant, heat stabilized, or diallyl phthalate (DAP)(UL 94V-0);(2)ACTUATOR: Nylon, black standard;(3)HOUSING: Stainless steel or stainless steel, nickel plated;(4)END CONTACTS: B contact material: Copper alloy, with gold plate over nickel plate. Q contact material: Coin silver, silver plated. See page I-10 for additional contact materials;(5)CENTER CONTACT & ALL TERMINALS: B contact material: Copper alloy, with gold plate over nickel plate. Q contact material: Copper alloy, silver plated. See page J-9 for additional contact materials;(6)TERMINAL SEAL: Epoxy. Refer to Soldering and Cleaning in Technical Data chapter.
