UMT3904, UMT3904 T106, UMT3904T106

Table of contents:
Info of UMT3904
Info of UMT3904 T106
Info of UMT3904T106

UMT3904, UMT3904 T106, UMT3904T106 Selling Leads, Datasheet

MFG:Rohm Semiconductor Category:Discrete Semiconductor Products Package Cooled:04+ D/C:04+

UMT3904, UMT3904 T106, UMT3904T106 Datasheet download

Five Points

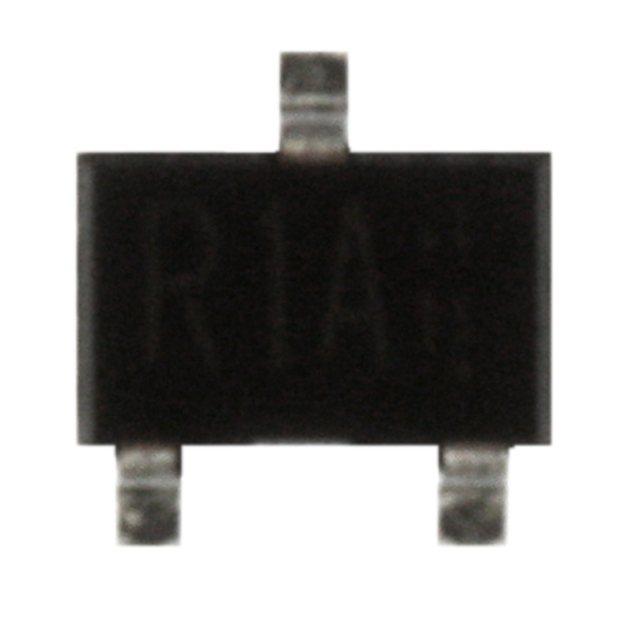

Part Number: UMT3904T106

Category: Discrete Semiconductor Products

MFG: Rohm Semiconductor

Package Cooled: 04+

D/C: 04+

Description: TRANSISTOR NPN 40V 0.2A SOT-323

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

UMT3904 Maximum Ratings

</TABLE

Parameter		Limits	SYMBOL	UNIT
Collector-Base Voltage		80	V_CBO	V
Collector-Emitter Voltage		80	V_CEO	V
Emitter-base voltage		6	I_C	V
Collector current		0.2	I_C	A
Collector power dissipation	UMT3904, SST3904, MMST3904	0.2	PC	mA
	SST3904, MMST3904	0.2		mA
	2N3904	0.625		A*1
Junction temperature		120	mΩ	°C
Power dissipation		150	PC	mW*2
Range of storage temperature		−55~+150	Tstg	°C

UMT3904 Features

1) BVCEO > 40V (IC = 1mA)
2) Complements the UMT3906 / SST3906 / MMST3906/ 2N3906.

UMT3904T106 Parameters

Technical/Catalog Information	UMT3904T106
Vendor	Rohm Semiconductor
Category	Discrete Semiconductor Products
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	40V
Current - Collector (Ic) (Max)	200mA
Power - Max	200mW
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 1V
Vce Saturation (Max) @ Ib, Ic	300mV @ 5mA, 50mA
Frequency - Transition	300MHz
Current - Collector Cutoff (Max)	50nA
Mounting Type	Surface Mount
Package / Case	SC-70-3, SOT-323-3
Packaging	Tape & Reel (TR)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	UMT3904T106 UMT3904T106 UMT3904T106TR ND UMT3904T106TRND UMT3904T106TR
