MFG:Littelfuse Inc Category:Circuit Protection Package Cooled:SOP20 D/C:2007+
V573, V574, V575LA40AP Datasheet download
Category: Circuit Protection
MFG: Littelfuse Inc
Package Cooled: SOP20
D/C: 2007+

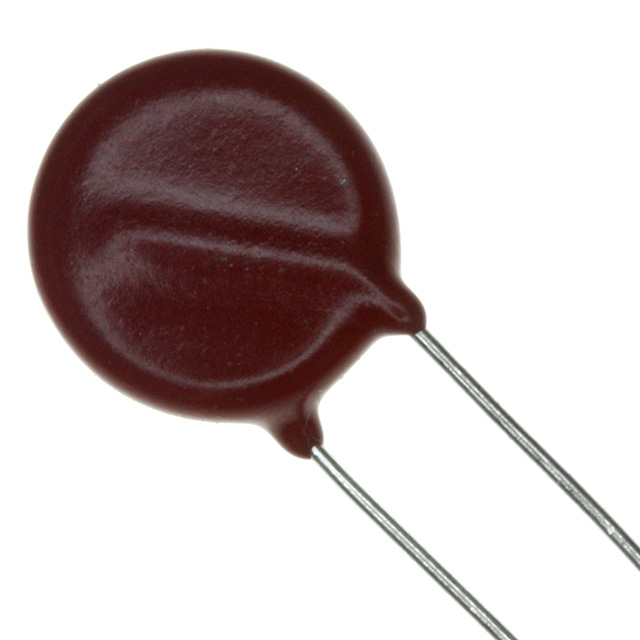

Description: VARISTR 575V 120J 14MM RADIAL LA
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: V571BA60
File Size: 217650 KB
Manufacturer: LITTELFUSE [Littelfuse]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: V571BA60
File Size: 217650 KB
Manufacturer: LITTELFUSE [Littelfuse]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: V575LA40AP
File Size: 1007946 KB
Manufacturer: LITTELFUSE [Littelfuse]
Download : Click here to Download
| Technical/Catalog Information | V575LA40AP |
| Vendor | Littelfuse Inc |
| Category | Circuit Protection |
| Maximum AC Volts | 575Vrms |
| Maximum DC Volts | 730VDC |
| Current-Surge | 4.5kA |
| Package / Case | Disc 14mm |
| Varistor Voltage | 1000V (1kV) |
| Energy | 120J |
| Number of Circuits | 1 - Single |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | V575LA40AP V575LA40AP F3027 ND F3027ND F3027 |
The LA Series of transient voltage surge suppressors are radial-lead varistors (MOVs) that are designed to be operated continuously across AC power lines. These UL recognized varistors require very little mounting space, and are offered in various standard lead form options.
The LA Series varistors are available in four model sizes: 7mm, 10mm, 14mm and 20mm; and have a VM(AC)RMS voltage range from 130V to 1000V, and an energy absorption capability up to 360J. Some LA series model numbers are available with clamping voltage selections, designated by a model number suffix of either A or B. The "A" selection is the standard model; the "B" selection provides a lower clamping voltage.
See LA Series Device Ratings and Specifications table for part number and brand information.
Continuous:
Steady State Applied Voltage:
AC Voltage Range (VM(AC)RMS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 130 to 1000 V
DC Voltage Range (VM(DC) ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . 175 to 1200 V
Transients:
Peak Pulse Current (ITM)
For 8/20s Current Wave (See Figure 2) . . . . . . . . . . . . . . . . . .. .. . . . . . . . . . .. .. . . . . 1200 to 6500 A
Single Pulse Energy Range
For 10/1000s Current Wave (WTM ) . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . .. . ... 11 to 360 J
Operating Ambient Temperature Range (TA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .. .-55 to 85
Storage Temperature Range (TSTG) . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . ... -55 to 125
Temperature Coefficient (V) of Clamping Voltage (VC) at Specified Test Current . . ... . <0.01 %/
Hi-Pot Encapsulation (Isolation Voltage Capability) . . . . . . . . . . . . . . . . . . . . . .. . . . . . . 2500 V
(Dielectric must withstand indicated DC voltage for one minute per MIL-STD 202, Method 301)
Insulation Resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 1000 M
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.
• Lead-free and RoHS compliant option available. Please see the device and ratings specifications table for more information.
• Energy Absorption Capability (WTM) . . .. . . . . . . . . . . . . . . . . Up to 360J
• Wide Operating Voltage Range VM(AC)RMS . . . . . . . . . . . . . 130V to 1000V
• No Derating Up to 85oC Ambient
• Available in Tape and Reel or Bulk Pack
