VIBLSD1-S24-S5-SIP, VIBLSD1-S5-S12-DIP, VIBLSD1-S5-S12-SIP

VIBLSD1-S24-S5-SIP, VIBLSD1-S5-S12-DIP, VIBLSD1-S5-S12-SIP Selling Leads, Datasheet

MFG:CUI Inc  Category:Power Supplies  D/C:08+/09+

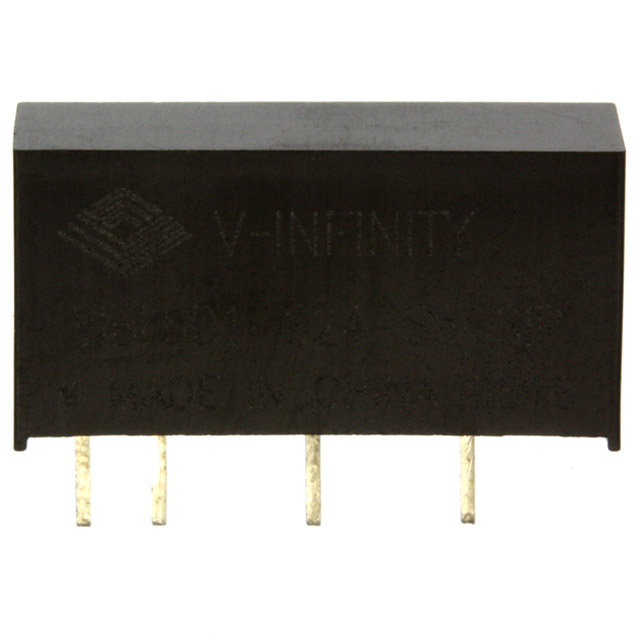

VIBLSD1-S24-S5-SIP Picture

VIBLSD1-S24-S5-SIP, VIBLSD1-S5-S12-DIP, VIBLSD1-S5-S12-SIP Datasheet download

Five Points

Part Number: VIBLSD1-S24-S5-SIP

Category: Power Supplies

MFG: CUI Inc

Package Cooled:

D/C: 08+/09+

Description: CONVERTER DC/DC 12V REG OUT 1W

Price Break

1
10
25
50
100

Unit Price

6.00000
5.85000
5.70000
5.40000
4.95000

Extended Price

6.00
58.50
142.50
270.00
495.00

(All prices are in USD) Prices for reference only
Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

VIBLSD1-S24-S5-SIP Suppliers

More VIBLSD1-S24-S5-SIP Suppliers

Select All

  • VIB0002TFJ

  • Vendor: VIC Qty: ?162 Note: closeout  Adddate: 2024-03-29
  • Inquire Now
  • USA IC LTD. (ASIA)   China
    Contact: Mr.Martin Qiu
    Tel: 86-755-2394-2008
    Fax: 86-755-2394-2068
    (149)

About

PDF/DataSheet Download

Datasheet:

File Size: KB

Manufacturer:

Download : Click here to Download

Related PDF Download

Related Part Number

VIBLSD1-S5-S12-DIP Suppliers

More VIBLSD1-S5-S12-DIP Suppliers

Select All

  • VIB0002TFJ

  • Vendor: VIC Qty: ?162 Note: closeout  Adddate: 2024-03-29
  • Inquire Now
  • USA IC LTD. (ASIA)   China
    Contact: Mr.Martin Qiu
    Tel: 86-755-2394-2008
    Fax: 86-755-2394-2068
    (149)

About

PDF/DataSheet Download

Datasheet:

File Size: KB

Manufacturer:

Download : Click here to Download

Related PDF Download

Related Part Number

VIBLSD1-S5-S12-SIP Suppliers

More VIBLSD1-S5-S12-SIP Suppliers

Select All

  • VIB0002TFJ

  • Vendor: VIC Qty: ?162 Note: closeout  Adddate: 2024-03-29
  • Inquire Now
  • USA IC LTD. (ASIA)   China
    Contact: Mr.Martin Qiu
    Tel: 86-755-2394-2008
    Fax: 86-755-2394-2068
    (149)

About

PDF/DataSheet Download

Datasheet:

File Size: KB

Manufacturer:

Download : Click here to Download

Related PDF Download

Related Part Number

VIBLSD1-S24-S5-SIP Parameters

Technical/Catalog InformationVIBLSD1-S24-S5-SIP
VendorCUI Inc
CategoryPower Supplies
Voltage - Input22.8 ~ 25.2VDC
Output5V
Power (Watts)750mW
Number of Outputs1
1st Output5 VDC @ 150mA
2nd Output-
3rd Output-
4th Output-
TypeIsolated
Mounting TypeThrough Hole
Packaging-
Package / Case6-SIP Module (4 Leads)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names VIBLSD1 S24 S5 SIP
VIBLSD1S24S5SIP
102 1437 ND
1021437ND
102-1437

VIBLSD1-S5-S12-DIP Parameters

Technical/Catalog InformationVIBLSD1-S5-S12-DIP
VendorCUI Inc
CategoryPower Supplies
Voltage - Input4.75 ~ 5.25V
Output12V
Power (Watts)1W
Number of Outputs1
1st Output12 VDC @ 83mA
2nd Output-
3rd Output-
4th Output-
TypeIsolated
Mounting TypeThrough Hole
Packaging-
Package / Case14-DIP
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names VIBLSD1 S5 S12 DIP
VIBLSD1S5S12DIP
102 1441 ND
1021441ND
102-1441

VIBLSD1-S5-S12-SIP Parameters

Technical/Catalog InformationVIBLSD1-S5-S12-SIP
VendorCUI Inc
CategoryPower Supplies
Voltage - Input4.75 ~ 5.25V
Output12V
Power (Watts)1W
Number of Outputs1
1st Output12 VDC @ 83mA
2nd Output-
3rd Output-
4th Output-
TypeIsolated
Mounting TypeThrough Hole
Packaging-
Package / Case6-SIP Module (4 Leads)
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names VIBLSD1 S5 S12 SIP
VIBLSD1S5S12SIP
102 1432 ND
1021432ND
102-1432

VIBLSD1-S5-S12-SIP General Description

Designed to convert fixed voltages into an isolated regulated voltage, the VIBLSD1-SIP series is well suited for providing boardmount local supplies in a wide range of applications, including mixed analog/digital circuits, test & measurement equip., process/machine controls, datacom/ telecom fields, etc...

VIBLSD1-S5-S12-SIP Features

`Isolated 1 W output
`Regulated
`High efficiency to 79%
`Single voltage output
`Small footprint
`SIP package style
`Industry standard pinout
`UL94-V0 package
`No heatsink required
`1K Vdc isolation
`Temperature range: -40~+85
`No external component required
`Low cost

VIBLSD1-S5-S12-SIP Typical Application

- Input filtering To reduce the reflected ripple current and minimize EMI, especially when the converter input is more than 2" away from the DC source, it is recommended to connect a low ESR electrolytic capacitor between Vin and Gnd. The values suggested are as shown in Table 1. If additional filtering is required, the capacitance may be increased, or expanded to an LC network as shown in Figure 1.
