VIPER100ASP, VIPER100ASP-E, VIPER100BSP

MFG:STMicroelectronics Category:Integrated Circuits (ICs) Package Cooled:00+ D/C:129

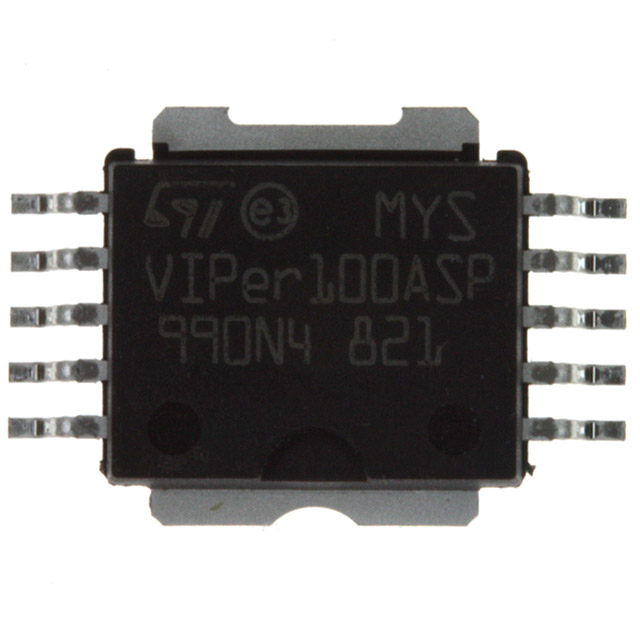

Part Number: VIPER100ASP-E

Category: Integrated Circuits (ICs)

MFG: STMicroelectronics

Package Cooled: 00+

D/C: 129

Description: IC SWIT PWM SMPS CM POWERSO10

Price Break

1
10
100
250
500
1000
2500

Unit Price

4.93000
4.59000
3.57000
2.89000
2.46500
2.29500
2.17600

Extended Price

4.93
45.90
357.00
722.50
1232.50
2295.00
5440.00

(All prices are in USD)Prices for reference only

VIPER100ASP Supplier

VIPER100ASP

MFG: ST Package Cooled: SOP10内存 D/C: N/A Qty: 100

Aslan Internatinal Trade Co., Limited China

Contact: Mr.David King

Tel: 86-754-84420881

Adddate: 2010-03-19

VIPER100ASP

MFG: ST Package Cooled: 99+ D/C: SOP Qty: 16

Shenzhen jiahuidz Electronics Co. China

Contact: Mr.zechaolin

Tel: 86-0755-83294488

Adddate: 2010-03-19

VIPER100ASP

Package Cooled: 365 Qty: SMD

HK HUAYI TRADE DEVELOPMENT LIMITED China

Contact: Ms.Kristy

Tel: 86-0755-83259720/83980925

Adddate: 2010-03-19

VIPER100ASP

Package Cooled: 365 Qty: SMD

Aino Electronics (HK) Ltd. China

Contact: Mr.jianxu

Tel: 86-755-33068161/33068162

Adddate: 2010-03-19

VIPER100ASP

MFG: ST Package Cooled: 365 D/C: 01+ Qty: SMD

Aino Electronics (HK) Ltd. China

Contact: Mr.jianxu

Tel: 86-755-33068161/33068162

Adddate: 2010-03-19

VIPER100ASP

MFG: ST D/C: 09+ Qty: 120

Golden Parts Technology Co.,Ltd China

Contact: Ms.Lisa Feng

Tel: 86-755-83954357/82546251

Adddate: 2010-03-19

VIPER100ASP

MFG: ST Package Cooled: SOP D/C: 09+ Qty: 25463 Note: IC AGENT/Email to Jacky@ic-industry38.com

European Union IC Industry Co. China

Contact: Mr. Jackylin

Tel: 0086-+852-95613592

Adddate: 2010-03-19

VIPER100ASP

Qty: 388

TACT (H.K.) Century Co., Limited China

Contact: Mr.Neo

Tel: 0086-0755-83014280

Adddate: 2010-03-19

About VIPer100ASP

PDF/DataSheet Download

Datasheet: VIPer100ASP

File Size: 176346 KB

Manufacturer: STMICROELECTRONICS [STMicroelectronics]

Download : Click here to Download

Related PDF Download

VIPER100
File Size: 176346 KB

VIPer100A
File Size: 176346 KB

VIPer100/SP
File Size: 176346 KB

VIP
File Size: 43815 KB

VIP12A
File Size: 32560 KB

Related Part Number

VIP50 - 2000 -

VIP640F - TO-220F -

VIPD43G053 STMicroelectronics - -

VIPER100A STMicroelectronics - DIP-8 - 06+

VIPER100ASP STMicroelectronics - 00+ - 129

VIPER100-E STMicroelectronics - 7850 - ST

VIPER12A STMicroelectronics - 09+ - 50

VIPER12A-E STMicroelectronics - DIP-8 - 05+

VIPER12ASTR-E STMicroelectronics - 1500 -

VIPER20 STMicroelectronics - DIP-8 - 04+

VIPER20A-22-E STMicroelectronics - 2050 -

VIPER20ASP-E STMicroelectronics - 7850 - ST

VIPER22 1600 - -

VIPER22AD STMicroelectronics - N/A - 02+

VIPER22AS13TR STMicroelectronics (VA) - - 06+

VIPER50 STMicroelectronics - 08+ - 6200

VIPER50A STMicroelectronics - TO-220 - 04+

VIPER50ASP STMicroelectronics - -

VIPER50BSP STMicroelectronics - ＳＯＰ－１０ - 05+

VIPER50S(022Y) STMicroelectronics - TO220-5V - 00/01

VIPER100BSP Supplier

VIPER100BSP

Qty: 669

TACT (H.K.) Century Co., Limited China

Contact: Mr.Neo

Tel: 0086-0755-83014280

Adddate: 2010-03-19

VIPER100BSP

MFG: ST Package Cooled: PowerSO-10 D/C: 02+ Qty: 7 Note: Original

HongKong HongJia Electronics Co.,Ltd China

Contact: Mr.HAN

Tel: 86-755-23816313/23816303

Adddate: 2010-03-19

VIPER100BSP

MFG: ST Package Cooled: TO- D/C: 0006+ Qty: 150 Note: in stock

Jixin Technology HongKong Development Co.,Ltd China

Contact: Ms.yi

Tel: 0086-755-8254-4498

Adddate: 2010-03-19

VIPER100BSP

MFG: ST Package Cooled: SOP10 D/C: 01+ Qty: 529

Edy Electronics Trade Company China

Contact: Mr.Ben Chen

Tel: 86-755-83397258

Adddate: 2010-03-19

VIPER100BSP

MFG: STM Package Cooled: ＳＯＰ－１０ D/C: 05+ Qty: 750 Note: 原庄现货新亚洲2C006

Kejin Electronics(HK) Limited China

Contact: Ms.JoyLin

Tel: 86-755-83997989

Adddate: 2010-03-19

VIPER100BSP

MFG: ST Package Cooled: 01+ D/C: 529 Note: SOP10

shenzhen zhonggang Technologies Co,.Ltd. China

Contact: Ms.ma

Tel: 086-0755-83013178

Adddate: 2010-03-19

VIP-01033

MFG: VIP Package Cooled: PLCC Qty: 15 Note: avail

aric electronics thech China

Contact: Ms.Jean

Tel: 86-755-33972498

Adddate: 2010-03-19

About VIPer100BSP

PDF/DataSheet Download

Datasheet: VIPer100BSP

File Size: 177294 KB

Manufacturer: STMICROELECTRONICS [STMicroelectronics]

Download : Click here to Download

Related PDF Download

VIPER100
File Size: 176346 KB

VIPer100A
File Size: 176346 KB

VIPer100/SP
File Size: 176346 KB

VIP
File Size: 43815 KB

VIP12A
File Size: 32560 KB

Related Part Number

VIP-01033 TOSHIBA - BGA - 98+

VIP634F - 2000 -

VIPBR12A-ST - TO-220F -

VIPER100-22-E STMicroelectronics - -

VIPER100A-E STMicroelectronics - DIP-8 - 06+

VIPER100BSP STMicroelectronics - 00+ - 129

VIPER12 STMicroelectronics - 7850 - ST

VIPER12ADIP-E STMicroelectronics - 09+ - 50

VIPER12AS13TR STMicroelectronics - DIP-8 - 05+

VIPER20BSP STMicroelectronics - 7850 - ST

VIPER-22A 1600 - -

VIPER22ADIP-E STMicroelectronics - N/A - 02+

VIPER32 STMicroelectronics (VA) - - 06+

VIPER50-22-E STMicroelectronics - 08+ - 6200

VIPER50A-E STMicroelectronics - TO-220 - 04+

VIPER50B STMicroelectronics - -

VIPER50S STMicroelectronics - ＳＯＰ－１０ - 05+

VIPER50SSP STMicroelectronics - TO220-5V - 00/01

VIPER53SP STMicroelectronics - 7000 -

VIPER53SPTR-E STMicroelectronics (VA) - -

VIPER100ASP-E Supplier

VIPER100ASP-E

MFG: ST Package Cooled: PowerSO-10 D/C: 06+ Qty: 5000 Note: new and original stock!

Minshunxin Electronics Co.,LTD. China

Contact: Mr.Zhong

Tel: 86-755-82579485

Adddate: 2010-03-19

VIPER100ASP-E

MFG: ST Package Cooled: 7000

Anduo Components Co.,Ltd China

Contact: Ms.RebeccaMiao

Tel: 86-10-58816651/58816653

Adddate: 2010-03-19

VIPER100ASP-E

MFG: ST D/C: 06+07+pb-free Qty: 8800

WELL-SOURCE COMPONENTS China

Contact: Ms.SUSIE CHEN

Tel: 86-755-28536689

Adddate: 2010-03-19

VIPER100ASP-E

MFG: PowerSO-10 Package Cooled: 7850 D/C: ST Qty: 06+

KANSHEN (HONGKONG)INDUSTRIAL LIMITED China

Contact: Mr.JohnZhuang

Tel: 86-755-88301637

Adddate: 2010-03-19

VIP-01033

MFG: VIP Package Cooled: PLCC Qty: 15 Note: avail

aric electronics thech China

Contact: Ms.Jean

Tel: 86-755-33972498

Adddate: 2010-03-19

VIP-01033

MFG: SHARP Package Cooled: PLCC84 D/C: 07+ Qty: 500

Golden Fly Electronic Limited China

Contact: Ms.Louise Huang

Tel: 86-755-8279-9256

Adddate: 2010-03-19

VIP-01033

MFG: SHARP Package Cooled: PLCC84 D/C: 02+ Qty: 735

ZHENG KE ELECTRONICS INT.LTD China

Contact: Ms.betty

Tel: 86-0755-83214123

Adddate: 2010-03-19

About VIP

PDF/DataSheet Download

Datasheet: VIP

File Size: 43815 KB

Manufacturer: STMicroelectronics

Download : Click here to Download

Related PDF Download

VIPER100
File Size: 176346 KB

VIPer100A
File Size: 176346 KB

VIPer100/SP
File Size: 176346 KB

VIPer100A/ASP
File Size: 176346 KB

VIP12A
File Size: 32560 KB

Related Part Number

VIPER17HN STMicroelectronics - 1500 -

VIPER20-22-E STMicroelectronics - DIP-8 - 04+

VIPER20A-E STMicroelectronics - 2050 -

VIPER53A ST - DIP8 - 07+

VIPER53DIP-E STMicroelectronics - -

VIP.ER20 TOSHIBA - BGA - 98+

VIP630F - 2000 -

VIP905 - TO-220F -

VIPER100 STMicroelectronics - -

VIPER100A-22-E STMicroelectronics - DIP-8 - 06+

VIPER100ASP-E STMicroelectronics - 00+ - 129

VIPER100SP STMicroelectronics - 7850 - ST

VIPER12ADIP STMicroelectronics - 09+ - 50

VIPER12AS STMicroelectronics - DIP-8 - 05+

VIPER20B STMicroelectronics - 7850 - ST

VIPER22A 1600 - -

VIPER22ADIP STMicroelectronics - N/A - 02+

VIPER22ASTR-E STMicroelectronics (VA) - - 06+

VIPER50(022Y) STMicroelectronics - 08+ - 6200

VIPER50A-22-E STMicroelectronics - TO-220 - 04+

VIPER100ASP-E Parameters

Technical/Catalog Information	VIPER100ASP-E
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Packaging	Tube
Package / Case	PowerSO-10 Exposed Bottom Pad
Power (Watts)	82W
Voltage - Input	9 ~ 15 V
Voltage - Output	700V
Frequency Range	90 ~ 200kHz
Operating Temperature	25°C ~ 125°C
Output Isolation	Isolated
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VIPER100ASP E VIPER100ASPE 497 6790 5 ND 49767905ND 497-6790-5

VIPER100BSP General Description

VIPer100B/100BSP, made using VIPower M0 Technology, combines on the same silicon chip a state-of-the-art PWM circuit together with an optimized high voltage avalanche rugged Vertical Power MOSFET (400 V / 6 A). Typical applications cover off line power supplies with a secondary power capability of 100 W in a US mains lines configuration. It is compatible from both primary or secondary regulation loop despite using around 50% less components when compared with a discrete solution. Burst mode operation is an additional feature of this device,offering the possibility to operate in stand-by mode without extra components.

VIPER100BSP Maximum Ratings

Symbol	Parameter	Value	Unit
V_DS	Continuous Drain-Source Voltage (Tj = 25 to 125oC)	-0.3 to 400	V
I_D	Maximum Current	Internally limited	A
V_DD	Supply Voltage	0 to 15	V
V_OSC	Voltage Range Input	0 to V_DD	V
V_COMP	Voltage Range Input	0 to 5	V
I_COMP	Maximum Continuous Current	±2	mA
V_esd	Electrostatic discharge (R = 1.5 KΩ C = 100pF)	4000	V
I_D(AR)	Avalanche Drain-Source Current , Repetitive or Not-Repetitive (T_C = 100 oC, Pulse Width Limited by T_J max, d <1%)	3	A
P_tot	Power Dissipation at Tc = 25℃	82	W
T_j	Junction operating temperature	Internally Limited	℃
T_stg	Storage Temperature	-65 to 150	℃

VIPER100BSP Features

· ADJUSTABLE SWITCHING FREQUENCY UP TO 200KHZ
· CURRENT MODE CONTROL
· SOFT START AND SHUT DOWN CONTROL
· AUTOMATIC BURST MODE OPERATION IN STAND-BY CONDITION ABLE TO MEET ”BLUE ANGEL” NORM (<1W TOTAL POWER CONSUMPTION)
· INTERNALLY TRIMMED ZENER REFERENCE
· UNDERVOLTAGE LOCK-OUT WITH HYSTERESIS
· INTEGRATED START-UP SUPPLY
· AVALANCHERUGGED
· OVERTEMPERATUREPROTECTION
· LOW STAND-BY CURRENT
· ADJUSTABLE CURRENT LIMITATION
