VIPER20ASP-E, VIPER20B, VIPER20BSP

Table of contents:
Info of VIPER20ASP-E
Info of VIPER20B
Info of VIPER20BSP

VIPER20ASP-E, VIPER20B, VIPER20BSP Selling Leads, Datasheet

MFG:STMicroelectronics Category:Integrated Circuits (ICs) Package Cooled:7000 D/C:06+

VIPER20ASP-E, VIPER20B, VIPER20BSP Datasheet download

Five Points

Part Number: VIPER20ASP-E

Category: Integrated Circuits (ICs)

MFG: STMicroelectronics

Package Cooled: 7000

D/C: 06+

Description: IC SWIT SMPS CM OTP POWERSO10

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

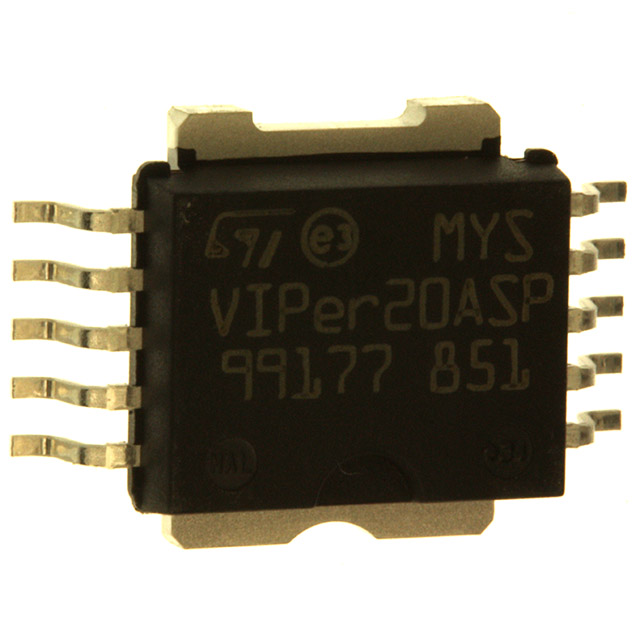

VIPER20ASP-E Parameters

Technical/Catalog Information	VIPER20ASP-E
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Packaging	Tube
Package / Case	PowerSO-10 Exposed Bottom Pad
Power (Watts)	57W
Voltage - Input	9 ~ 15 V
Voltage - Output	700V
Frequency Range	90 ~ 200kHz
Operating Temperature	25°C ~ 125°C
Output Isolation	Isolated
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VIPER20ASP E VIPER20ASPE 497 6798 5 ND 49767985ND 497-6798-5

VIPER20B General Description

VIPer20B™combines on the same silicon chip a state-of-the-art PWM circuit together with an optimized high voltage avalanche rugged Vertical Power MOSFET (400V 1.3A).

Typical applications cover off line power supplies with a secondary max power capability of 30W. It is compatible from both primary or secondary regulation loop despite using around 50% less components when compared with a discrete solution. Burst mode operation is an additional feature of this device, offering the possibility to operate in stand-by mode without extra components.

VIPER20B Maximum Ratings

Symbol	Parameter	Value	Unit
V_DS	Continuous Drain-Source Voltage (Tj = 25 to 125oC)	-0.3 to 400	V
I_D	Maximum Current	Internally limited	A
V_DD	Supply Voltage	0 to 15	V
V_OSC	Voltage Range Input	0 to V_DD	V
V_COMP	Voltage Range Input	0 to 5	V
I_COMP	Maximum Continuous Current	±2	mA
V_esd	Electrostatic discharge (R = 1.5 K C = 100pF)	2000	V
I_D(AR)	Avalanche Drain-Source Current , Repetitive or Not-Repetitive (T_C = 100 oC, Pulse Width Limited by T_J max, d <1%)	TBD	A
P_tot	Power Dissipation at Tc = 25	57	W
T_j	Junction operating temperature	-40 to 140
T_stg	Storage Temperature	-65 to 150

VIPER20B Features

ADJUSTABLE SWITCHING FREQUENCY UP TO 200KHZ
CURRENT MODE CONTROL
SOFT START AND SHUT DOWN CONTROL
AUTOMATIC BURST MODE OPERATION IN STAND-BY CONDITION ABLE TO MEET "BLUE ANGEL" NORM (1W TOTAL POWER CONSUMPTION)
INTERNALLY TRIMMED ZENER REFERENCE
UNDERVOLTAGE LOCK-OUT WITH HYSTERESIS
INTEGRATED START-UP SUPPLY
AVALANCHERUGGED
OVERTEMPERATUREPROTECTION
LOW STAND-BY CURRENT
ADJUSTABLE CURRENT LIMITATION

VIPER20BSP General Description

VIPER20BSP Maximum Ratings

Symbol	Parameter	Value	Unit
V_DS	Continuous Drain-Source Voltage (Tj = 25 to 125oC)	-0.3 to 400	V
I_D	Maximum Current	Internally limited	A
V_DD	Supply Voltage	0 to 15	V
V_OSC	Voltage Range Input	0 to V_DD	V
V_COMP	Voltage Range Input	0 to 5	V
I_COMP	Maximum Continuous Current	±2	mA
V_esd	Electrostatic discharge (R = 1.5 K C = 100pF)	2000	V
I_D(AR)	Avalanche Drain-Source Current , Repetitive or Not-Repetitive (T_C = 100 oC, Pulse Width Limited by T_J max, d <1%)	TBD	A
P_tot	Power Dissipation at Tc = 25	57	W
T_j	Junction operating temperature	-40 to 140
T_stg	Storage Temperature	-65 to 150

VIPER20BSP Features
