MFG:STMicroelectronics Category:Integrated Circuits (ICs) Package Cooled:www.dayue-hk.com D/C:09+ ROHS
VNQ860SP, VNR104C11S-INV, VNR10C209 Datasheet download
Category: Integrated Circuits (ICs)
MFG: STMicroelectronics
Package Cooled: www.dayue-hk.com
D/C: 09+ ROHS
Description: IC DRIVER 4CHAN HISIDE 10PWRSOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download

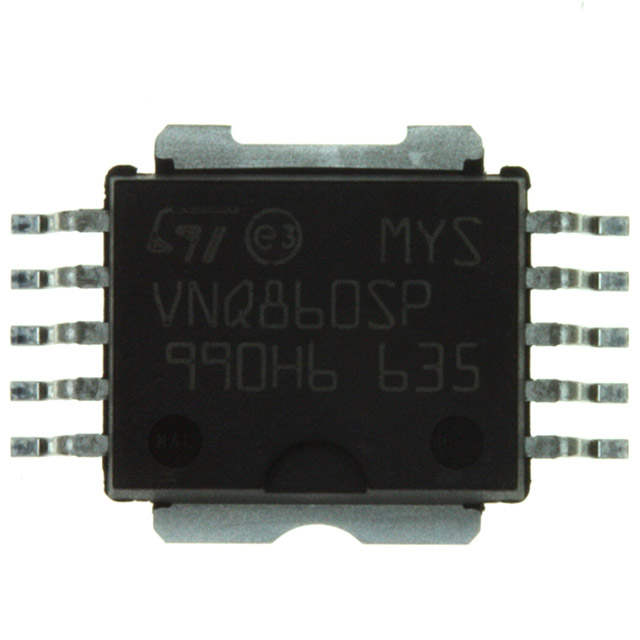

Datasheet: VNQ860SP
File Size: 227273 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | VNQ860SP |
| Vendor | STMicroelectronics |
| Category | Integrated Circuits (ICs) |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Mounting Type | Surface Mount |
| Type | High Side |
| Voltage - Supply | 5.5 V ~ 36 V |
| On-State Resistance | 270 mOhm |
| Current - Output / Channel | 250mA |
| Current - Peak Output | 700mA |
| Packaging | Tube |
| Input Type | Non-Inverting |
| Number of Outputs | 4 |
| Operating Temperature | -40°C ~ 150°C |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | VNQ860SP VNQ860SP 497 4502 5 ND 49745025ND 497-4502-5 |
The VNQ860, VNQ860SP are monolithic devices made using| STMicroelectronics VIPower M0-3 Technology, intended for driving any kind load with one side connected to ground. Active current limitation combined with thermal shutdown and automatic restart protect the device against overload. Device automatically turns off in case of ground pin disconnection. This device is especially suitable for industrial applications in norms conformity with IEC1131 (Programmable Controllers International Standard).
| Symbol | Parameter | Value | Unit | ||
|
SO-20 |
PowerSO-10 | ||||
|
VCC |
DC Supply voltage |
41 | V | ||
|
-VCC |
Reverse DC supply voltage |
-0.3 | V | ||
|
- IGND |
DC reverse ground pin current |
-200 |
mA | ||
|
IOUT |
DC Output current |
Internally Limited | A | ||
|
- IOUT |
Reverse DC output current |
-15 | A | ||
|
IIN |
DC Input current |
+/- 10 | mA | ||
| VIN |
Input voltage range |
-3/+VCC | V | ||
| VSTAT |
DC Status voltage |
+ VCC | V | ||
| VESD |
Electrostatic discharge(R=1.5K; C=100pF) |
2000 | V | ||
|
Ptot |
Power dissipation TC=25°C |
16 |
90 |
W | |
| Tj |
Junction operating temperature |
Internally Limited | |||
| TC |
Case operating temperature |
- 40 to 150 | |||
|
Tstg |
Storage Temperature |
-55 to 150 |
| ||
