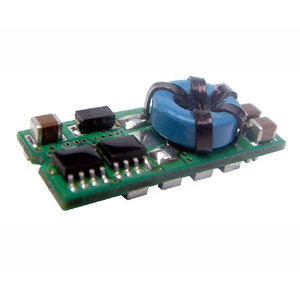

This application note describes the features and functions of V-Infinity's VPOL15A-5-SMT series of non-isolated dc-dc converters. These are highly efficient, reliable and compact, high power density, single output dc-dc converters. These "Point of Load" modules serve the needs specifically of the fixed and mobile telecommunications and computing market, employing economical distributed power architectures. The VPOL15A-5-SMT series provide precisely regulated output voltage range from 0.9V to 3.63Vdc over a wide range of input voltage (Vi=3.0 5.5Vdc) and can operate over an ambient temperature range of 40°C to +85°C. Ultra-high efficiency operation is achieved through the use of synchronous rectification and drive control techniques. The modules are fully protected against short circuit and overtemperature conditions. V-Infinity's world class automated manufacturing methods, together with an extensive testing and qualification program, ensure that all VPOL15A-5-SMT series converters are extremely reliable.
VPOL15A-5-SMT Maximum Ratings
input voltage (V): 3.0-5.5
output power (W): 49.5 (max)
main output voltage: 1.0-3.3 (tri mmable)
output current (mA): 15A
size (LxWxH): 1.30x0.53x0.36 (SMT)
VPOL15A-5-SMT Features
* industry standard pin out * high efficiency to 94% * 300 KHz switching frequency * 3.0-5.5 VDC input range * 0.9-3.63 VDC wide output range * over temperature protection * continuous short circuit protection * remote on/off * cost-efficient open frame design * UL/C-UL60950 (E222736) certified
VPOL15A-5-SMT Typical Application
1 Layout Design Challenges. 2 Convection Requirements for Cooling 3 Thermal Considerations 4 Power De-Rating Curves 5 Efficiency vs Load Curves 6 Input Capacitance at the Power Module 7 Test Set-Up 8 Remote Sense Compensation 9 VPOL15A-5-SMT Series Output Voltage Adustment. 10 Output Ripple and Noise Measurement 11 Output Capacitance 12 VPOL15A-5-SMT Reflow Profile
* industry standard pin out * high efficiency to 94% * 300 KHz switching frequency * 9.0-14 VDC wide input range * 0.75-5.0 VDC wide output range * over temperature protection * continuous short circuit protection * remote on/off * cost-efficient open frame design * UL/C-UL60950-1 (E222736) certified
VPOL16A-12-SIP Typical Application
7.1 Layout Design Challenges. 7.2 Convection Requirements for Cooling 7.3 Thermal Considerations 7.4 Power De-Rating Curves 7.5 Efficiency vs Load Curves 7.6 Input Capacitance at the Power Module 7.7 Test Set-Up 7.8 Remote Sense Compensation 7.8 VPOL16A-12-SIP Series Output Voltage Adustment. 7.9 Output Ripple and Noise Measurement 7.10 Output Capacitance 7.11 VPOL16A-12-SIP Reflow Profile
This application note describes the features and functions of V-Infinity's VPOL16A-12-SMT series of non-isolated dc-dc converters. These are highly efficient, reliable and compact, high power density, single output dc-dc converters. These "Point of Load" modules serve the needs specifically of the fixed and mobile telecommunications and computing market, employing economical distributed Power Architectures. The VPOL16A-12-SMT series provide precisely regulated output voltage range from 0.75V to 5.0Vdc over a wide range of input voltage (Vi=9.0 14Vdc) and can operate over an ambient temperature range of 40 to +85. Ultra-high efficiency operation is achieved through the use of synchronous rectification and drive control techniques. The modules are fully protected against short circuit and overtemperature conditions. V-Infinity's world class automated manufacturing methods, together with an extensive testing and qualification program, ensure that all VPOL16A-12-SMT series converters are extremely reliable.
VPOL16A-12-SMT Maximum Ratings
PARAMETER
NOTES and CONDITIONS
Device
Min.
Typical
Max.
Units
Input Voltage Continuous
ALL
0
15
Vdc
Operating Temperature See Thermal Considerations Section
ALL
-40
+85
Storage Temperature
ALL
-55
+125
VPOL16A-12-SMT Features
* industry standard pin out * high efficiency to 94% * 300 KHz switching frequency * 9.0-14 VDC wide input range * 0.75-5.0 VDC wide output range * over temperature protection * continuous short circuit protection * remote on/off * cost-efficient open frame design * UL/C-UL60950-1 (E222736) certified
VPOL16A-12-SMT Typical Application
7.1 Layout Design Challenges. 7.2 Convection Requirements for Cooling 7.3 Thermal Considerations 7.4 Power De-Rating Curves 7.5 Efficiency vs Load Curves 7.6 Input Capacitance at the Power Module 7.7 Test Set-Up 7.8 Remote Sense Compensation 7.8 VPOL16A-12-SMT Series Output Voltage Adustment. 7.9 Output Ripple and Noise Measurement 7.10 Output Capacitance 7.11 VPOL16A-12-SMT Reflow Profile
