MFG:Quatech/DPAC Technologies Category:RF and RFID Package Cooled:07+ D/C:657

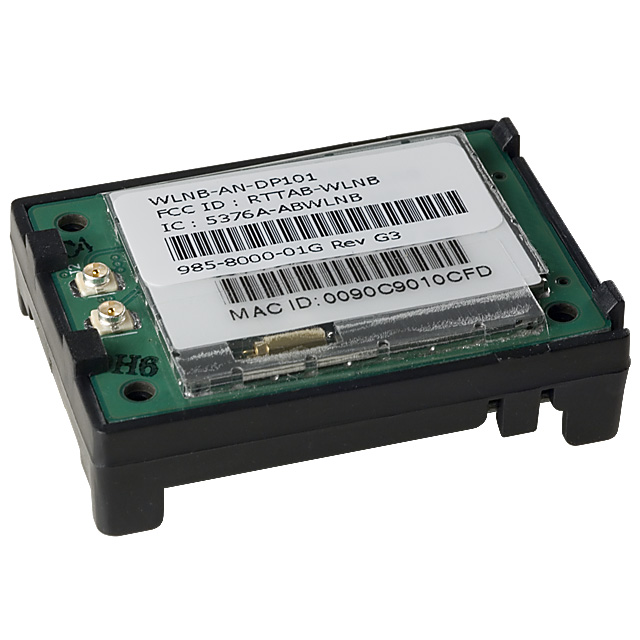

WLM8100R, WLNB-AN-DP101, WLNB-AN-DP101-G Datasheet download
Category: RF and RFID
MFG: Quatech/DPAC Technologies
Package Cooled: 07+
D/C: 657
Description: MODULE 802.11B LAN NODE
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet:
File Size: KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: WLNJG
File Size: 151062 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: WLNJG
File Size: 151062 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | WLNB-AN-DP101 |
| Vendor | Quatech/DPAC Technologies |
| Category | RF and RFID |
| Frequency | 2.4GHz |
| Data Rate - Maximum | 54Mbps |
| Modulation or Protocol | DBPSK, DQPSK, CCK |
| Applications | ISM, Military, POS |
| Power - Output | 15dBm |
| Sensitivity | -90dBm |
| Voltage - Supply | 3.3V |
| Current - Receiving | 350mA |
| Current - Transmitting | 420mA |
| Package / Case | Module |
| Operating Temperature | -40°C ~ 85°C |
| Data Interface | Connector, 36 Pin Header |
| Antenna Connector | U.FL |
| Packaging | Box |
| Memory Size | 512kB Flash, 126K SRAM |
| Drawing Number | * |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | WLNB AN DP101 WLNBANDP101 590 1010 ND 5901010ND 590-1010 |
| Technical/Catalog Information | WLNB-AN-DP101-G |
| Vendor | Quatech/DPAC Technologies |
| Category | RF and RFID |
| Frequency | 2.4GHz |
| Data Rate - Maximum | 54Mbps |
| Modulation or Protocol | DBPSK, DQPSK, CCK |
| Applications | ISM, Military, POS |
| Power - Output | 15dBm |
| Sensitivity | -90dBm |
| Voltage - Supply | 3.3V |
| Current - Receiving | 350mA |
| Current - Transmitting | 420mA |
| Package / Case | Module |
| Operating Temperature | -40°C ~ 85°C |
| Data Interface | Connector, 36 Pin Header |
| Antenna Connector | U.FL |
| Packaging | Box |
| Memory Size | 512kB Flash, 126K SRAM |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | WLNB AN DP101 G WLNBANDP101G 590 1032 ND 5901032ND 590-1032 |
