4N30, 4N30M, 4N30S

4N30, 4N30M, 4N30S Selling Leads, Datasheet

MFG:Fairchild Optoelectronics Group  Category:Isolators  Package Cooled:DIP-6  D/C:08+/09+

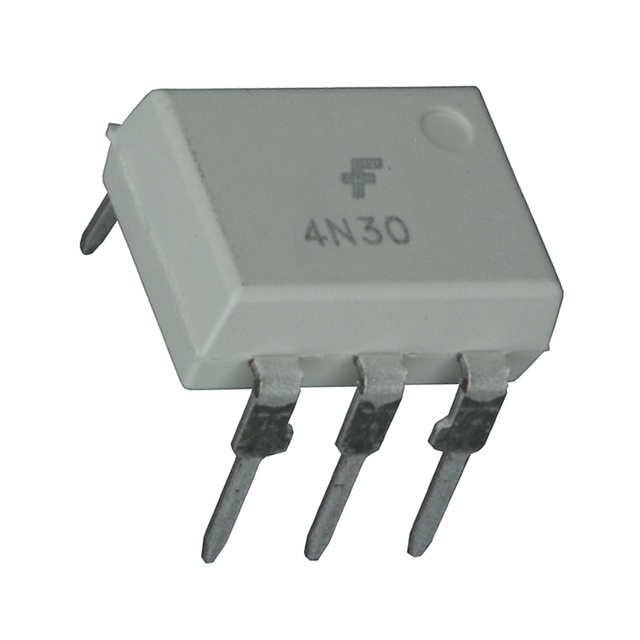

4N30M Picture

4N30, 4N30M, 4N30S Datasheet download

Five Points

Part Number: 4N30M

Category: Isolators

MFG: Fairchild Optoelectronics Group

Package Cooled: DIP-6

D/C: 08+/09+

Description: PHOTOCOUPLER DARL OUT GP 6DIP






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

4N30 Suppliers

More 4N30 Suppliers

Select All

  • 4N30

  • D/C: 00+& Qty: 7 Note: OUR OWN STOCK  Adddate: 2024-03-29
  • Inquire Now
  • JLH TECHNOLOGY COMPANY   China
    Contact: Mr.SAM LEE   MSN:lesson1992@hotmail.com
    Tel: 86-755-83740160
    Fax: 86-755-83740857
    (0)
  • 4N30

  • Pack: DIP D/C: 07+& Qty: 50 Note: NEW  Adddate: 2024-03-29
  • Inquire Now
  • Jieda Elec.   China
    Contact: Mr.Zhang   MSN:Vivian-sjelec@hotmail.com
    Tel: 0086-0754-86671950
    Fax: --
    (47)
  • 4N30

  • Vendor: Fairchild Pack: DIP D/C: 08+& Qty: 88000  Adddate: 2024-03-29
  • Inquire Now
  •   China
    Contact: Mr.linyusheng(l)   MSN:zhaoxingdz888@hotmail.com
    Tel: 86-0755-83030613
    Fax: 86-0755-82534053
    (10)

About 4N30

PDF/DataSheet Download

Datasheet: 4N30

File Size: 139772 KB

Manufacturer: TOSHIBA [Toshiba Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

4N30M Suppliers

More 4N30M Suppliers

Select All

  • 4N30

  • Vendor: Fairchild D/C: 06+& Qty: 10,000 Note: 04 OEM STK  Adddate: 2024-03-29
  • Inquire Now
  • ALCON TECHNOLOGY CO., LTD.   China
    Contact: Mr.simonzhu
    Tel: 86-755-83803182
    Fax: --
    (0)

About 4N30

PDF/DataSheet Download

Datasheet: 4N30

File Size: 139772 KB

Manufacturer: TOSHIBA [Toshiba Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

4N30S Suppliers

More 4N30S Suppliers

Select All

  • 4N30

  • Vendor: Fairchild D/C: 06+& Qty: 10,000 Note: 04 OEM STK  Adddate: 2024-03-29
  • Inquire Now
  • ALCON TECHNOLOGY CO., LTD.   China
    Contact: Mr.simonzhu
    Tel: 86-755-83803182
    Fax: --
    (0)
  • 4N30

  • D/C: 97+& Qty: 1771 Note: OUR OWN STOCK  Adddate: 2024-03-29
  • Inquire Now
  • JLH TECHNOLOGY CO.   China
    Contact: Mr.SAM LEE   MSN:lesson1992@hotmail.com
    Tel: 86-755-83740160-806
    Fax: 86-755-83740857
    (10)

About 4N30S

PDF/DataSheet Download

Datasheet: 4N30S

File Size: 447826 KB

Manufacturer: FAIRCHILD [Fairchild Semiconductor]

Download : Click here to Download

Related PDF Download

Related Part Number

4N30 General Description

  The 4N29,4N30,4N31,4N32,4N33 have a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.

4N30 Maximum Ratings

ABSOLUTE MAXIMUM RATINGS (TA = 25 Unless otherwise specified.)
Parameter Symbol Value Units
TOTAL DEVICE
Storage Temperature
TSTG -55 to +150
Operating Temperature TOPR -55 to +100
Lead Solder Temperature TSOL 260 for 10 sec
Total Device Power Dissipation @ TA= 25
Derate above 25
PD 250
3.3
mW
mW/
EMITTER
Continuous Forward Current
IF 80 mA
Reverse Voltage VR 3 V
Forward Current - Peak (300s, 2% Duty Cycle)  1F(pk) 3.0 A
LED Power Dissipation @ TA = 25 PD 150 mW
Derate above 25 2.0 mW/
DETECTOR
Collector-Emitter Breakdown Voltage
BVCEO 30 V
Collector-Base Breakdown Voltage BVCBO 30 V
Emitter-Collector Breakdown Voltage BVECO 5 V
Detector Power Dissipation @ TA = 25 PD 150
2.0
mW
mW/
Derate above 25
Continuous Collector Current IC 150 mA

4N30 Features

* High sensitivity to low input drive current
* Meets or exceeds all JEDEC Registered Specifications
* VDE 0884 approval available as a test option-add option .300. (e.g., 4N29.300)

4N30 Typical Application

* Low power logic circuits
* Telecommunications equipment
* Portable electronics
* Solid state relays
* Interfacing coupling systems of different potentials and impedances.

4N30 Connection Diagram

/uploadfile/ic-mfg/259/6f01949f-a144-4f9b-a58e-e5dfd5f08982.gif

4N30M Parameters

Technical/Catalog Information4N30M
VendorFairchild Optoelectronics Group
CategoryIsolators
Isolation Voltage5300Vrms
Input TypeDC
Output TypeTransistor with Base
Current - Output/Channel150mA
Voltage - Output30V
Vce Saturation (Max)1V
Current Transfer Ratio (Min)100% @ 10mA
Mounting TypeThrough Hole
Package / Case6-DIP
PackagingTube
Number of Circuits1 - Single
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names 4N30M
4N30M

4N30M Maximum Ratings



ProductProduct statusEco StatusPricing*Package typeLeadsPacking methodPackage Drawing
4N30MFull ProductionRoHS Compliant$0.207DIP-W6BULK TBD
4N30SMFull ProductionRoHS Compliant$0.207SMDIP-W6BULK TBD
4N30SR2MFull ProductionRoHS Compliant$0.207SMDIP-W6TAPE REEL TBD
* Fairchild 1,000 piece Budgetary Pricing
** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples
